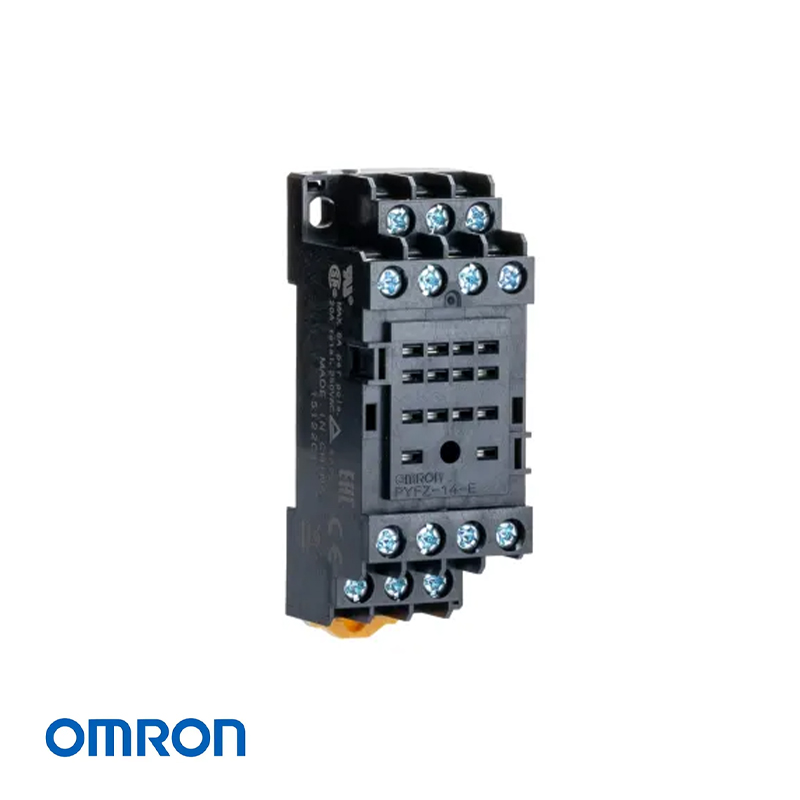

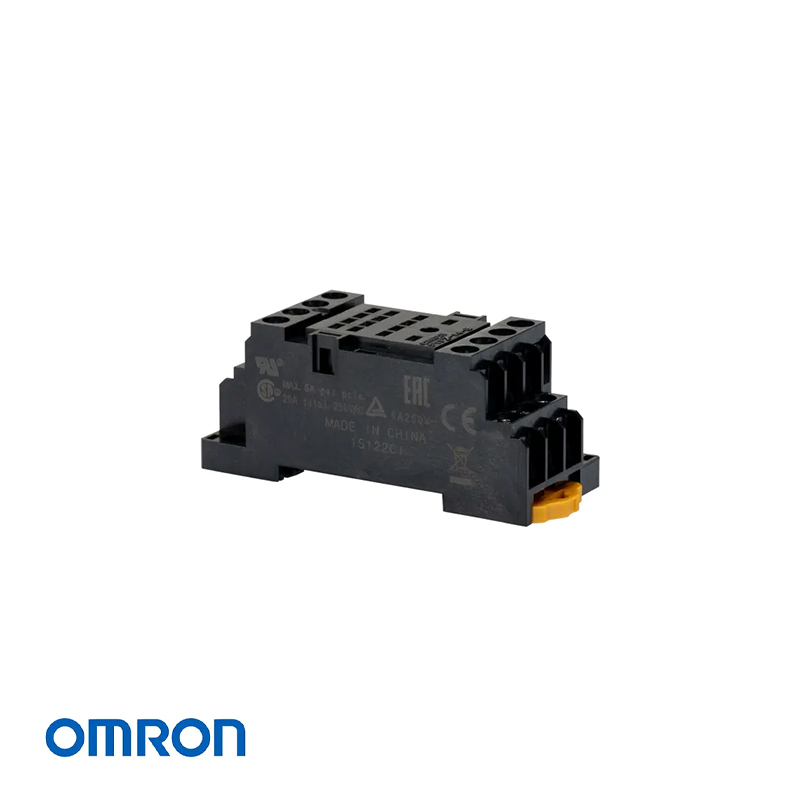

Omron PYFZ-14-E Relay Socket
Omron PYFZ-14-E Relay Socket - Image 2
Omron PYFZ-14-E Relay Socket - Image 3

Omron PYFZ-14-E Relay Socket

Manufacturer: Omron
Model: PYFZ-14-E
Relay Compatibility: For MY4 series (14-pin relays)
Mounting Type: DIN rail or screw mounting
Socket Type: 14-pin plug-in base
Terminal Type: Screw terminal with finger protection
Rated Current: 10A
Rated Voltage: 250V AC / 30V DC
Protection Rating: IP20
Material: Flame-retardant resin
Operating Temperature: -55°C to +70°C

Get a Quote

Product Description

The Omron PYFZ-14-E is a 14-pin relay socket designed for MY4 series relays, offering quick installation, high contact reliability, and secure wiring. Featuring finger protection, DIN rail or screw mounting options, and durable construction, it ensures safe and efficient operation in control panels and industrial automation systems.



Standard Features

  • Relay Compatibility: Designed for Omron MY4 and similar 14-pin relays.

  • Safety Design: Finger-safe terminals prevent accidental contact with live parts.

  • Versatile Mounting: Supports both DIN rail and screw panel installation.

  • Durable Material: Flame-retardant resin body ensures long-term reliability.

  • Secure Connection: Screw terminals provide vibration-resistant, stable wiring.

  • Maintenance Friendly: Relay can be replaced easily without rewiring.

  • Compact Design: Saves space in control cabinets and improves layout flexibility.

  • Standards Compliance: Meets CE, UL, and CSA safety requirements.

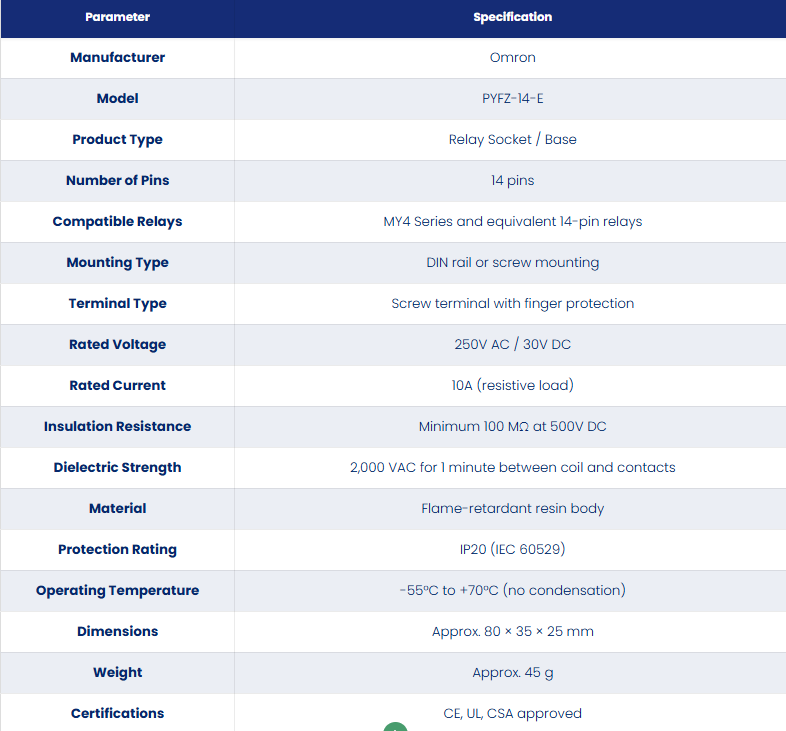

Technical Specifications

Parameter Specification
ManufacturerOmron
ModelPYFZ-14-E
Product TypeRelay Socket / Base
Number of Pins14 pins
Compatible RelaysMY4 Series and equivalent 14-pin relays
Mounting TypeDIN rail or screw mounting
Terminal TypeScrew terminal with finger protection
Rated Voltage250V AC / 30V DC
Rated Current10A (resistive load)
Insulation ResistanceMinimum 100 MΩ at 500V DC
Dielectric Strength2,000 VAC for 1 minute between coil and contacts
MaterialFlame-retardant resin body
Protection RatingIP20 (IEC 60529)
Operating Temperature-55°C to +70°C (no condensation)
DimensionsApprox. 80 × 35 × 25 mm
WeightApprox. 45 g
CertificationsCE, UL, CSA approved
