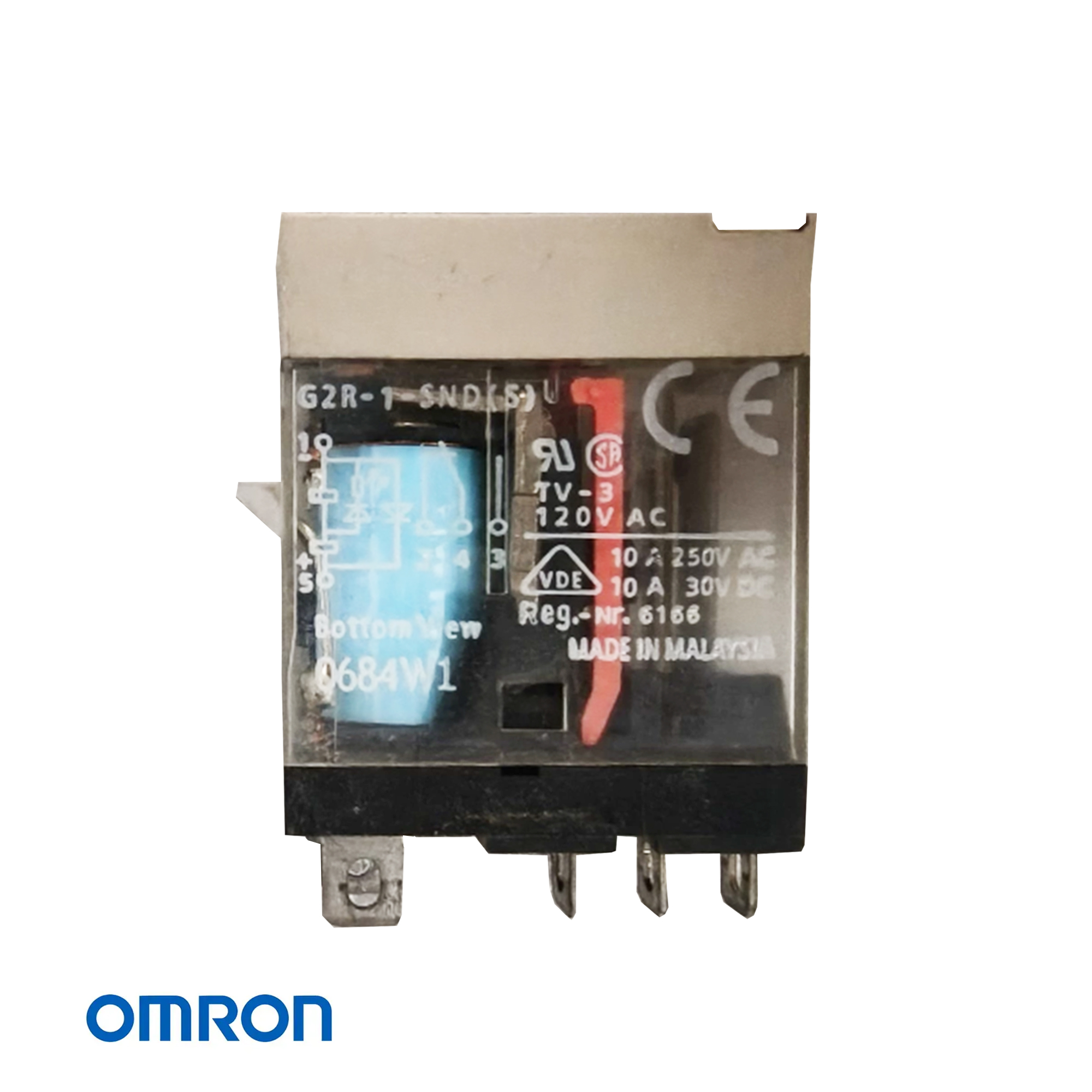

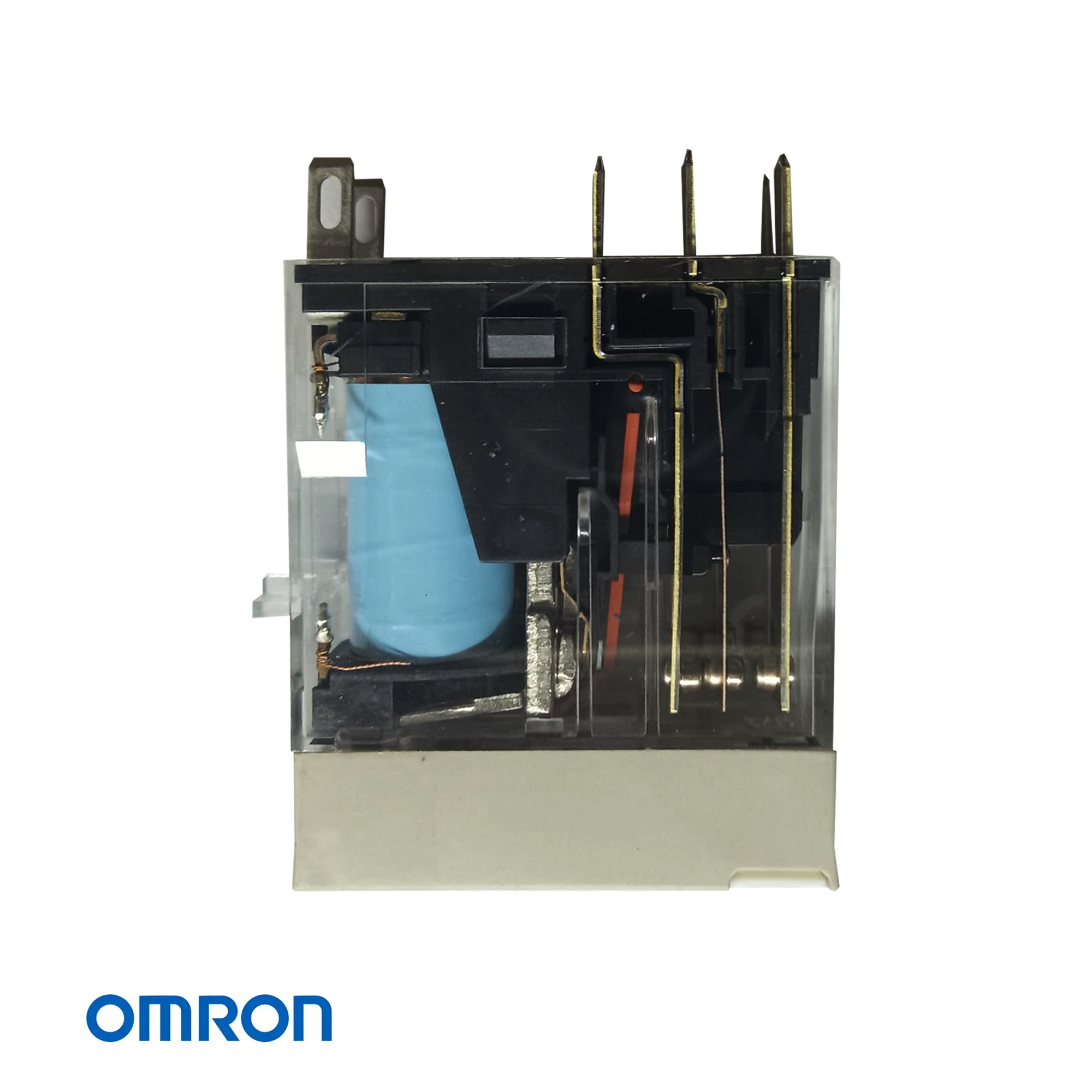

OMRON G2R-1-SN DC24 SPDT 10A General Purpose Relay

Product Description

The OMRON G2R-1-SN DC24 is a slim and space-saving general-purpose power relay featuring a 24 VDC coil and SPDT contact configuration. It is designed for reliable switching and control in industrial automation, machinery, and electrical control systems. The relay provides a 10 A rated load at 250 VAC or 30 VDC for resistive loads and incorporates LED and mechanical indicators for convenient status monitoring. Its plug-in terminal design simplifies installation with compatible sockets, while the wide -40 °C to 70 °C operating temperature range supports reliable performance in demanding industrial environments.

Standard Features

• SPDT contact configuration: Provides a single changeover contact for flexible switching and control applications.
• 24 VDC coil: Suitable for standard 24 VDC industrial automation and control circuits.
• 10 A rated load: Supports 10 A at 250 VAC or 30 VDC for resistive loads.
• LED indicator: Provides convenient visual indication of relay operating status.
• Mechanical indicator: Enables quick visual confirmation of relay operation.
• Plug-in terminal design: Supports fast and convenient installation using compatible relay sockets.
• Wide operating temperature: Suitable for ambient temperatures from -40 °C to 70 °C.

Technical Specifications
