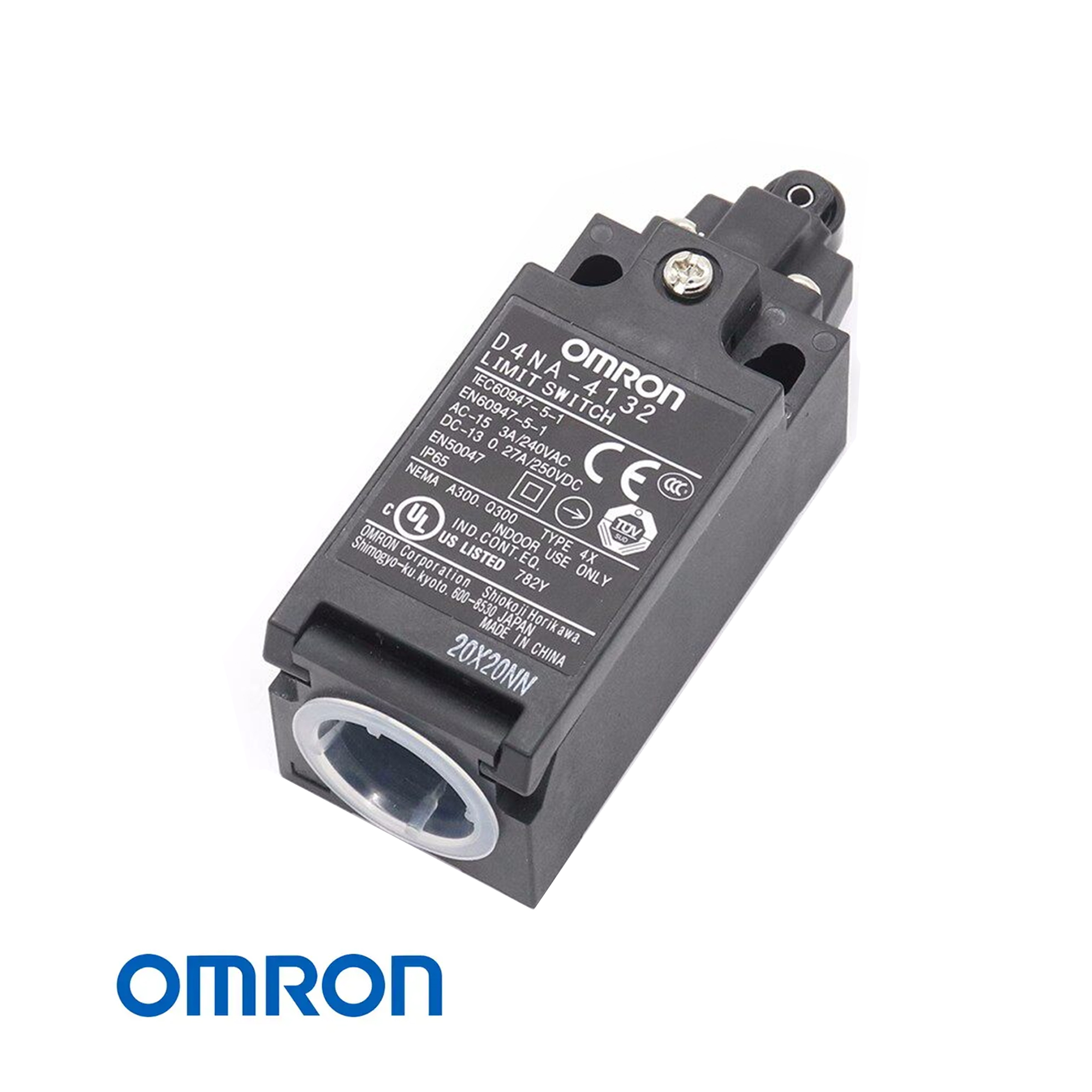

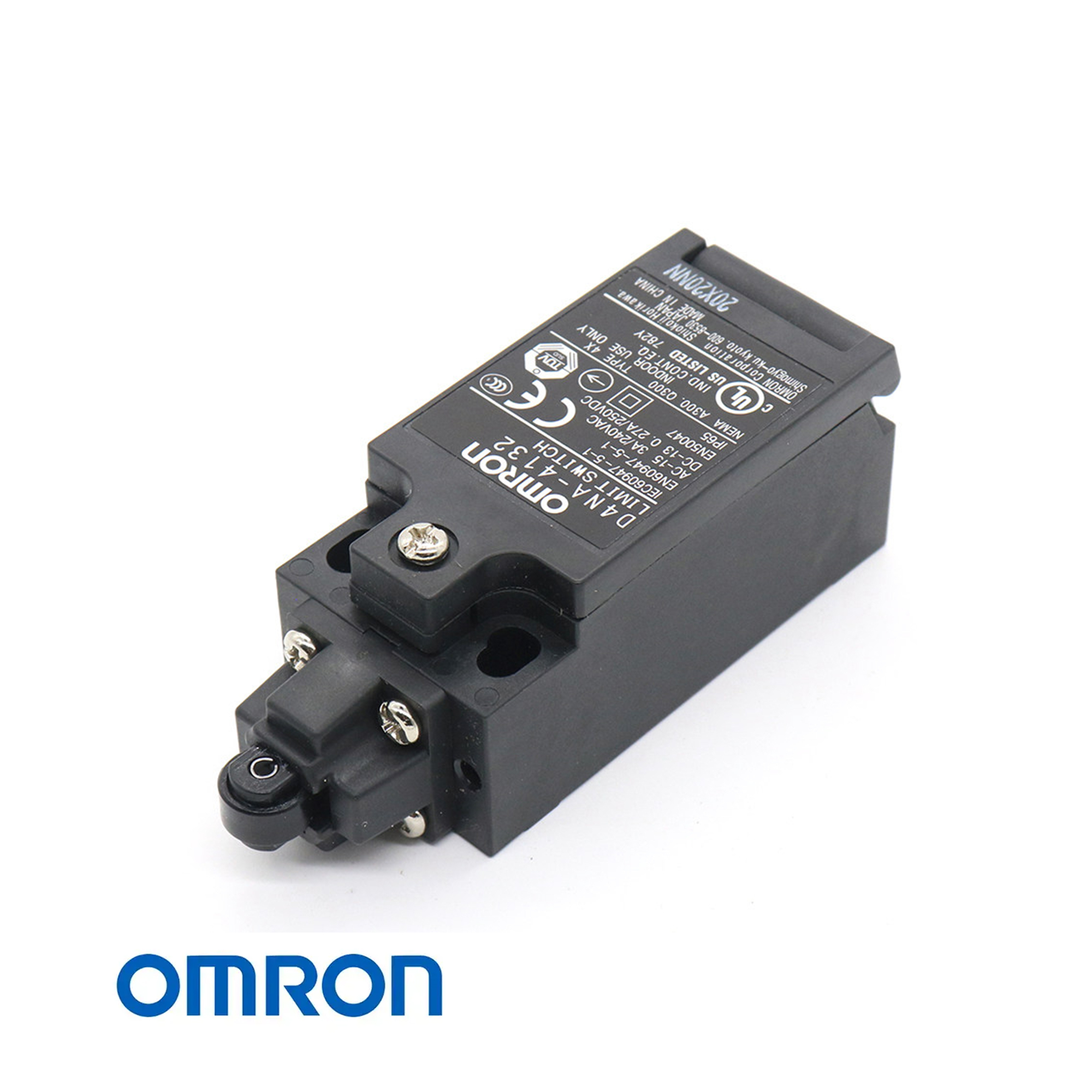

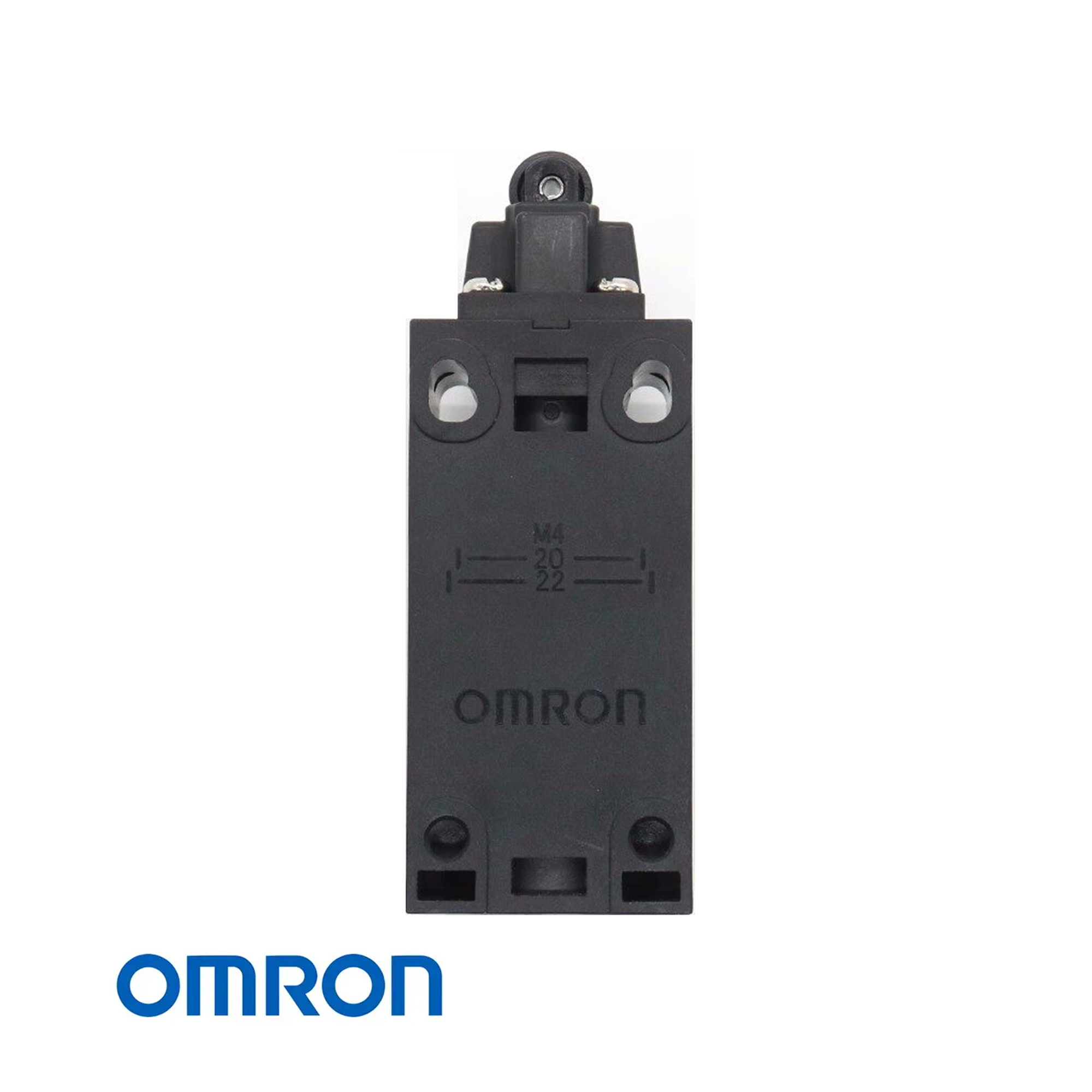

Omron D4NA-4132 Safety Limit Switch Roller Plunger 1NC+1NO IP65 300V

Product Description

The Omron D4NA-4132 is a compact safety limit switch designed for position detection and safety-related switching in industrial machinery and equipment. It features a roller plunger actuator and a snap-action 1 NC + 1 NO contact configuration, with the NC contact incorporating a certified direct-opening mechanism. Gold-clad contacts provide reliable switching for both standard loads and microloads. With an IP65 enclosure rating, 300 V rated insulation voltage, and a wide operating temperature range, the D4NA-4132 is suitable for machine guarding, position monitoring, elevator equipment, and other industrial safety applications requiring dependable mechanical detection.

Standard Features

• Roller plunger actuator: Provides reliable mechanical position detection for moving machine components.
• 1 NC + 1 NO contacts: Snap-action contact configuration supports safety monitoring and auxiliary signaling.
• Direct-opening mechanism: The NC contact provides certified direct opening for safety-related applications.
• Gold-clad contacts: Enables dependable switching with both standard electrical loads and microloads.
• IP65 protection: Provides resistance against dust and water ingress in industrial environments.
• High mechanical durability: Designed for at least 10 million mechanical operations under specified conditions.
• Wide operating temperature range: Supports operation from -30 to +70 °C without icing.
