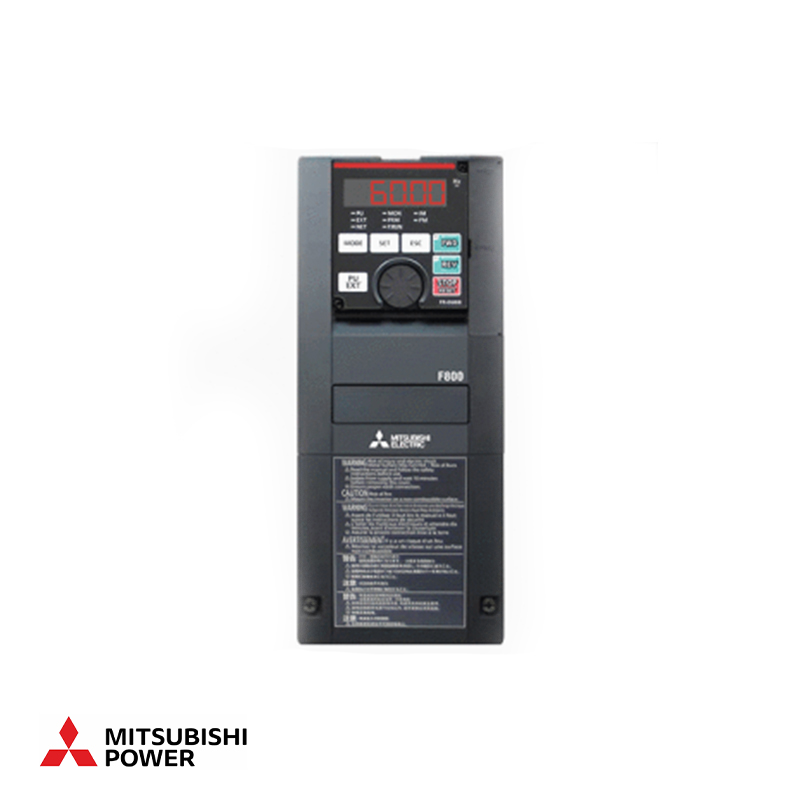

Mitsubishi FR-F800
Mitsubishi FR-F800 - Image 2

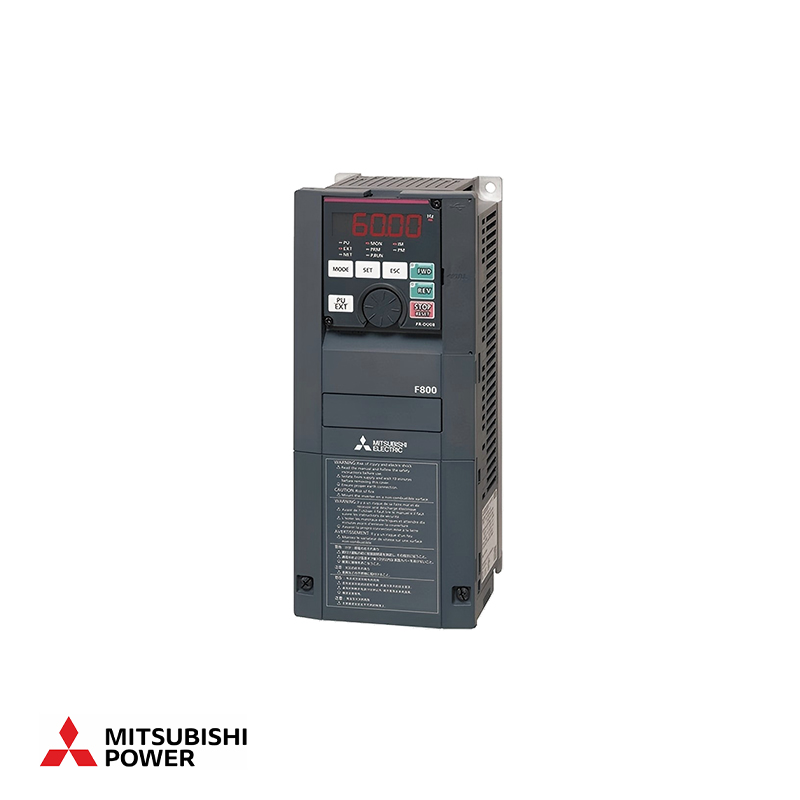

Mitsubishi FR-F800 - Image 3

Mitsubishi FR-F800

Manufacturer: Mitsubishi Electric
Model: FR-F800 Series Inverter
Power Range: 0.4–630 kW (0.5–850 hp)
Supply Voltage: 200–690 V AC (3-phase)
Output Frequency: 0.2–590 Hz

Get a Quote

Product Description

The Mitsubishi FR-F800 series inverter is a high-performance, energy-saving industrial drive solution designed for equipment such as fans, pumps, and blowers. It supports multiple control modes, including V/F control, sensorless vector control, and advanced optimal excitation control, enabling precise speed and torque regulation. The FR-F800 offers a wide power range (0.4–630 kW) and flexible voltage compatibility (200–690V AC three-phase) to meet the needs of various industrial scenarios. Its built-in energy-saving features, automatic adjustment, and fault detection capabilities not only improve equipment operating efficiency but also reduce maintenance costs. Multiple communication interfaces support remote monitoring and management, making it a reliable and efficient motor control core in modern industrial automation.

Standard Features

  • Motor Control: Supports V/F control, sensorless vector control, and advanced optimum excitation control for precise speed and torque regulation

  • Energy Saving: Built-in energy optimization and automatic torque control to reduce power consumption

  • Protection Functions: Overload, overcurrent, overvoltage, undervoltage, phase loss, ground fault, and overheating protection

  • Start/Stop Options: Multiple start/stop methods including ramp control, DC braking, and S-curve acceleration/deceleration

  • Communication: RS-485 interface with optional Ethernet, Modbus TCP, CC-Link IE Field Basic, and EtherNet/IP modules

  • Programmability: Configurable parameters, custom acceleration/deceleration profiles, PID control, and auto-tuning function

  • Diagnostics: Built-in fault logging, event history, motor monitoring, and remote troubleshooting support

  • Installation Flexibility: Supports panel mounting, flange mounting, and DIN rail mounting options

  • User Interface: LCD display with multi-language support, easy parameter setting, and real-time monitoring

  • Environmental Protection: Designed for IP00 standard, with optional enclosures for IP20 or higher protection levels

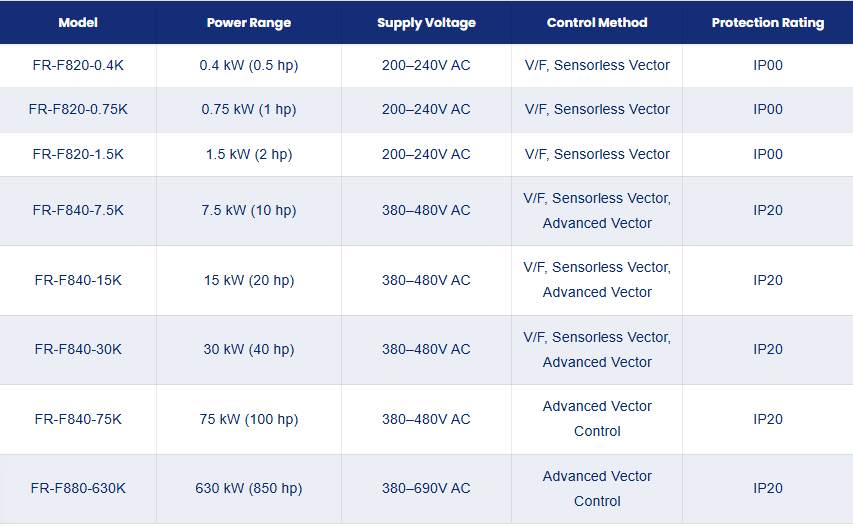

Technical Specifications



ModelPower RangeSupply VoltageControl MethodProtection Rating
FR-F820-0.4K0.4 kW (0.5 hp)200–240V ACV/F, Sensorless VectorIP00
FR-F820-0.75K0.75 kW (1 hp)200–240V ACV/F, Sensorless VectorIP00
FR-F820-1.5K1.5 kW (2 hp)200–240V ACV/F, Sensorless VectorIP00
FR-F840-7.5K7.5 kW (10 hp)380–480V ACV/F, Sensorless Vector, Advanced VectorIP20
FR-F840-15K15 kW (20 hp)380–480V ACV/F, Sensorless Vector, Advanced VectorIP20
FR-F840-30K30 kW (40 hp)380–480V ACV/F, Sensorless Vector, Advanced VectorIP20
FR-F840-75K75 kW (100 hp)380–480V ACAdvanced Vector ControlIP20
FR-F880-630K630 kW (850 hp)380–690V ACAdvanced Vector ControlIP20
