Mitsubishi BH-D10 Mini circuit breaker
Mitsubishi BH-D10 Mini circuit breaker - Image 2

Mitsubishi BH-D10 Mini circuit breaker

Manufacturer: Mitsubishi Electric
Model: BH-D10 Mini Circuit Breaker
Current Range: 0.5A-63A
Supply Voltage: 230/400VAC, 250VDC
Protection Rating: IP20
Application: Electrical circuit protection

Get a Quote

Product Description

The Mitsubishi BH-D10 Mini Circuit Breakers (MCBs) are compact, high-performance devices designed for protecting electrical circuits in residential and industrial settings. Available in 1P, 2P, 3P, and 4P configurations, they support current ratings from 0.5A to 63A with tripping characteristics B, C, and D. Operating at 230/400VAC or 250VDC, they offer breaking capacities of 4.5kA to 10kA and are suitable for control panels and distribution boards, operating reliably from -5°C to 40°C.

Standard Features

  • Current Range: 0.5A-63A

  • Voltage Compatibility: 230/400VAC, 250VDC

  • Protection: IP20

  • Breaking Capacity: 4.5kA-10kA

  • Durability: -5°C to 40°C operating range

  • Tripping Characteristics: B, C, D

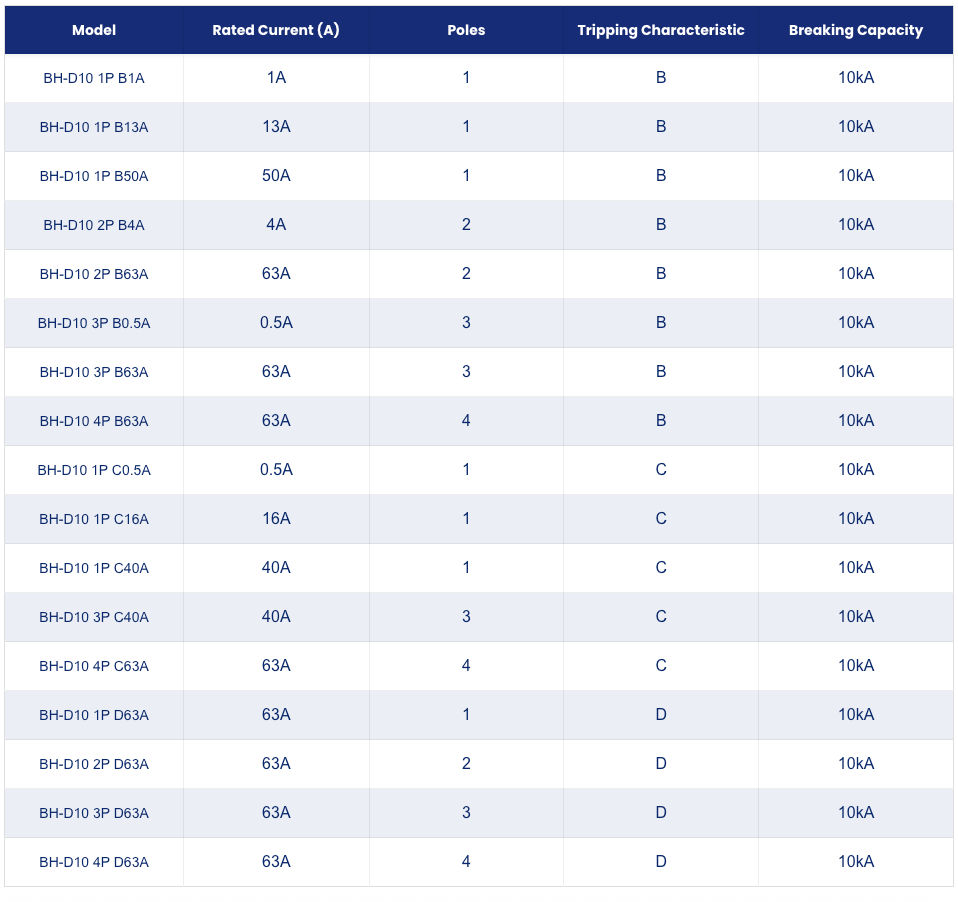

Technical Specifications

ModelRated Current (A)PolesTripping CharacteristicBreaking Capacity
BH-D10 1P B1A1A1B10kA
BH-D10 1P B13A13A1B10kA
BH-D10 1P B50A50A1B10kA
BH-D10 2P B4A4A2B10kA
BH-D10 2P B63A63A2B10kA
BH-D10 3P B0.5A0.5A3B10kA
BH-D10 3P B63A63A3B10kA
BH-D10 4P B63A63A4B10kA
BH-D10 1P C0.5A0.5A1C10kA
BH-D10 1P C16A16A1C10kA
BH-D10 1P C40A40A1C10kA
BH-D10 3P C40A40A3C10kA
BH-D10 4P C63A63A4C10kA
BH-D10 1P D63A63A1D10kA
BH-D10 2P D63A63A2D10kA
BH-D10 3P D63A63A3D10kA
BH-D10 4P D63A63A4D10kA
