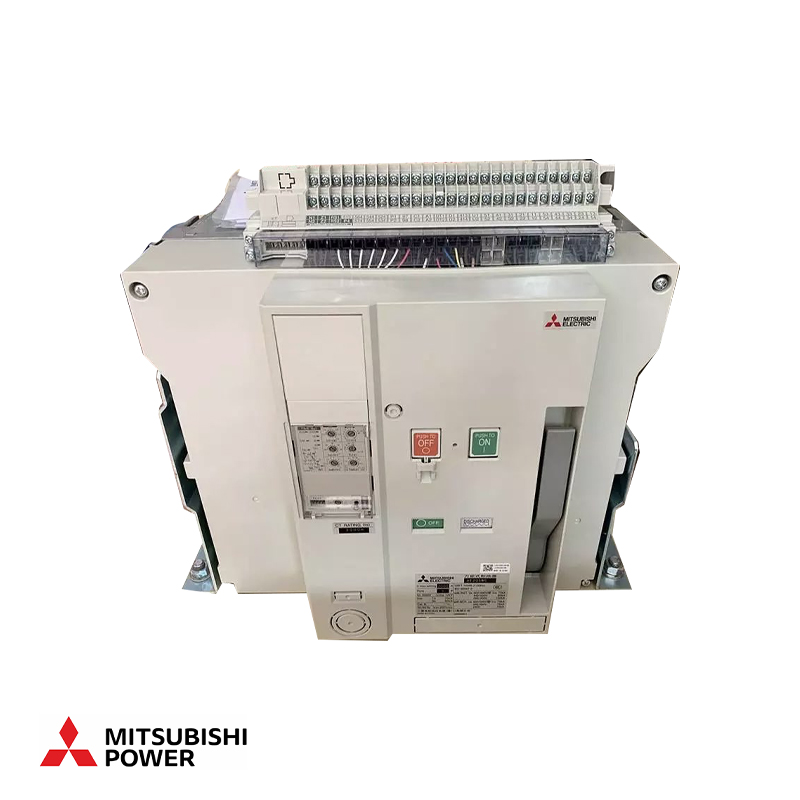

Mitsubishi AE1000-SW Air Circuit Breaker
Mitsubishi AE1000-SW Air Circuit Breaker - Image 2
Mitsubishi AE1000-SW Air Circuit Breaker - Image 3

Mitsubishi AE1000-SW Air Circuit Breaker

Manufacturer: Mitsubishi
Rated Current: 500–1000A
Rated Insulation Voltage: 1000V
Breaking Capacity: 65kA Icu/Ics at 400V AC

Get a Quote

Product Description

The Mitsubishi AE1000-SW is a high-performance air circuit breaker (ACB) from the WS (World Super) series, designed for low-voltage distribution systems. It serves as a main switch in power distribution cabinets, protecting electrical networks (up to 690V, 50Hz) against overloads, short circuits, undervoltage, and ground faults. With its modular design and advanced communication capabilities, it enhances grid safety and supports automation needs in industrial and commercial settings.

Standard Features

  • Fully modular smart trip unit for customizable protection settings
  • High breaking capacity (65kA Icu/Ics at 400V AC)
  • Compact structure with user-friendly operation
  • Multiple communication modules for grid automation
  • IP40 protection when installed in enclosures with door frames
  • Dual installation options: Fixed or withdrawable configurations

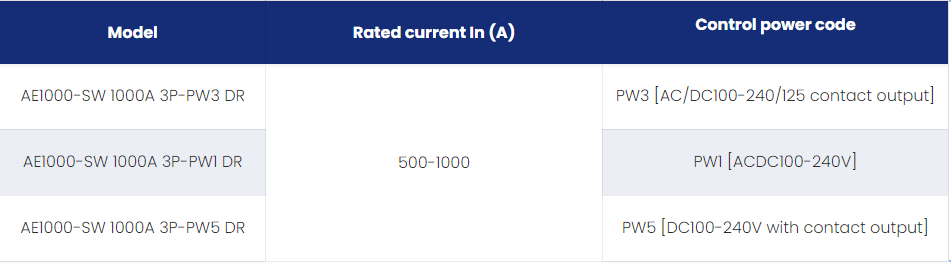

Technical Specifications

ModelRated current In (A)

Control power code

AE1000-SW 1000A 3P-PW3 DR
500-1000PW3 [AC/DC100-240/125 contact output]
AE1000-SW 1000A 3P-PW1 DRPW1 [ACDC100-240V]
AE1000-SW 1000A 3P-PW5 DRPW5 [DC100-240V with contact output]
