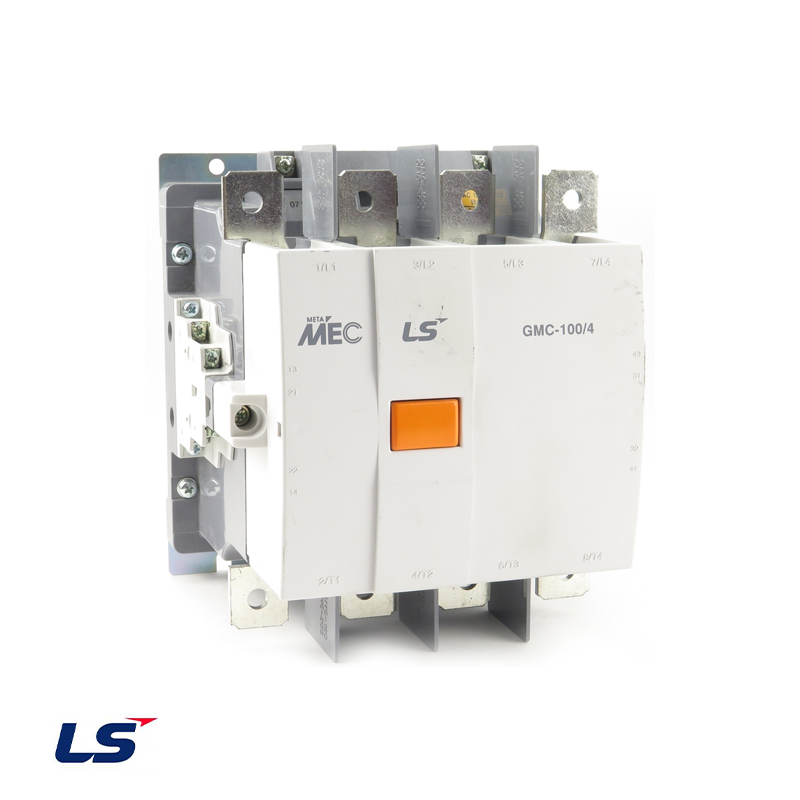

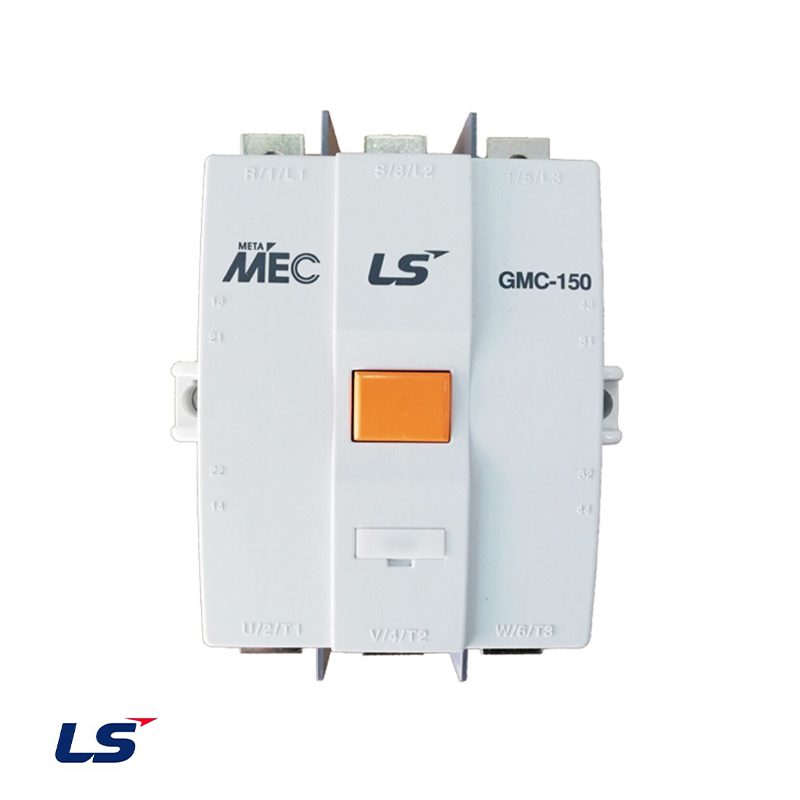

LS GMC Series Contactors AC-3 Applications, Rated Current 9A~800A
LS GMC Series Contactors AC-3 Applications, Rated Current 9A~800A - Image 2
LS GMC Series Contactors AC-3 Applications, Rated Current 9A~800A - Image 3

LS GMC Series Contactors AC-3 Applications, Rated Current 9A~800A

Manufacturer: LS Electric
Model: GMC Series Contactor
Rated Operational Current (Ie): 9 A to 800 A
Control Voltage: AC/DC 24 V, 110 V, 220 V, 380 V
Rated Insulation Voltage (Ui): up to 690 V AC

Get a Quote

Product Description

LS GMC series contactors are high-performance low-voltage electrical products launched by LS Electric, suitable for various industrial automation control systems. The products cover a rated operating current range of 9A to 800A, supporting frequent starting and control of AC-3 loads such as motors, lighting, heating and other equipment. With a maximum rated insulation voltage of 690V and a variety of AC/DC control voltage options, they can meet the needs of different application environments.

Standard Features



  • Various NO/NC contact configurations

  • Supports AC/DC control voltages from 12V to 230V

  • Rated current range from 1A to 40A

  • Rated insulation voltage of 690V

  • Modular design for easy installation

  • High mechanical endurance and reliability

  • Compact structure to save space

  • Complies with IEC international standards

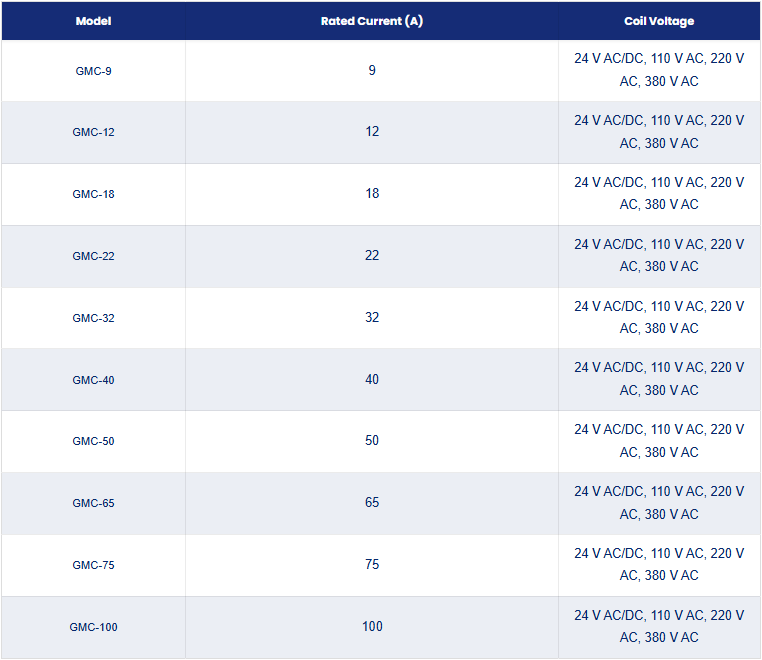

Technical Specifications



ModelRated Current (A)Coil Voltage
GMC-9924 V AC/DC, 110 V AC, 220 V AC, 380 V AC
GMC-121224 V AC/DC, 110 V AC, 220 V AC, 380 V AC
GMC-181824 V AC/DC, 110 V AC, 220 V AC, 380 V AC
GMC-222224 V AC/DC, 110 V AC, 220 V AC, 380 V AC
GMC-323224 V AC/DC, 110 V AC, 220 V AC, 380 V AC
GMC-404024 V AC/DC, 110 V AC, 220 V AC, 380 V AC
GMC-505024 V AC/DC, 110 V AC, 220 V AC, 380 V AC
GMC-656524 V AC/DC, 110 V AC, 220 V AC, 380 V AC
GMC-757524 V AC/DC, 110 V AC, 220 V AC, 380 V AC
GMC-10010024 V AC/DC, 110 V AC, 220 V AC, 380 V AC
