Inovance SV660P Servo Drives
Inovance SV660P Servo Drives - Image 2
Inovance SV660P Servo Drives - Image 3

Inovance SV660P Servo Drives

Manufacturer: Inovance
Model: SV660P Servo Drive
Power Range: 0.2–22 kW
Rated Current: 1.3–45 A
Supply Voltage: 220V AC (single/3-phase), 380V AC (3-phase)
Control Modes: Position, Speed, Torque, and Multi-axis Synchronization
Feedback Options: Incremental encoder, absolute encoder, resolver
Protection Rating: IP20

Get a Quote

Product Description

The INOVANCE SV660P servo drives deliver high-performance motion control for demanding industrial applications. With advanced algorithms, fast response, and superior stability, they ensure precise positioning, smooth operation, and energy efficiency. Designed with flexible communication interfaces and multiple feedback options, the SV660P series supports complex multi-axis synchronization and intelligent automation. Its compact design, wide power range, and comprehensive protection functions make it ideal for industries such as robotics, packaging, CNC machinery, and electronics manufacturing.

Standard Features

  • High Precision Control: 23-bit encoder support for micron-level positioning accuracy

  • Motion Profiles: Supports S-curve acceleration, electronic cam, and interpolation functions

  • Protection Functions: Overvoltage, undervoltage, short circuit, overload, overheat, and phase loss protection

  • Communication: Built-in EtherCAT, CANopen, and Modbus; optional PROFINET and EtherNet/IP

  • Flexibility: Supports single-axis and multi-axis motion with master-slave synchronization

  • Energy Saving: Regenerative braking and power optimization

  • Diagnostics: Real-time fault detection, alarm history, and monitoring tools

  • Easy Integration: Compact structure with flexible installation options

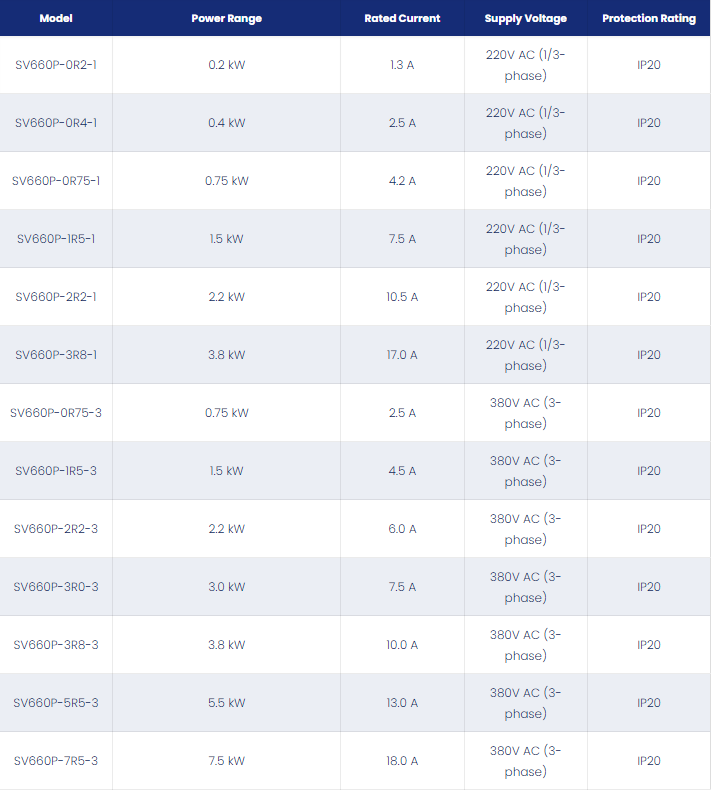

Technical Specifications

ModelPower RangeRated CurrentSupply VoltageProtection Rating
SV660P-0R2-10.2 kW1.3 A220V AC (1/3-phase)IP20
SV660P-0R4-10.4 kW2.5 A220V AC (1/3-phase)IP20
SV660P-0R75-10.75 kW4.2 A220V AC (1/3-phase)IP20
SV660P-1R5-11.5 kW7.5 A220V AC (1/3-phase)IP20
SV660P-2R2-12.2 kW10.5 A220V AC (1/3-phase)IP20
SV660P-3R8-13.8 kW17.0 A220V AC (1/3-phase)IP20
SV660P-0R75-30.75 kW2.5 A380V AC (3-phase)IP20
SV660P-1R5-31.5 kW4.5 A380V AC (3-phase)IP20
SV660P-2R2-32.2 kW6.0 A380V AC (3-phase)IP20
SV660P-3R0-33.0 kW7.5 A380V AC (3-phase)IP20
SV660P-3R8-33.8 kW10.0 A380V AC (3-phase)IP20
SV660P-5R5-35.5 kW13.0 A380V AC (3-phase)IP20
SV660P-7R5-37.5 kW18.0 A380V AC (3-phase)IP20
SV660P-11-311 kW25.0 A380V AC (3-phase)IP20
SV660P-15-315 kW32.0 A380V AC (3-phase)IP20
SV660P-18R5-318.5 kW38.0 A380V AC (3-phase)IP20
SV660P-22-322 kW45.0 A380V AC (3-phase)IP20
