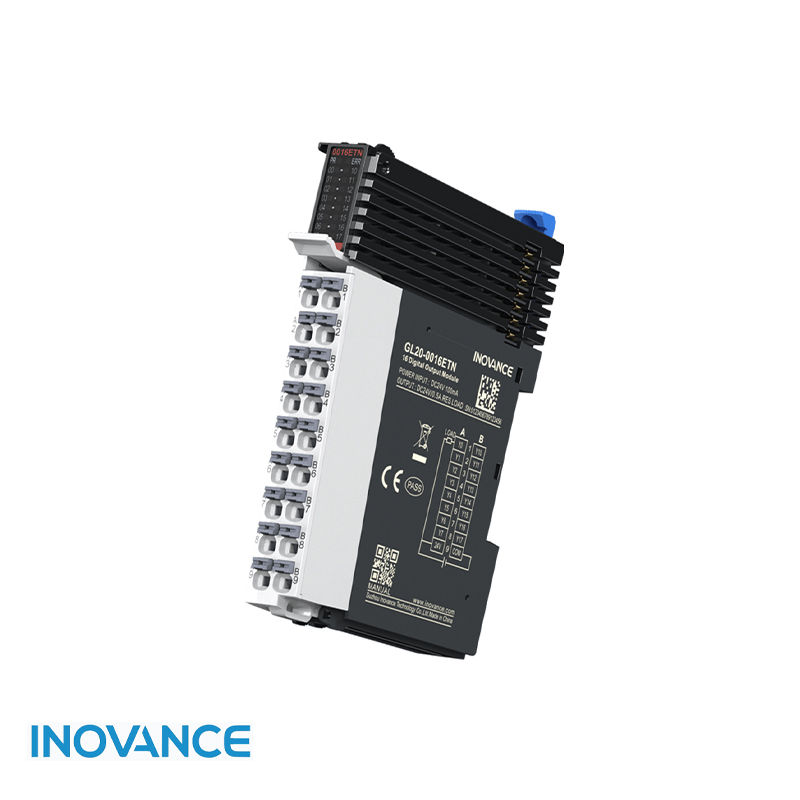

Inovance GL20 I/O Modules
Inovance GL20 I/O Modules - Image 2
Inovance GL20 I/O Modules - Image 3

Inovance GL20 I/O Modules

Manufacturer: Inovance
Series: GL20 I/O Modules
Cycle Time: Min 125 µs (EtherCAT)
Response Time: DI/DO ≤ 100 µs; AI/AO capture ≤ 62.5 µs

Get a Quote

Product Description

Inovance GL20 I/O Modules series delivers ultra-fast response, modular and tool-free wiring for local and remote I/O expansion in industrial automation. Supporting EtherCAT, PROFINET and EtherNet/IP, it operates at a minimal cycle time of just 125 µs with micro-second response times. Compact and robust by design, it’s the ideal choice for systems demanding both efficiency and reliability.

Standard Features

  • Modular I/O Expansion: Supports up to 16 modules (some couplers support 32 with firmware); optional GL20-PS2 for extra power.

  • Multi-Protocol Support: Compatible with EtherCAT, PROFINET, Ethernet/IP & I/O-Link for flexible networking.

  • High-Speed Performance: Ultra-fast cycle and response times enable precise real-time control.

  • Tool-Free Wiring: Spring-clamp terminals and removable blocks allow easy installation and fast replacement.

  • Firmware Upgrade: USB-C port on coupler enables convenient firmware updates.

  • Compact & Durable: Slim 12 mm modules save up to 66% cabinet space; gold-plated connectors ensure corrosion resistance.

  • Diagnostic LEDs: Module-level LED indicators provide instant status feedback.

  • Robust Design: CE & UL certified, wide temperature range, EMC and vibration resistant.

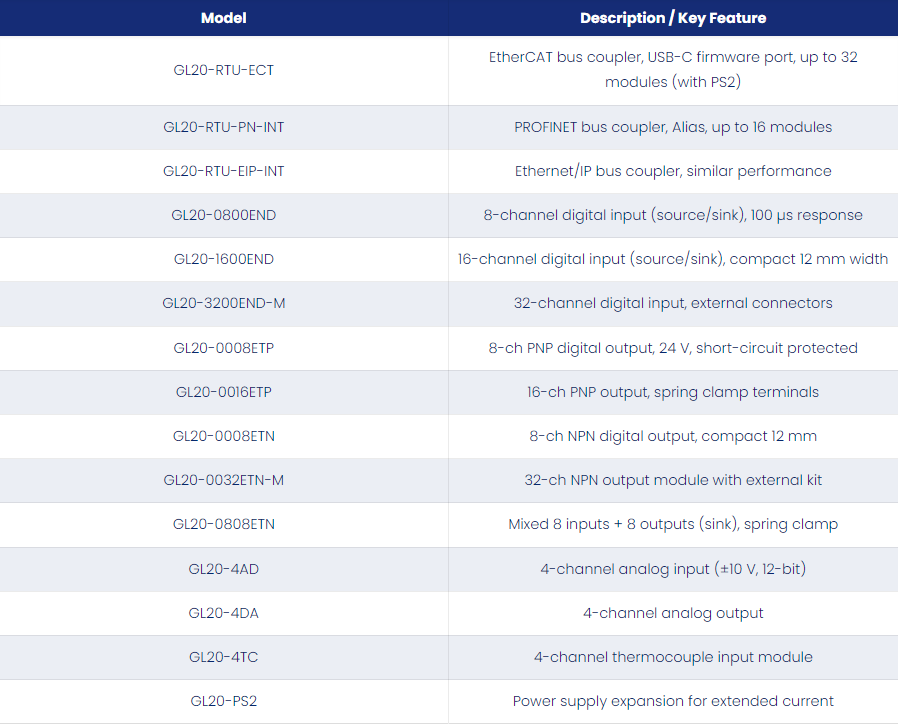

Technical Specifications

ModelDescription / Key Feature
GL20-RTU-ECTEtherCAT bus coupler, USB-C firmware port, up to 32 modules (with PS2)
GL20-RTU-PN-INTPROFINET bus coupler, Alias, up to 16 modules
GL20-RTU-EIP-INTEthernet/IP bus coupler, similar performance
GL20-0800END8-channel digital input (source/sink), 100 µs response
GL20-1600END16-channel digital input (source/sink), compact 12 mm width
GL20-3200END-M32-channel digital input, external connectors
GL20-0008ETP8-ch PNP digital output, 24 V, short-circuit protected
GL20-0016ETP16-ch PNP output, spring clamp terminals
GL20-0008ETN8-ch NPN digital output, compact 12 mm
GL20-0032ETN-M32-ch NPN output module with external kit
GL20-0808ETNMixed 8 inputs + 8 outputs (sink), spring clamp
GL20-4AD4-channel analog input (±10 V, 12-bit)
GL20-4DA4-channel analog output
GL20-4TC4-channel thermocouple input module
GL20-PS2Power supply expansion for extended current
