IFM MK5101 T-slot cylinder sensor
IFM MK5101 T-slot cylinder sensor - Image 2
IFM MK5101 T-slot cylinder sensor - Image 3

IFM MK5101 T-slot cylinder sensor

Manufacturer: IFM
Model: MK5101 T-Slot Cylinder Sensor
Sensing Principle: Magnetic (for pneumatic cylinders)
Supply Voltage: 10-30 VDC
Protection Rating: IP65 / IP67
Application: Position detection on T-slot pneumatic cylinders

Get a Quote

Product Description

The IFM MK5101 is a compact magnetic cylinder sensor designed for precise position detection on pneumatic cylinders with T-slots. It features a PNP NO output, bright LED status indication, and a robust housing that inserts directly into the T-slot without additional mounting accessories. With a 2m PUR cable and high switching frequency, it ensures reliable operation in industrial automation, operating from -25°C to +85°C.

Standard Features

  • High Reliability: Robust design with high repeatability guarantees accurate end-position detection in demanding environments.

  • Compact Design: Slim housing fits perfectly into standard T-slots for space-saving installation.

  • Secure Connection: 2m flexible PUR cable withstands vibration and movement.

  • Wide Temperature Range: Operates reliably from -25°C to +85°C for versatile pneumatic applications.

  • Easy Diagnostics: Bright yellow LED provides clear visual status indication even in bright environments.

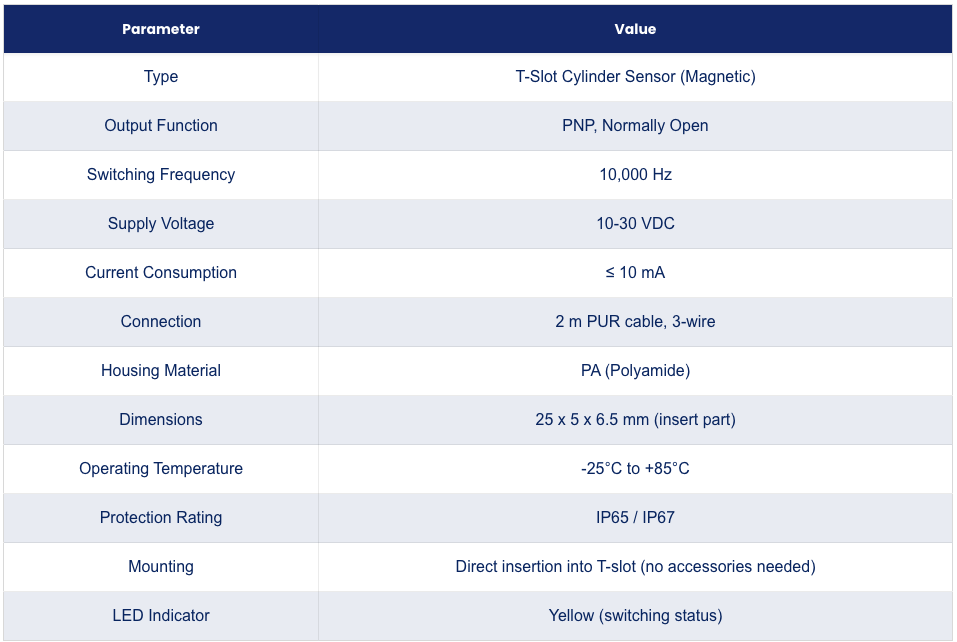

Technical Specifications

ParameterValue
TypeT-Slot Cylinder Sensor (Magnetic)
Output FunctionPNP, Normally Open
Switching Frequency10,000 Hz
Supply Voltage10-30 VDC
Current Consumption≤ 10 mA
Connection2 m PUR cable, 3-wire
Housing MaterialPA (Polyamide)
Dimensions25 x 5 x 6.5 mm (insert part)
Operating Temperature-25°C to +85°C
Protection RatingIP65 / IP67
MountingDirect insertion into T-slot (no accessories needed)
LED IndicatorYellow (switching status)
