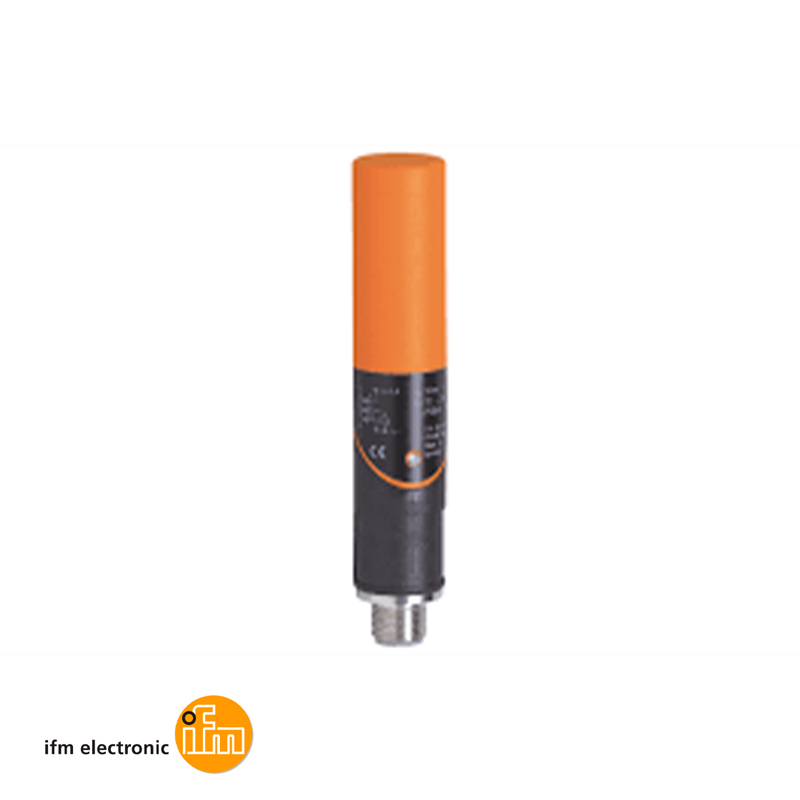

IFM Inductive position sensor IA5106
IFM Inductive position sensor IA5106 - Image 2

IFM Inductive position sensor IA5106

Manufacturer: IFM
Model: IA5106 Inductive Proximity Sensor
Sensing Distance: 10 mm
Supply Voltage: 10–36 VDC
Protection Rating: IP67
Application: General industrial position detection

Get a Quote

Product Description

The IFM IA5106 is a reliable, cylindrical inductive proximity sensor in an M18 × 1 threaded barrel, designed for non-contact detection of metallic targets in automation applications. It features a 10 mm flush sensing range, PNP NO/NC programmable output, and a robust brass housing with 2 m PVC cable. With high switching frequency and clear LED indication, it delivers precise performance in harsh environments, operating from -25°C to +80°C.

Standard Features

  • High Reliability: Nickel-plated brass housing and increased sensing range ensure long-term accuracy in demanding conditions.

  • Compact Design: M18 threaded barrel for easy installation and adjustment in tight spaces.

  • Secure Connection: 2 m flexible PVC cable provides durable wiring in fixed installations.

  • Wide Temperature Range: Operates reliably from -25°C to +80°C for versatile use.

  • User-Friendly Setup: Programmable NO/NC output and bright LED for fast commissioning and diagnostics.

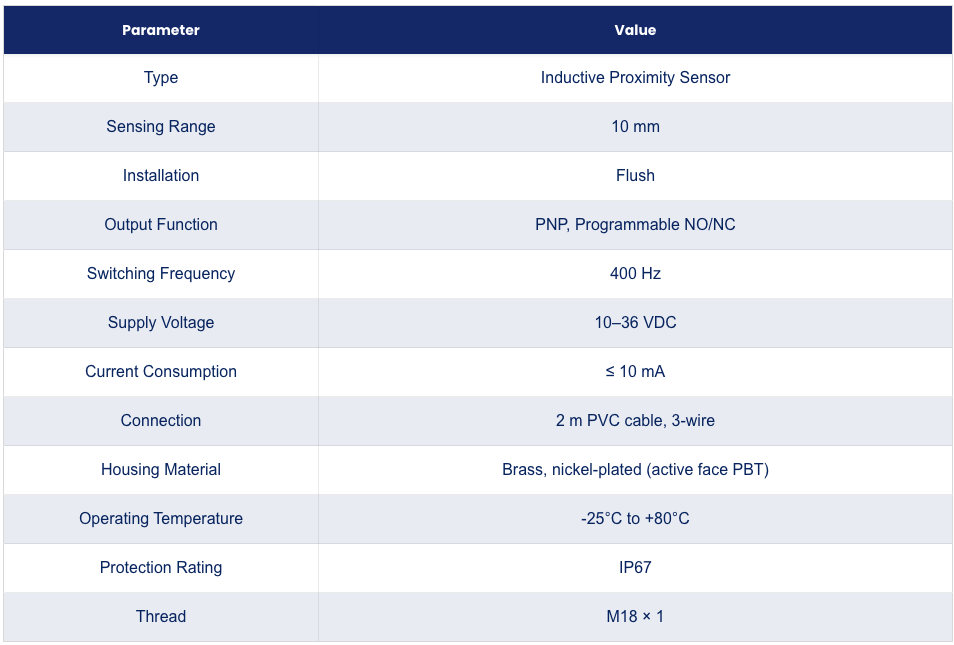

Technical Specifications

ParameterValue
TypeInductive Proximity Sensor
Sensing Range10 mm
InstallationFlush
Output FunctionPNP, Programmable NO/NC
Switching Frequency400 Hz
Supply Voltage10–36 VDC
Current Consumption≤ 10 mA
Connection2 m PVC cable, 3-wire
Housing MaterialBrass, nickel-plated (active face PBT)
Operating Temperature-25°C to +80°C
Protection RatingIP67
ThreadM18 × 1
