ifm electronic PI PI2798 Flush Pressure Sensor −12.4 to 250 mbar PNP/NPN G1 Aseptoflex Vario Supplier | SIMPLYBUY
海报

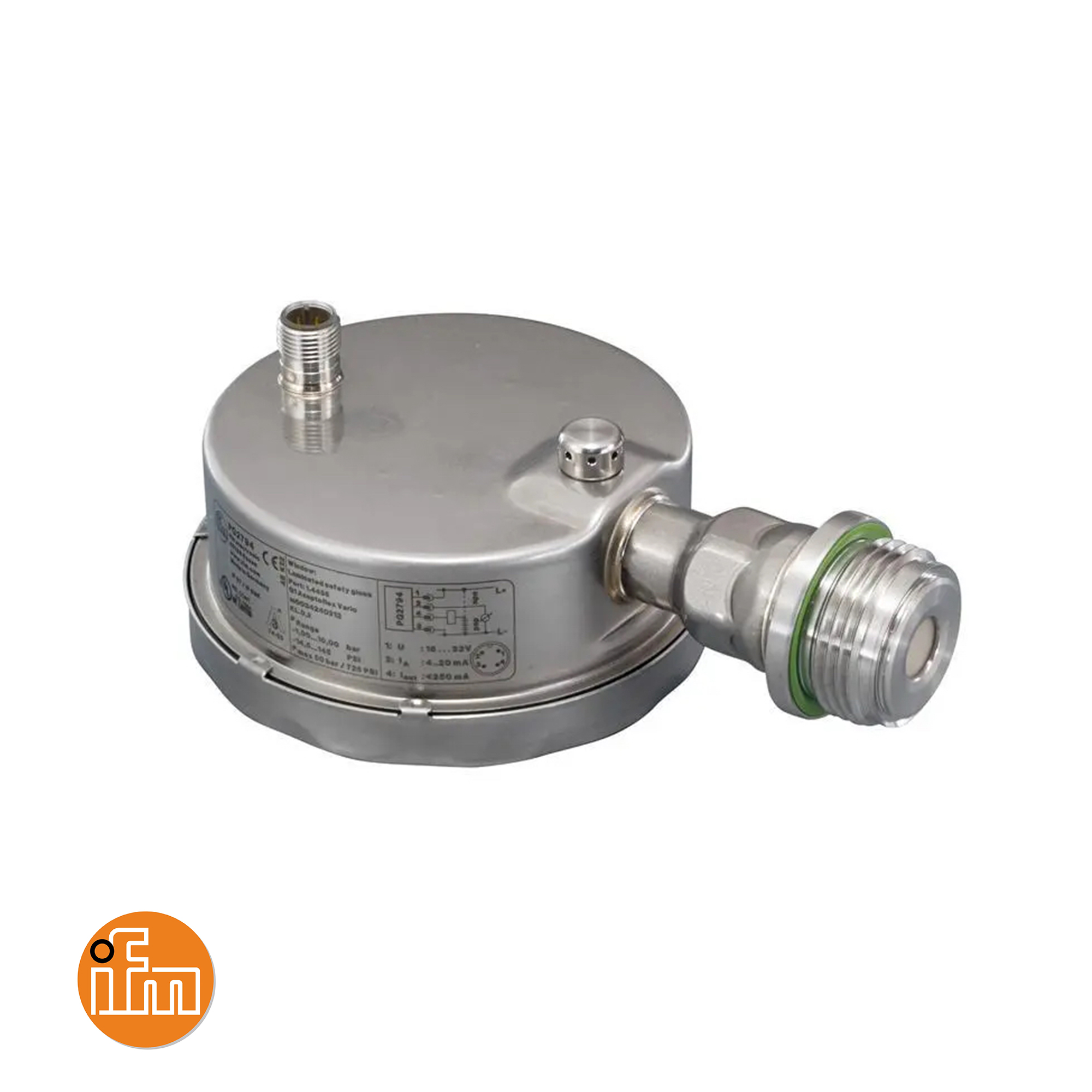

ifm electronic PI PI2798 Flush Pressure Sensor −12.4 to 250 mbar PNP/NPN G1 Aseptoflex Vario
ifm electronic PI PI2798 Flush Pressure Sensor −12.4 to 250 mbar PNP/NPN G1 Aseptoflex Vario - Image 2

ifm electronic PI PI2798 Flush Pressure Sensor −12.4 to 250 mbar PNP/NPN G1 Aseptoflex Vario

Manufacturer: ifm electronic
Model: PI2798
Series: PI
Type: Flush Pressure Sensor with Display
Measuring Range: −12.4 … 250 mbar
Output: PNP/NPN; 4 … 20 mA; IO Link
Process Connection: G1 Aseptoflex Vario

Get a Quote

Product Description

The ifm PI2798 measures low relative pressure in hygienic process applications. Its flush measuring surface and G1 Aseptoflex Vario connection support installation in process equipment. A local display provides pressure readings, while configurable switching, current and IO Link signals connect the sensor to automation systems.

Standard Features

  • Flush sensing face: Supports hygienic process installation.
  • Configurable signals: Switching or current output options.
  • Local display: Shows the measured pressure.
  • Digital communication: Supports IO Link parameter access.

Technical Specifications

ParameterValue
Manufacturerifm electronic
ModelPI2798
SeriesPI
Product TypeFlush Pressure Sensor with Display
Measuring Range−12.4 … 250 mbar
Operating Voltage18 … 32 V DC with three wires; 20 … 32 V DC with two wires
Outputs2 output channels; configurable PNP/NPN switching and 4 … 20 mA
CommunicationIO Link
Process ConnectionG1 external thread, Aseptoflex Vario
Electrical ConnectionM12 connector, 4 contacts
Medium Temperature−25 … 125 °C; 145 °C for maximum 1 hour
ProtectionIP67 / IP68 / IP69K
