HDA36150 PowerPacT J Thermal-Magnetic Circuit Breaker 150 A 3-Pole 600 VAC 14 kA

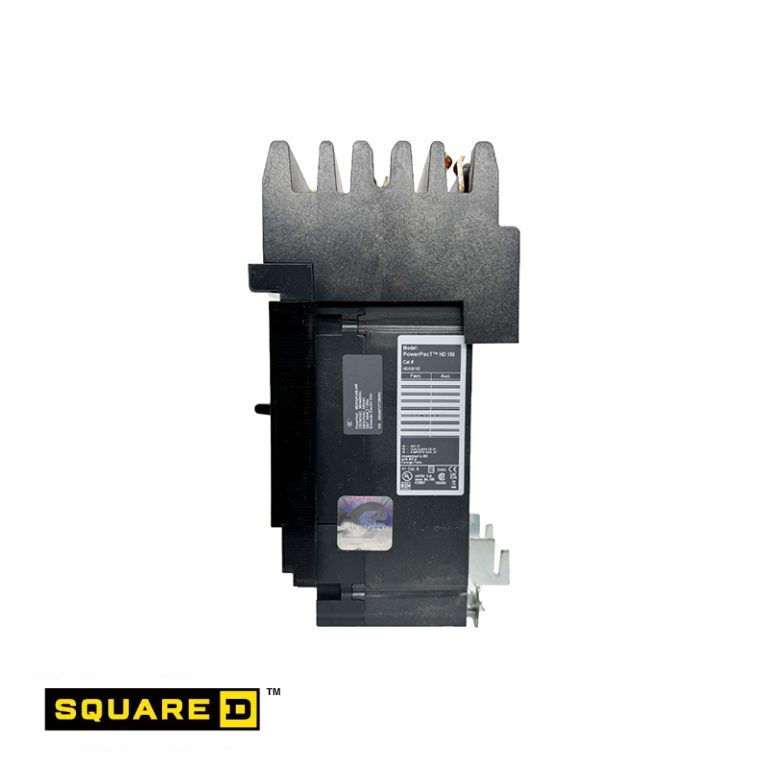

HDA36150 PowerPacT J Thermal-Magnetic Circuit Breaker 150 A 3-Pole 600 VAC 14 kA - Image 2

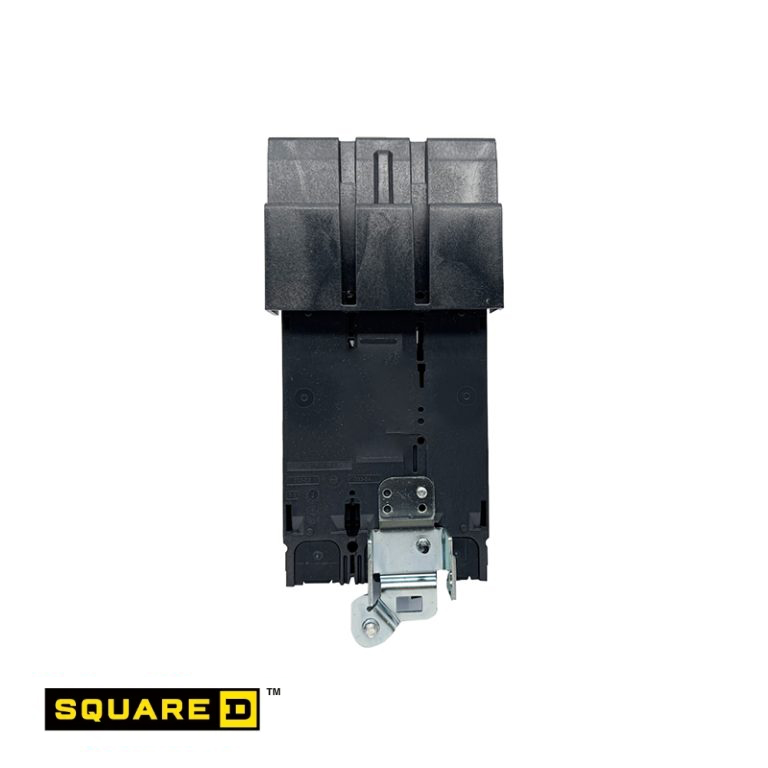

HDA36150 PowerPacT J Thermal-Magnetic Circuit Breaker 150 A 3-Pole 600 VAC 14 kA - Image 3

HDA36150 PowerPacT J Thermal-Magnetic Circuit Breaker 150 A 3-Pole 600 VAC 14 kA

Manufacturer: Schneider Electric
Model: HDA36150
Rated Current: 50-150 A
Number of Poles: 3-Pole
Voltage Rating: 600 VAC
Interrupting Capacity: 14 kA
Trip Type: Thermal-Magnetic

Get a Quote

Product Description

The HDA36150 is a PowerPacT J-frame thermal-magnetic circuit breaker designed for reliable protection in industrial and commercial electrical systems. It provides dependable overcurrent and short-circuit protection with a rated current up to 150 A, 3-pole configuration, and a voltage rating up to 600 VAC. With a 14 kA interrupting capacity, this breaker ensures secure performance across a wide range of applications. The compact design, durable construction, and consistent tripping characteristics make it suitable for panel boards, switchboards, and motor protection systems.

Standard Features

  • Overload Protection: Thermal-magnetic trip unit provides reliable protection against overload conditions

  • Short-Circuit Protection: High interrupting capacity up to 14 kA for safe fault clearing

  • Compact Design: Space-efficient J-frame construction suitable for panelboards and switchboards

  • Adjustable Trip Settings: Allows customizable protection to match application requirements

  • Wide Voltage Rating: Supports operation up to 600 VAC for industrial and commercial systems

  • Easy Installation: Available with lugs or plug-in options for simplified wiring and replacement

  • Durable Construction: Designed for long service life under demanding environmental conditions

  • Certifications: UL listed and CSA certified for industry compliance

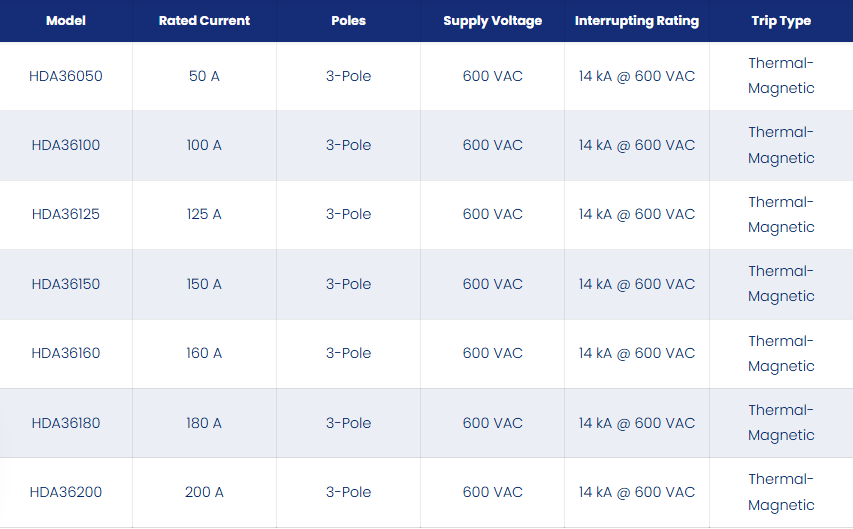

Technical Specifications

ModelRated CurrentPolesSupply VoltageInterrupting RatingTrip Type
HDA3605050 A3-Pole600 VAC14 kA @ 600 VACThermal-Magnetic
HDA36100100 A3-Pole600 VAC14 kA @ 600 VACThermal-Magnetic
HDA36125125 A3-Pole600 VAC14 kA @ 600 VACThermal-Magnetic
HDA36150150 A3-Pole600 VAC14 kA @ 600 VACThermal-Magnetic
HDA36160160 A3-Pole600 VAC14 kA @ 600 VACThermal-Magnetic
HDA36180180 A3-Pole600 VAC14 kA @ 600 VACThermal-Magnetic
HDA36200200 A3-Pole600 VAC14 kA @ 600 VACThermal-Magnetic
