FOTEK SSR-DA Series Solid State Relays

Manufacturer: FOTEK
Model: SSR-DA Series Solid State Relay
Load Current Range: 10A / 15A / 25A / 40A / 60A / 80A / 100A
Input Control Voltage: 3–32V DC
Load Voltage: 24–480V AC (Single-phase)
Dielectric Strength: 2500VAC / 4000VAC (input–output)
Operating Temperature: –30℃ to +80℃
Protection Rating: IP20

Product Description

The FOTEK SSR-DA Series Solid State Relays are designed for efficient and reliable switching of AC loads with DC input control. Featuring zero-cross switching, high dielectric strength, and compact design, the SSR-DA series provides long service life with no mechanical wear. Built-in protection features and LED operation indicators ensure safe and stable operation. These relays are widely used in heating, lighting, motor control, temperature control, and industrial automation systems, offering high reliability, low maintenance, and superior noise immunity.

Standard Features

  • Switching Type: Zero-cross switching to minimize electrical noise and inrush current

  • Protection Functions: Built-in overvoltage protection and surge suppression

  • Indicator: LED input signal indicator for operational status

  • Isolation: High dielectric strength between input and output for safety

  • Durability: Long lifespan with no mechanical contacts or wear

  • Mounting: Panel mounting with screw terminals for easy installation

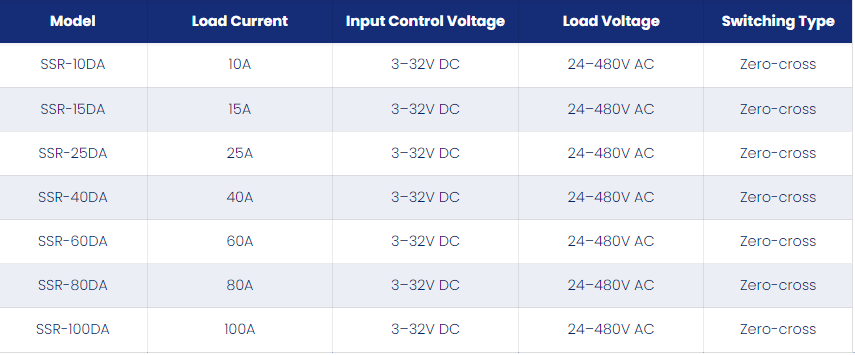

Technical Specifications

ModelLoad CurrentInput Control VoltageLoad VoltageSwitching Type
SSR-10DA10A3–32V DC24–480V ACZero-cross
SSR-15DA15A3–32V DC24–480V ACZero-cross
SSR-25DA25A3–32V DC24–480V ACZero-cross
SSR-40DA40A3–32V DC24–480V ACZero-cross
SSR-60DA60A3–32V DC24–480V ACZero-cross
SSR-80DA80A3–32V DC24–480V ACZero-cross
SSR-100DA100A3–32V DC24–480V ACZero-cross
