Finder 93.01.7.024 Screw Terminal Base with LED
Finder 93.01.7.024 Screw Terminal Base with LED - Image 2
Finder 93.01.7.024 Screw Terminal Base with LED - Image 3

Finder 93.01.7.024 Screw Terminal Base with LED

Manufacturer: Finder
Model: 93.01.7.024
Supply Voltage: 24 V AC/DC
Terminal Type: Screw Terminals
Mounting Type: 35 mm DIN Rail (EN 60715)
Compatibility: 34.51 (EMR) / 34.81 (SSR)

Get a Quote

Product Description

The Finder 93.01.7.024 is a 35mm DIN rail mounting socket specifically designed for the 34 series ultra-slim electromechanical relays. This base integrates a supply status LED and a protection module to effectively suppress back-EMF and provide visual status feedback. Featuring screw terminal connections and a compact 6.2mm width, it is perfectly suited for use as an interface module in space-constrained control cabinets. It simplifies the installation and replacement process of relays, serving as a critical component for building efficient and safe industrial control systems.

Standard Features

  • Integrated LED Indication: Built-in green LED provides clear visibility of the relay's operational status.

  • Protection Circuitry: Includes an integrated diode to protect the control circuit from inductive voltage spikes.

  • Space-Saving Interface: At only 6.2mm wide, it maximizes DIN rail space efficiency in control panels.

  • Secure Retention: Features a plastic retaining and release clip for quick and secure relay mounting.

  • Marking Capabilities: Provides dedicated slots for identification tags to simplify maintenance and wiring.

  • Wide Input Range: Compatible with both 24V AC and DC signals for flexible control system integration.

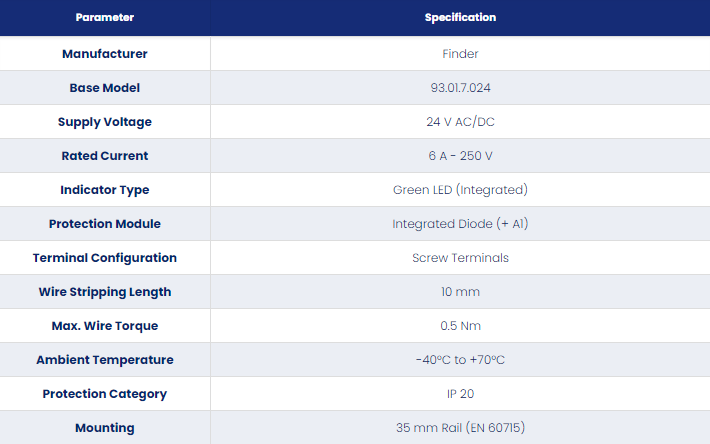

Technical Specifications

Parameter Specification
ManufacturerFinder
Base Model93.01.7.024
Supply Voltage24 V AC/DC
Rated Current6 A - 250 V
Indicator TypeGreen LED (Integrated)
Protection ModuleIntegrated Diode (+ A1)
Terminal ConfigurationScrew Terminals
Wire Stripping Length10 mm
Max. Wire Torque0.5 Nm
Ambient Temperature-40°C to +70°C
Protection CategoryIP 20
Mounting35 mm Rail (EN 60715)
