Eaton Xpole PL10 Mini circuit breaker
Eaton Xpole PL10 Mini circuit breaker - Image 2
Eaton Xpole PL10 Mini circuit breaker - Image 3

Eaton Xpole PL10 Mini circuit breaker

Manufacturer: Eaton
Model: xPole PL10 Mini Circuit Breaker
Current Range: 0.5A-63A
Supply Voltage: 230/400VAC, 48VDC
Protection Rating: IP20
Application: Industrial, commercial, residential circuit protection

Get a Quote

Product Description

The Eaton xPole PL10 Mini Circuit Breakers (MCBs) are high-performance devices designed for overload and short-circuit protection across industrial, commercial, and residential applications. Available in 1P, 2P, 3P, and 4P configurations, they support current ratings from 0.5A to 63A with tripping characteristics B, C, and D. Operating at 230/400VAC or 48VDC, they provide a breaking capacity of 10kA, making them suitable for control panels and distribution boards, with reliable operation from -25°C to 55°C.

Standard Features

  • Current Range: 0.5A-63A

  • Voltage Compatibility: 230/400VAC, 48VDC

  • Protection: IP20

  • Breaking Capacity: 10kA

  • Durability: -25°C to 55°C operating range

  • Tripping Characteristics: B, C, D

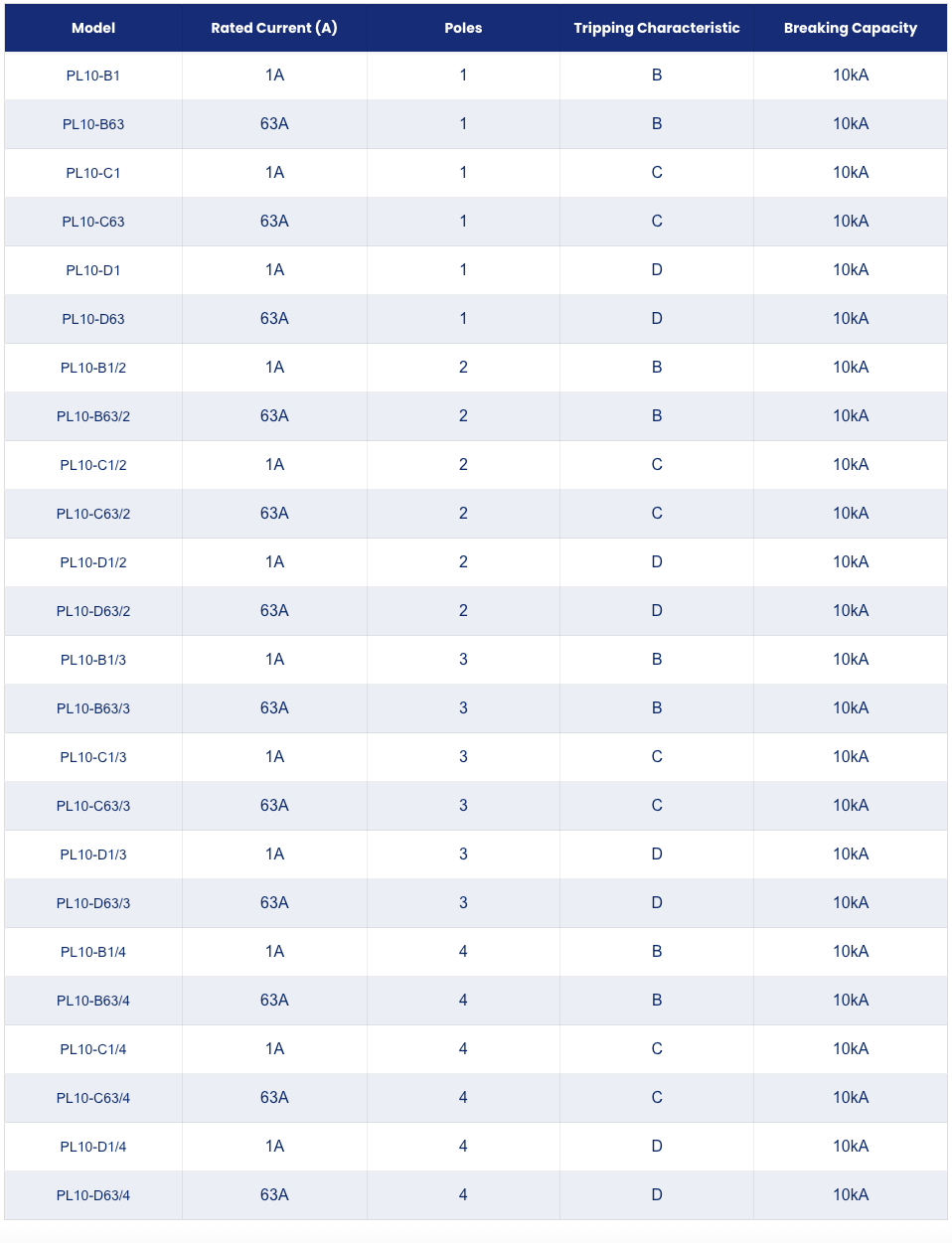

Technical Specifications



ModelRated Current (A)PolesTripping CharacteristicBreaking Capacity
PL10-B11A1B10kA
PL10-B6363A1B10kA
PL10-C11A1C10kA
PL10-C6363A1C10kA
PL10-D11A1D10kA
PL10-D6363A1D10kA
PL10-B1/21A2B10kA
PL10-B63/263A2B10kA
PL10-C1/21A2C10kA
PL10-C63/263A2C10kA
PL10-D1/21A2D10kA
PL10-D63/263A2D10kA
PL10-B1/31A3B10kA
PL10-B63/363A3B10kA
PL10-C1/31A3C10kA
PL10-C63/363A3C10kA
PL10-D1/31A3D10kA
PL10-D63/363A3D10kA
PL10-B1/41A4B10kA
PL10-B63/463A4B10kA
PL10-C1/41A4C10kA
PL10-C63/463A4C10kA
PL10-D1/41A4D10kA
PL10-D63/463A4D10kA
