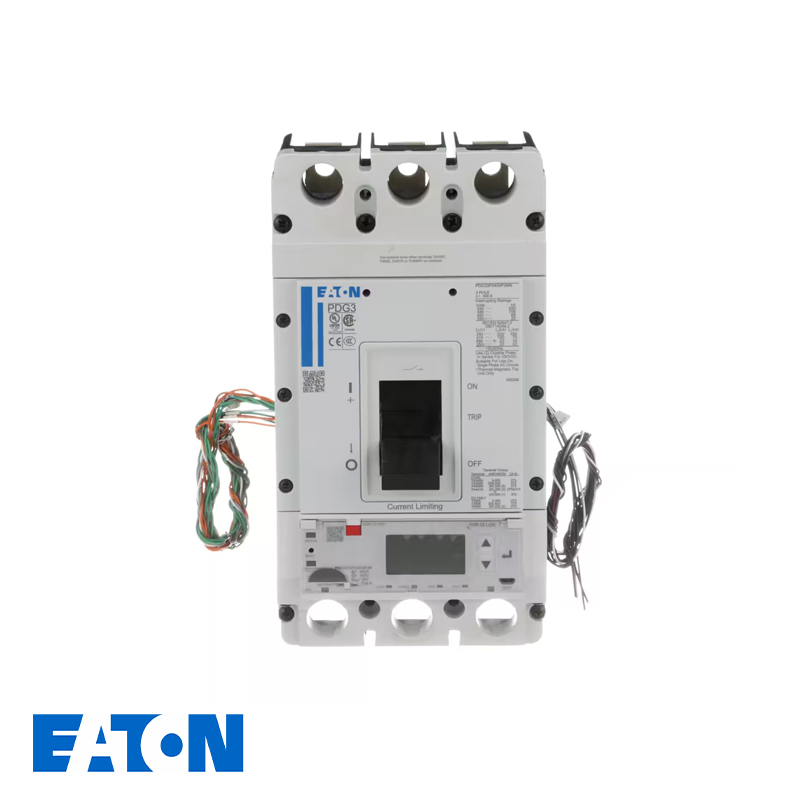

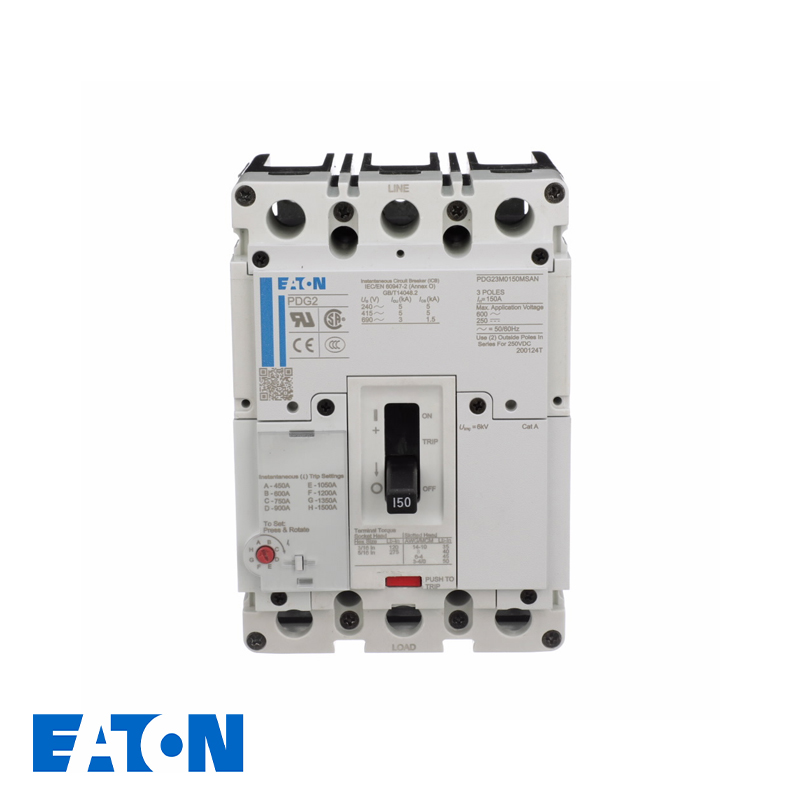

Eaton Power Defense PDG

Manufacturer: Eaton
Model: Power Defense Molded Case Circuit Breaker
Rated Current: 16 A to 1000 A
Rated Voltage: Up to 690 V AC / 750 V DC
Breaking Capacity: 50 kA to 150 kA

Product Description

Eaton's Power Defense PDG series is a highly efficient and reliable low-voltage power distribution protection product designed to meet the needs of modern industrial and building automation. The series includes digital circuit breakers, protection devices, and integrated monitoring capabilities designed to enhance system safety, stability, and maintainability. Power Defense PDG offers flexible configuration options, supports intelligent management and remote monitoring, and can optimize energy utilization and reduce downtime. Its advanced protection technology, combined with a simple user interface, ensures safe equipment operation while enhancing user convenience, making it an ideal choice for industrial automation, buildings, data centers, and other fields.

Standard Features

  • Provides reliable overload protection with thermal-magnetic or electronic trip units

  • Fast and effective short-circuit protection to safeguard equipment and circuits

  • Supports 3-pole and 4-pole configurations for comprehensive circuit protection

  • Adjustable trip settings for customized overload and short-circuit protection

  • High interrupting capacity to safely handle large short-circuit currents

  • Modular design allows easy installation of auxiliary and signaling accessories

  • Long electrical and mechanical life ensures durable and reliable operation

  • Complies with IEC 60947-2 and other international standards

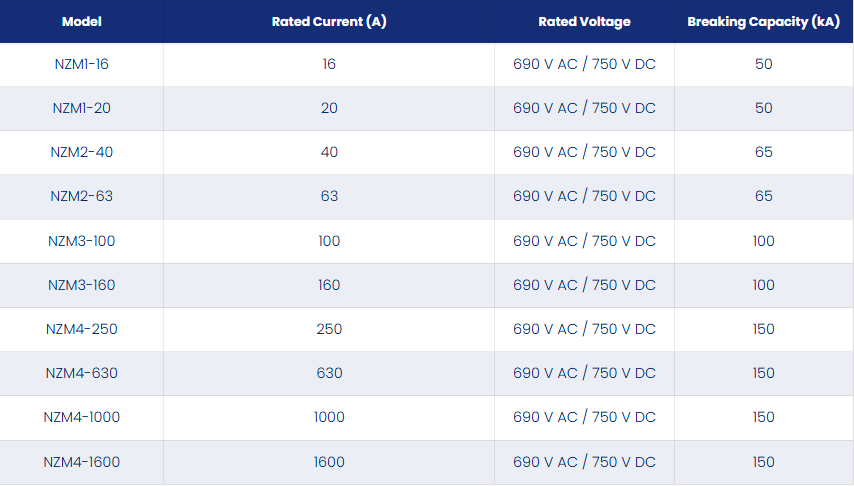

Technical Specifications



ModelRated Current (A)Rated VoltageBreaking Capacity (kA)
NZM1-1616690 V AC / 750 V DC50
NZM1-2020690 V AC / 750 V DC50
NZM2-4040690 V AC / 750 V DC65
NZM2-6363690 V AC / 750 V DC65
NZM3-100100690 V AC / 750 V DC100
NZM3-160160690 V AC / 750 V DC100
NZM4-250250690 V AC / 750 V DC150
NZM4-630630690 V AC / 750 V DC150
NZM4-10001000690 V AC / 750 V DC150
NZM4-16001600690 V AC / 750 V DC150
