Delta MS300 VFD7A5MS23ANSAA 1.5kW 230V Compact Drive
Delta MS300 VFD7A5MS23ANSAA 1.5kW 230V Compact Drive - Image 2
Delta MS300 VFD7A5MS23ANSAA 1.5kW 230V Compact Drive - Image 3

Delta MS300 VFD7A5MS23ANSAA 1.5kW 230V Compact Drive

Manufacturer: Delta Electronics
Model: VFD7A5MS23ANSAA
Power Rating: 1.5 kW (2 HP)
Rated Current: 7.5 Amps
Input Voltage: 200-240V 3-Phase
Series: MS300

Get a Quote

Product Description

The Delta VFD7A5MS23ANSAA is a compact Standard Compact Drive from the MS300 series, rated at 1.5kW (2HP) with a 7.5A output. It operates on 230V 3-phase input and supports both induction and permanent magnet motors. Featuring built-in PLC functionality, STO (Safe Torque Off) safety compliance, and a USB port for easy parameter configuration, this VFD is optimized for space-saving installation and high-performance speed regulation in diverse applications.

Standard Features

  • Motor Support: Drives both IM (Induction Motors) and PM (Permanent Magnet Motors)

  • Safety Integration: Built-in STO (Safe Torque Off) SIL2/PL d compliance

  • Logic Control: Integrated PLC capacity (2k steps) for standalone logic processing

  • High Speed: Output frequency up to 599 Hz (Standard) / 1500 Hz (High Speed mode)

  • Compact Design: Up to 40% smaller than previous generations, supporting side-by-side installation

  • Connectivity: Built-in USB port for programming and standard Modbus RS-485

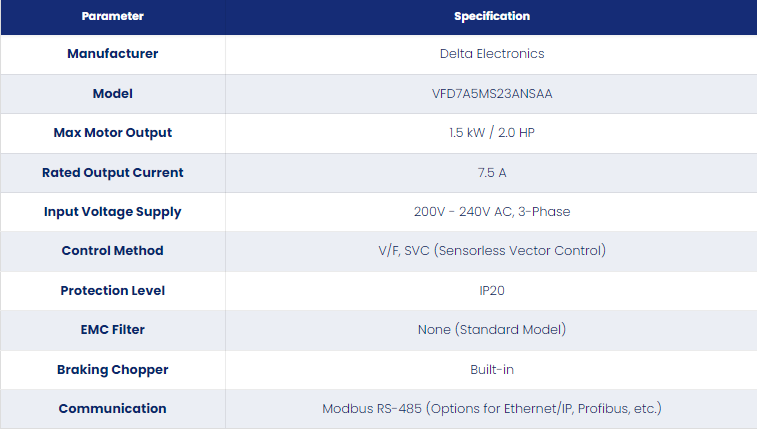

Technical Specifications

Parameter Specification
ManufacturerDelta Electronics
ModelVFD7A5MS23ANSAA
Max Motor Output1.5 kW / 2.0 HP
Rated Output Current7.5 A
Input Voltage Supply200V - 240V AC, 3-Phase
Control MethodV/F, SVC (Sensorless Vector Control)
Protection LevelIP20
EMC FilterNone (Standard Model)
Braking ChopperBuilt-in
CommunicationModbus RS-485 (Options for Ethernet/IP, Profibus, etc.)
