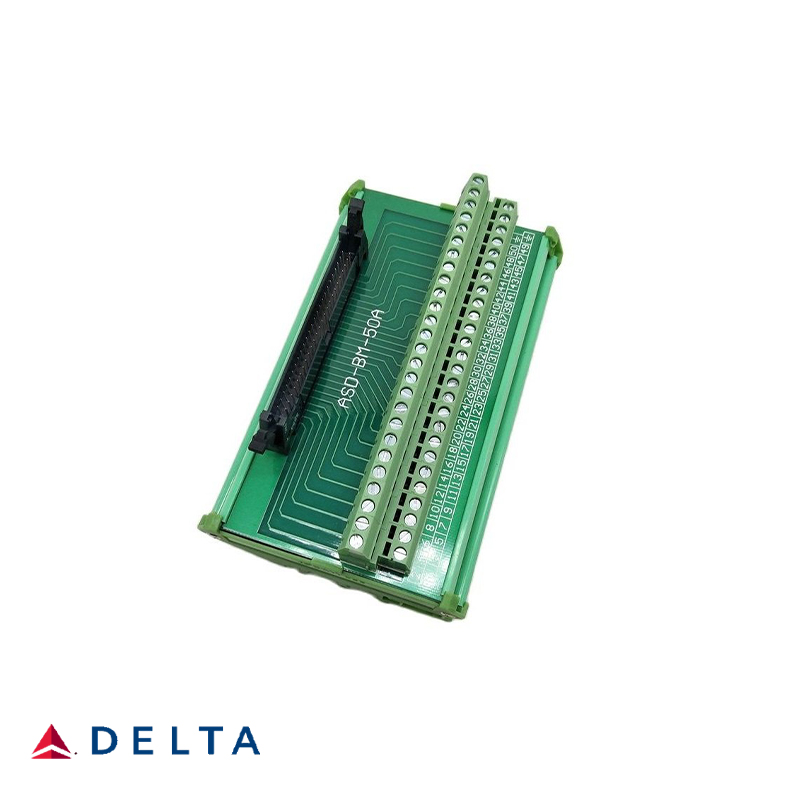

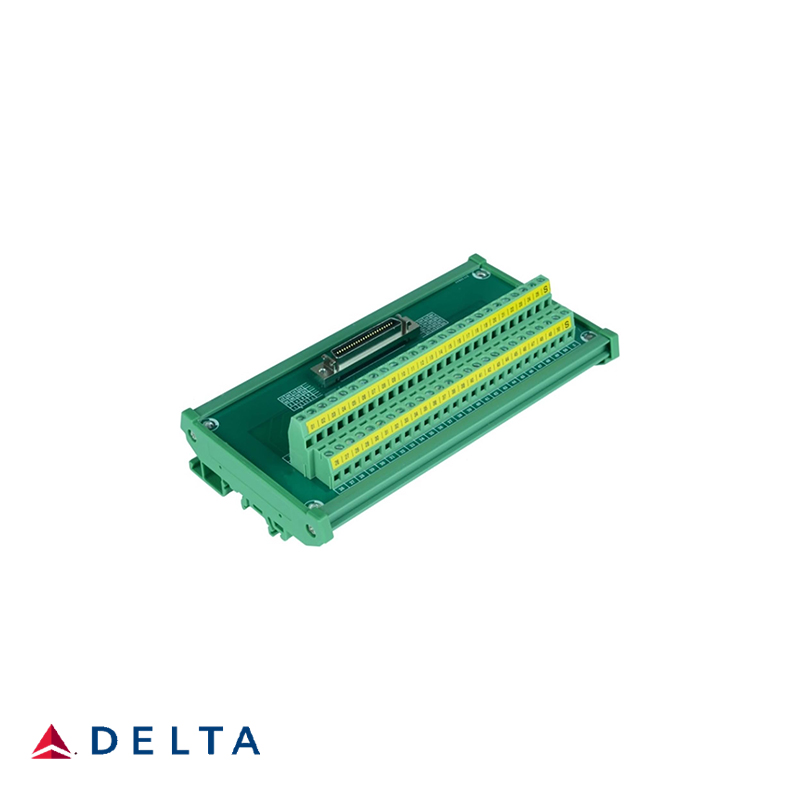

Delta ASD-BM-50A CN1 I/O Terminal Block for Servo Drives
Delta ASD-BM-50A CN1 I/O Terminal Block for Servo Drives - Image 2
Delta ASD-BM-50A CN1 I/O Terminal Block for Servo Drives - Image 3

Delta ASD-BM-50A CN1 I/O Terminal Block for Servo Drives

Manufacturer: Delta Electronics
Model: ASD-BM-50A
Interface Type: 50-Pin CN1 Connector (SCSI)
Terminal Type: Screw Terminal Block
Compatibility: ASDA-A, ASDA-A+, ASDA-AB, ASDA-B Series

Get a Quote

Product Description

The Delta ASD-BM-50A is a specialized CN1 interface terminal block designed for Delta ASDA-A, ASDA-A+, ASDA-AB, and ASDA-B series AC servo drives. This accessory simplifies the wiring process by breaking out the high-density 50-pin SCSI connector into accessible screw terminals, ensuring reliable signal transmission for input/output control. It is an essential component for industrial automation environments requiring secure and organized control cabinet wiring.

Standard Features

  • Wiring Simplification: Converts complex CN1 high-density plugs into standard screw terminals for easy access

  • Signal Integrity: Provides a secure connection interface to minimize signal loss and interference

  • I/O Management: Facilitates easy connection of digital inputs, outputs, and pulse signals to PLCs

  • Durability: Industrial-grade construction designed to withstand standard control cabinet environments

  • Maintenance: Makes troubleshooting and wire replacement significantly faster without soldering

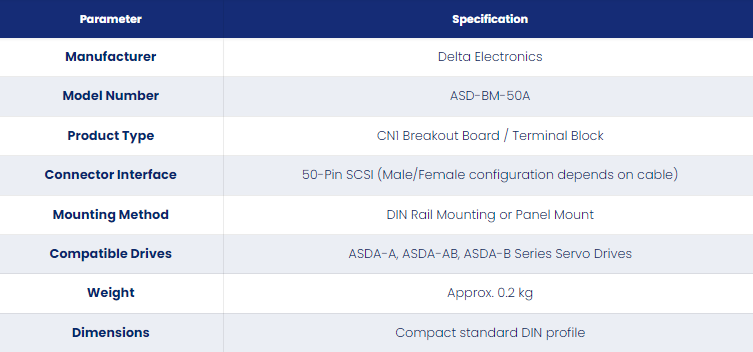

Technical Specifications

Parameter Specification
ManufacturerDelta Electronics
Model NumberASD-BM-50A
Product TypeCN1 Breakout Board / Terminal Block
Connector Interface50-Pin SCSI (Male/Female configuration depends on cable)
Mounting MethodDIN Rail Mounting or Panel Mount
Compatible DrivesASDA-A, ASDA-AB, ASDA-B Series Servo Drives
WeightApprox. 0.2 kg
DimensionsCompact standard DIN profile
