Product Description

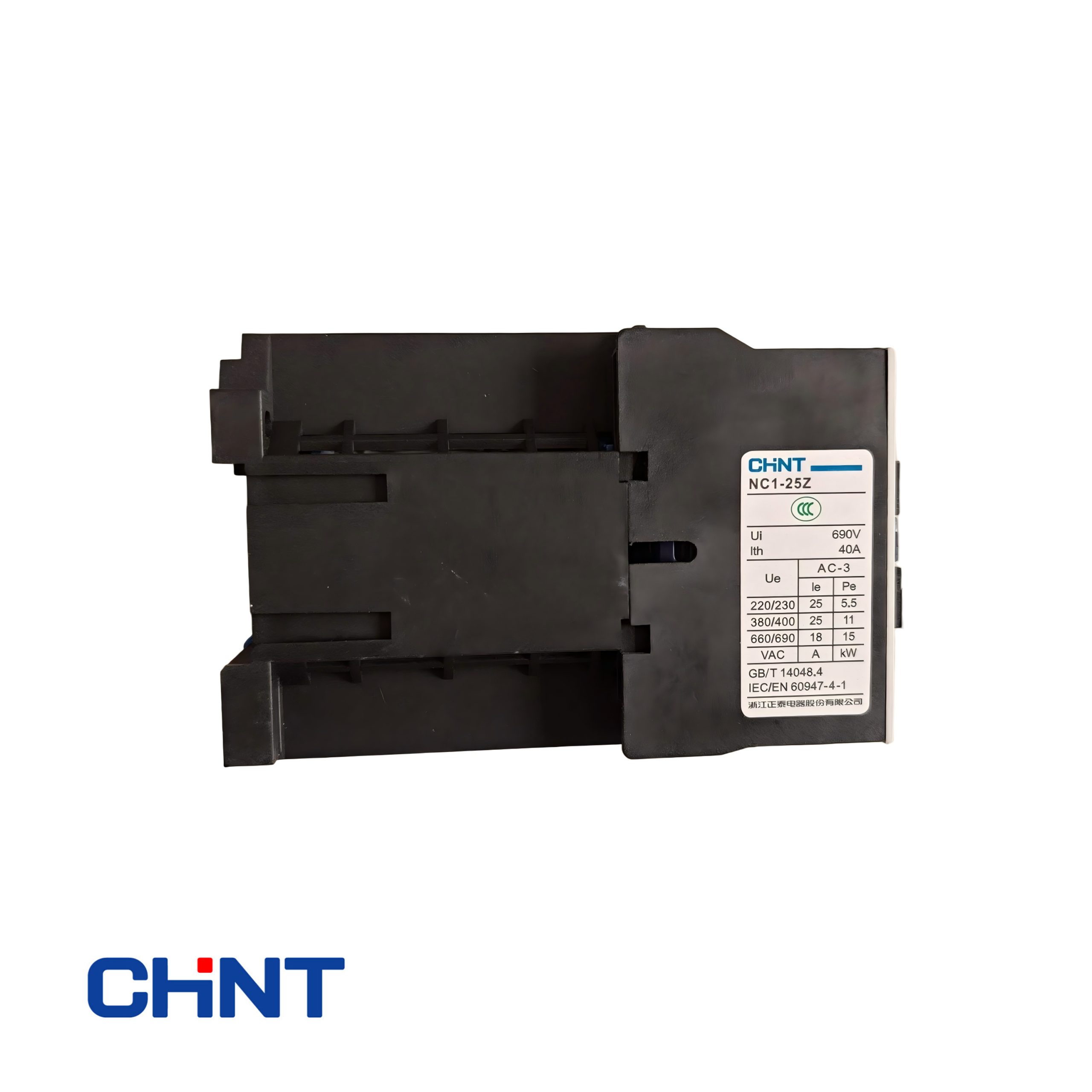

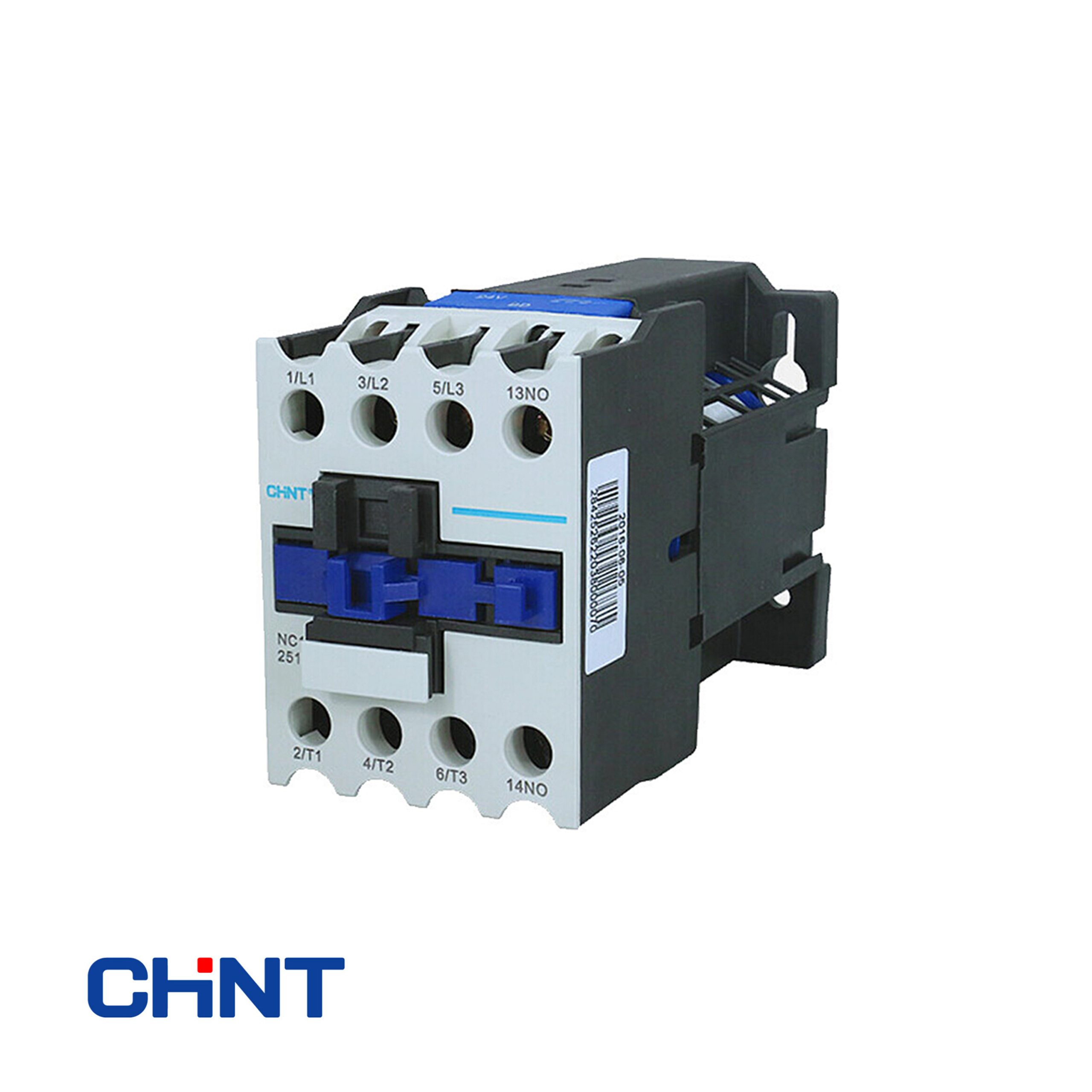

The CHINT NC1-2510Z 24V is a three-pole DC coil contactor designed for reliable starting, stopping, and control of AC motors in industrial electrical systems. It features 3 normally open main poles, 1 normally open auxiliary contact, and a 24 V DC control coil. With a 40 A AC-1 rating and 25 A AC-3 rating, the contactor is suitable for motor control applications with power ratings up to 11 kW. The NC1 series provides a compact and dependable solution for motor starters, automation equipment, and low-voltage control panels. :contentReference[oaicite:0]{index=0}
Standard Features
- 25 A AC-3 rated current: Suitable for reliable switching and control of AC motors in industrial applications.
- 40 A AC-1 rated current: Provides higher current-carrying capability for resistive and general-duty loads.
- 24 V DC coil: Designed for control circuits using a 24 V DC power supply.
- 3 main poles + 1 NO auxiliary: Provides reliable three-phase motor switching with an additional normally open control contact.
- Up to 11 kW motor power: Suitable for AC motor applications up to 11 kW under the specified operating conditions.
- NC1 series design: Provides a compact and practical contactor solution for industrial motor control and automation systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | CHINT |
| Model | NC1-2510Z-24V |
| Product Type | DC Coil AC Contactor |
| Main Contacts | 3 NO |
| Auxiliary Contacts | 1 NO |
| Rated Current (AC-1) | 40 A |
| Rated Current (AC-3) | 25 A |
| Control Coil Voltage | 24 V DC |
| Motor Power | 11 kW |
| Product Series | NC1 Series |
| Application | AC Motor Starting and Control |
