BIM-INT-Y1X-H1141 Magnetic Field Sensor High Precision

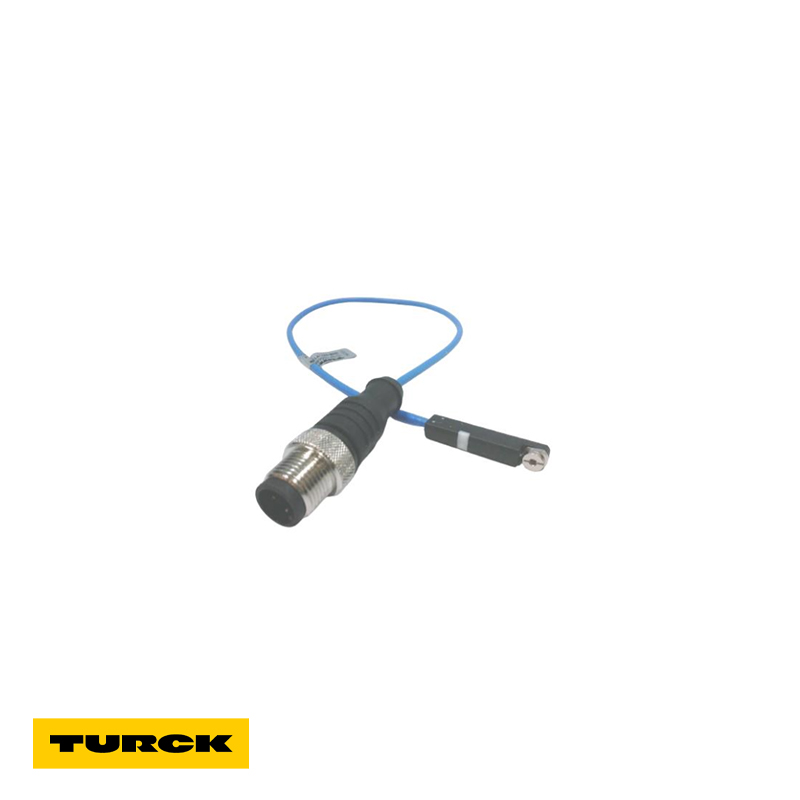

BIM-INT-Y1X-H1141 Magnetic Field Sensor High Precision - Image 2

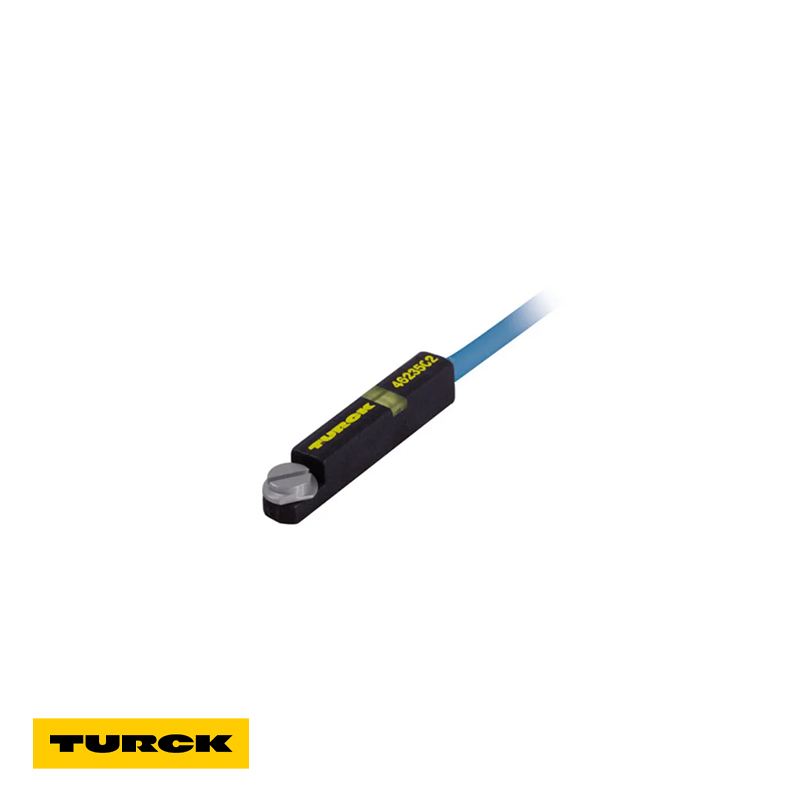

BIM-INT-Y1X-H1141 Magnetic Field Sensor High Precision - Image 3

BIM-INT-Y1X-H1141 Magnetic Field Sensor High Precision

Manufacturer: Turck
Model: BIM-INT-Y1X-H1141 Magnetic Field Sensor
Housing Type: T-slot cylinder sensor
Switching Output: PNP, Normally Open (NO)
Sensing Principle: Hall-effect magnetic detection
Operating Voltage: 10–30 VDC
Connection Type: 3-wire, M8 connector
Protection Rating: IP67
Operating Temperature: -25°C to +70°C

Get a Quote

Product Description

The Turck BIM-INT-Y1X-H1141 is a compact magnetic field sensor designed for T-slot cylinders, delivering precise piston position detection in demanding industrial environments. Its high switching accuracy, short housing, and reliable Hall-effect technology ensure stable operation even under vibration, shock, or rapid motion. With IP67 protection and robust EMC immunity, the sensor performs consistently in automation, pneumatics, and metalworking applications.

Standard Features

  • Precise Position Detection: Designed for T-slot cylinders to accurately detect piston movement via magnetic field sensing.

  • Hall-Effect Technology: Provides stable switching even under vibration, rapid motion, or mechanical shock.

  • High EMC Immunity: Ensures reliable operation in environments with electrical noise or industrial interference.

  • Durable Housing: Short, compact structure suitable for tight mounting spaces.

  • Environmental Protection: IP67 rating for resistance to dust, moisture, and harsh industrial conditions.

  • Easy Installation: Slide-in T-slot mounting for quick integration on pneumatic cylinders.

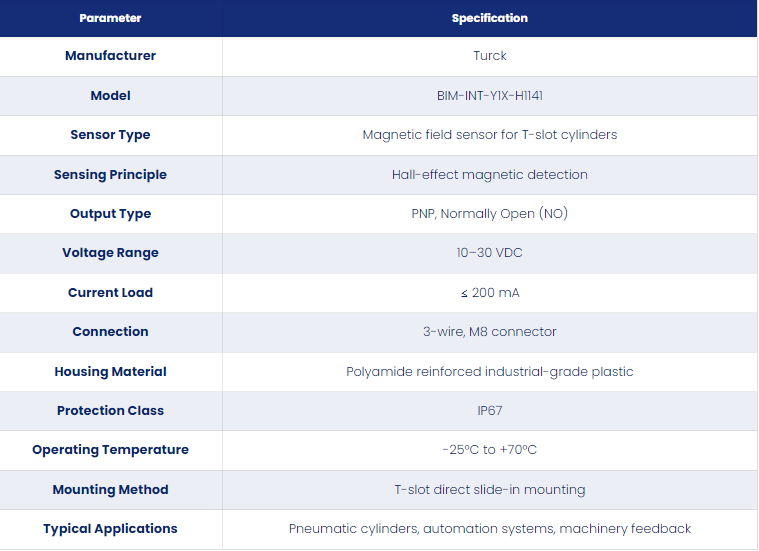

Technical Specifications

Parameter Specification
ManufacturerTurck
ModelBIM-INT-Y1X-H1141
Sensor TypeMagnetic field sensor for T-slot cylinders
Sensing PrincipleHall-effect magnetic detection
Output TypePNP, Normally Open (NO)
Voltage Range10–30 VDC
Current Load≤ 200 mA
Connection3-wire, M8 connector
Housing MaterialPolyamide reinforced industrial-grade plastic
Protection ClassIP67
Operating Temperature-25°C to +70°C
Mounting MethodT-slot direct slide-in mounting
Typical ApplicationsPneumatic cylinders, automation systems, machinery feedback
