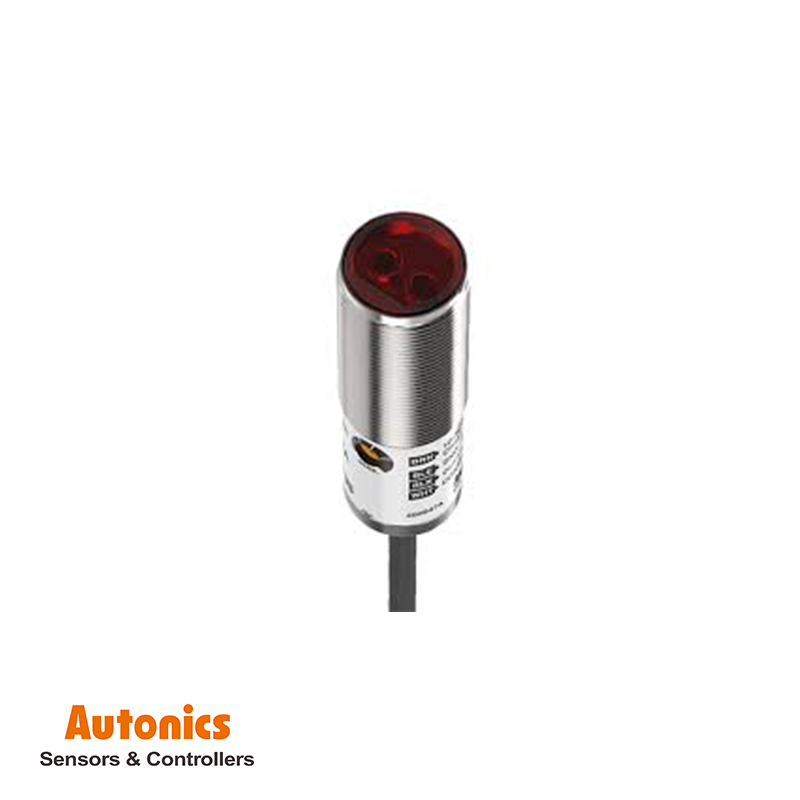

Autonics BRQT3M-PDTA-C-P Cylindrical Photoelectric Sensors

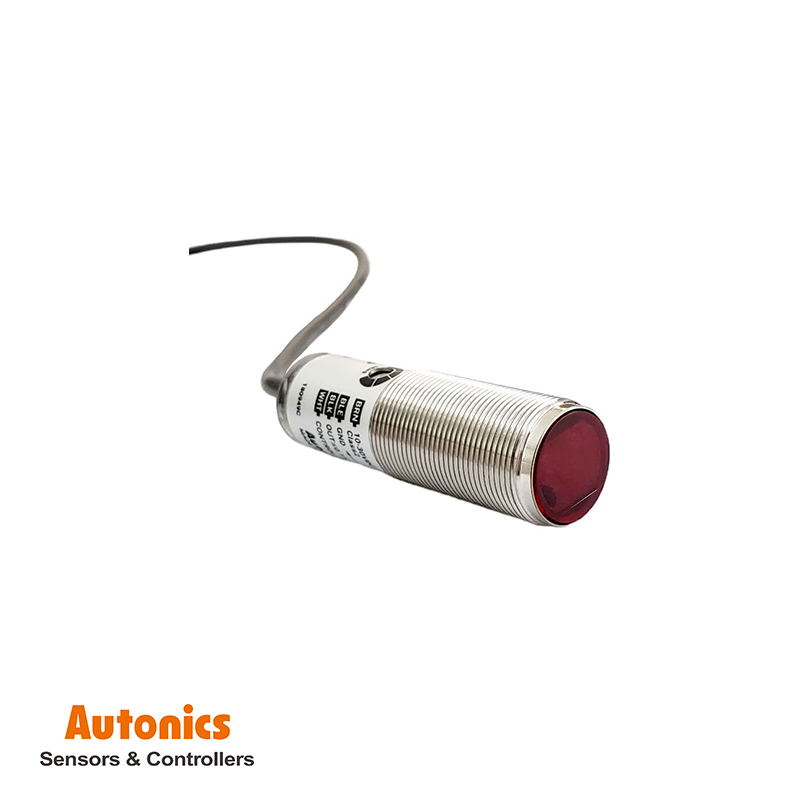

Autonics BRQT3M-PDTA-C-P Cylindrical Photoelectric Sensors - Image 2
Autonics BRQT3M-PDTA-C-P Cylindrical Photoelectric Sensors - Image 3

Autonics BRQT3M-PDTA-C-P Cylindrical Photoelectric Sensors

Manufacturer: Autonics
Model: BRQM3M-PDTA-C-P Cylindrical Photoelectric Sensor
Sensing Distance: 3m
Supply Voltage: 10-30VDC
Protection Rating: IP67
Application: Industrial object detection

Get a Quote

Product Description

The Autonics BRQM3M-PDTA-C-P is a high-performance cylindrical photoelectric sensor with a built-in polarizing filter, ideal for detecting opaque objects in industrial automation. Featuring a 3m sensing distance and PNP output with selectable Light-ON/Dark-ON modes, it ensures reliable performance in dusty or reflective environments. Housed in a durable 18mm brass barrel with M12 connector, it operates from -25°C to 70°C for robust use in machinery and conveyor systems.

Standard Features

  • High Reliability: Built-in polarizing filter reduces interference from shiny surfaces for consistent detection in challenging conditions.

  • Lightweight Design: Compact 18mm diameter brass housing for easy mounting in tight spaces.

  • Secure Connection: M12 connector ensures quick, vibration-resistant wiring.

  • Wide Temperature Range: Operates reliably from -25°C to 70°C for harsh environment tolerance.

  • Fast Response: Under 1ms response time for precise and timely object sensing.

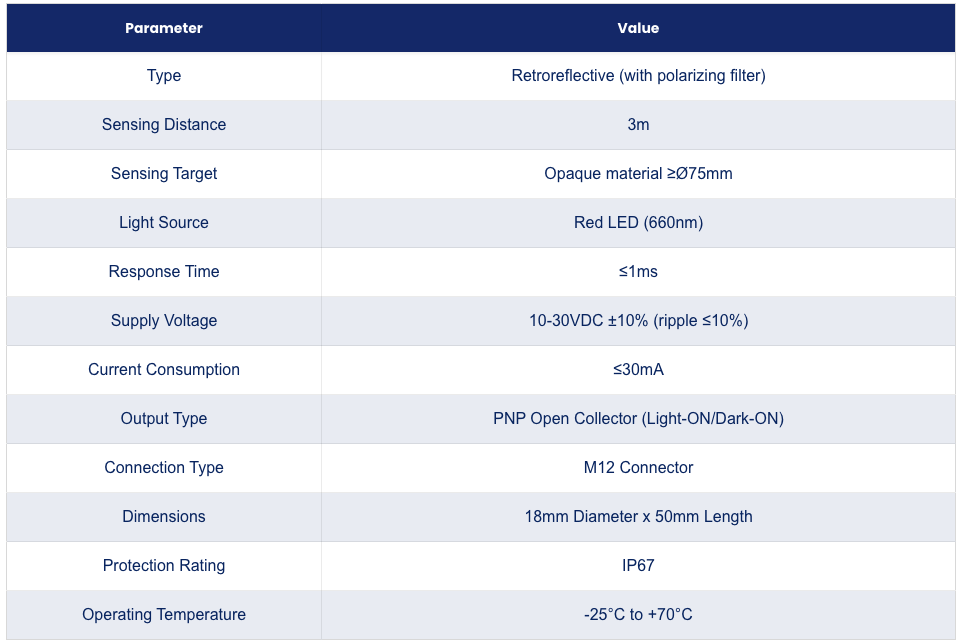

Technical Specifications

ParameterValue
TypeRetroreflective (with polarizing filter)
Sensing Distance3m
Sensing TargetOpaque material ≥Ø75mm
Light SourceRed LED (660nm)
Response Time≤1ms
Supply Voltage10-30VDC ±10% (ripple ≤10%)
Current Consumption≤30mA
Output TypePNP Open Collector (Light-ON/Dark-ON)
Connection TypeM12 Connector
Dimensions18mm Diameter x 50mm Length
Protection RatingIP67
Operating Temperature-25°C to +70°C
