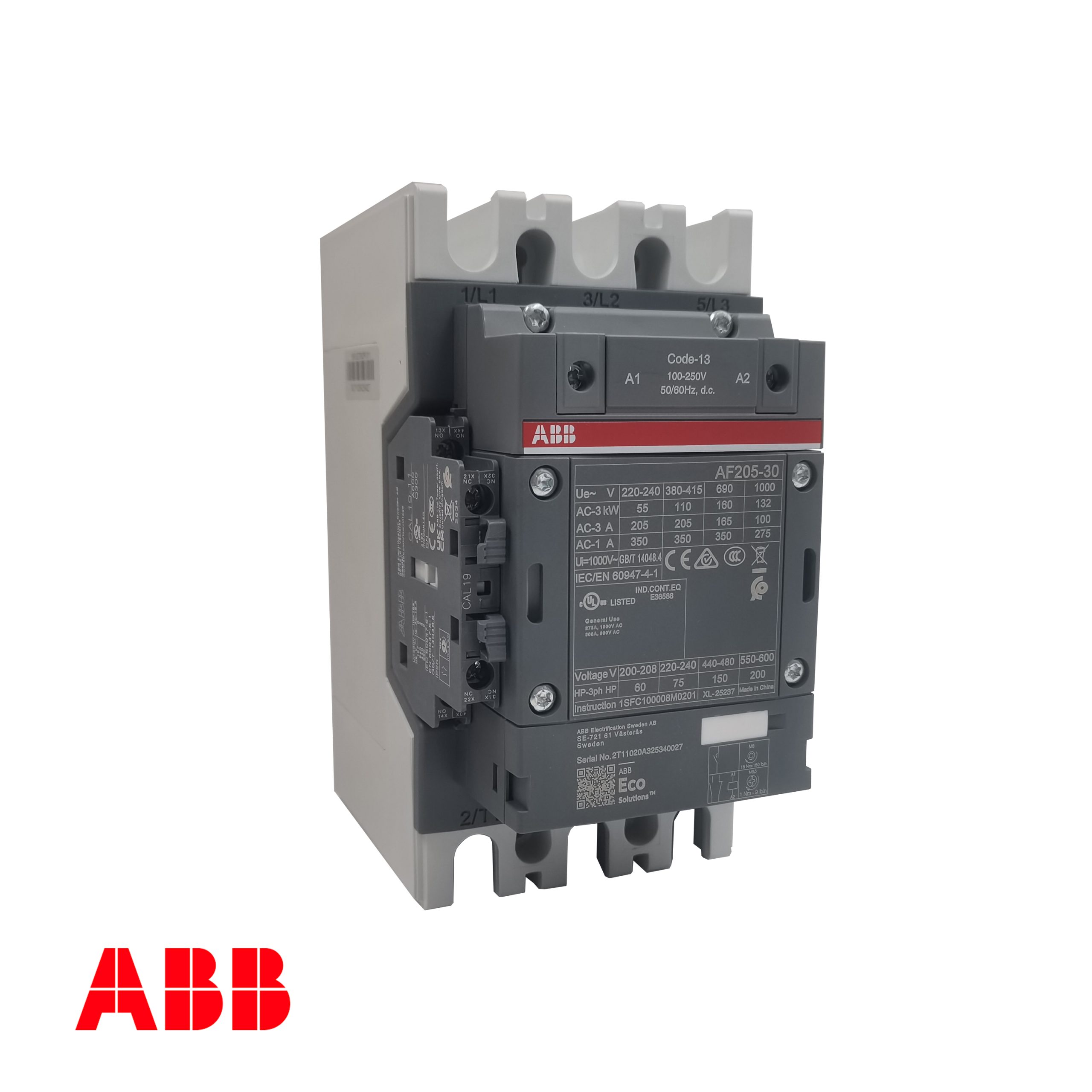

ABB AF205‑30‑11‑13 AF Series Contactor – 192A (AC‑3), 3‑Pole, 110kW @ 400V, 100‑250V AC/DC Wide‑Range Coil
| Parameter | Value |
|---|---|
| Product Type | IEC Power Contactor |
| Series / Brand | AF205 / ABB |
| Model Number | AF205‑30‑11‑13 |
| Order Number | 1SFL527002R1311 |
| Number of Poles | 3‑pole |
| Main Contact Configuration | 3 NO (3PST‑NO) |
| Rated Operational Current (Ie) – AC‑3 @ 400V | 192A |
| Rated Operational Current – AC‑1 @ 400V | 350A |
| Motor Power – AC‑3 @ 400V | 110kW |
| Rated Operational Voltage (Ue) | 690V AC / 1000V IEC / 600V UL |
| Rated Insulation Voltage (Ui) | 1000V |
| Coil Control Voltage | 100‑250V AC/DC (50/60Hz) |
| Auxiliary Contacts | 1 NO + 1 NC |
| Connection Type | Screw terminals |
| Dimensions (H × W × D) | 196mm × 105mm × 152mm |
| Net Weight | Approx. 3.23 kg (6.26 lbs) |
| Mounting | DIN rail or panel mount |
| Protection Class | IP00 / IP20 |
| Ambient Operating Temperature | ‑25°C to +50°C |
| Standards & Certifications | IEC 60947‑4‑1, UL 508, CSA C22.2, CCC, CE, RoHS |
| Country of Origin | Sweden |
Product Description
The ABB AX09-30-10-36 is a compact, high-reliability 3-pole miniature contactor from the AX series. With a 9 A AC-3 rating, it is ideal for controlling small three-phase motors up to 4 kW at 400 V, as well as lighting, heating elements, solenoid valves, and other general-purpose loads. The 36 VAC coil makes it suitable for specific control voltage systems common in certain machinery and safety circuits. It includes one built-in normally open auxiliary contact for signaling or interlocking, and features screw terminals for secure wiring. The AX series is known for its space-saving design, long mechanical and electrical life, and easy integration in control panels and automation systems.
Standard Features
9 A AC-3 rating: Suitable for small motors up to 4 kW @ 400 V — perfect for compact machine applications.
36 VAC coil voltage: Specific low-voltage control — commonly used in machinery with 36 V safety circuits.
Built-in 1 NO auxiliary contact: Provides signaling or interlocking without the need for additional blocks.
Compact design: Only 36 mm width — space-efficient for DIN-rail mounting in tight panels.
Screw clamp terminals: Secure and vibration-resistant wiring for 0.75–4 mm² cables.
High endurance: Mechanical life >10 million operations — reliable for frequent switching.
Global approvals: IEC 60947-4-1, UL, CSA, CE — accepted worldwide for industrial use.
Technical Specifications
Manufacturer: ABB
Model: AF205‑30‑11‑13
Order Number: 1SFL527002R1311
Type: IEC Power Contactor
Series: AF205
Rated Current (AC‑3 @ 400V): 192A
Motor Power (AC‑3 @ 400V): 110kW
Coil Voltage: 100‑250V AC/DC (50/60Hz)
Auxiliary Contacts: 1 NO + 1 NC (pre‑mounted)
Connection: Screw terminals
The ABB AF205‑30‑11‑13 is a 3‑pole IEC contactor from the AF series, engineered for reliable switching of high‑current motor and resistive loads in commercial HVAC, industrial, and building automation applications[reference:0]. Rated at 192A (AC‑3) with a motor power of 110kW at 400V[reference:1][reference:2], it is ideal for motors, pumps, compressors, and chiller control panels[reference:3]. The wide‑range coil (100‑250V AC/DC) eliminates the need for multiple coil SKUs across panel designs[reference:4]. Featuring built‑in surge suppression, electronically controlled coil technology, and pre‑mounted auxiliary contacts, the AF series delivers reliable performance in demanding environments[reference:5][reference:6].
Wide‑Range Coil (100‑250V AC/DC): Operates on both AC and DC control voltages from 100‑250V, providing flexibility for diverse control systems and reducing inventory requirements[reference:7].
Built‑In Surge Suppression: Integrated surge protection eliminates the need for external suppression components, simplifying panel design and reducing costs[reference:8].
Pre‑Mounted Auxiliary Contacts: Comes with 1 NO + 1 NC auxiliary contacts factory‑installed, reducing installation time and simplifying wiring[reference:9].
High Motor Switching Capacity: Rated at 192A (AC‑3) with 110kW motor power at 400V, suitable for demanding motor control applications[reference:10][reference:11].
Electronically Controlled Coil: Reduces inrush current, minimizes noise, and extends coil life compared to conventional AC contactors[reference:12].
Compact Design: Space‑saving 105mm width with DIN rail mounting, suitable for panel and enclosure installation[reference:13].
Global Approvals: Certified to IEC 60947‑4‑1, UL 508, CSA C22.2, CCC, CE, and RoHS compliant[reference:14][reference:15].
