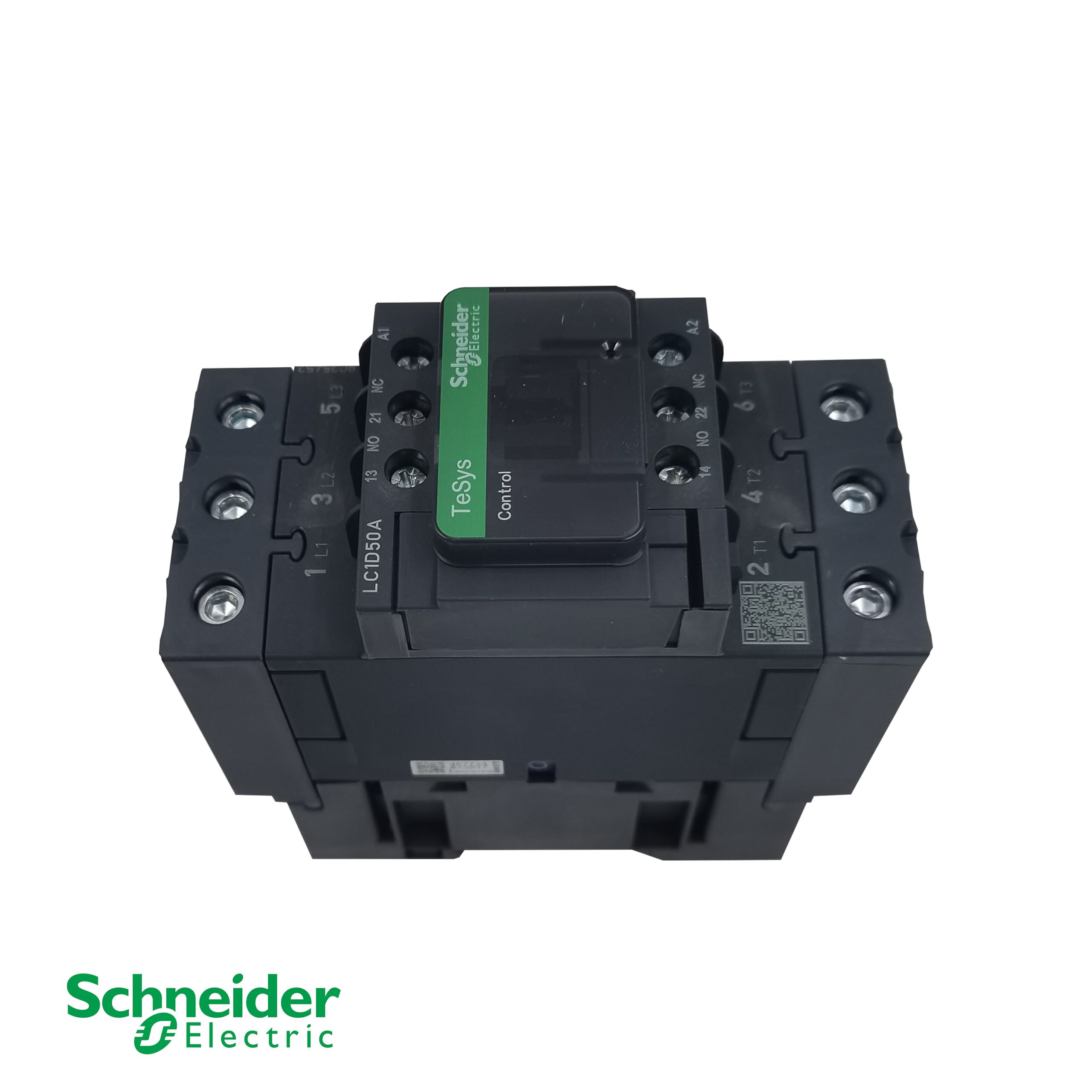

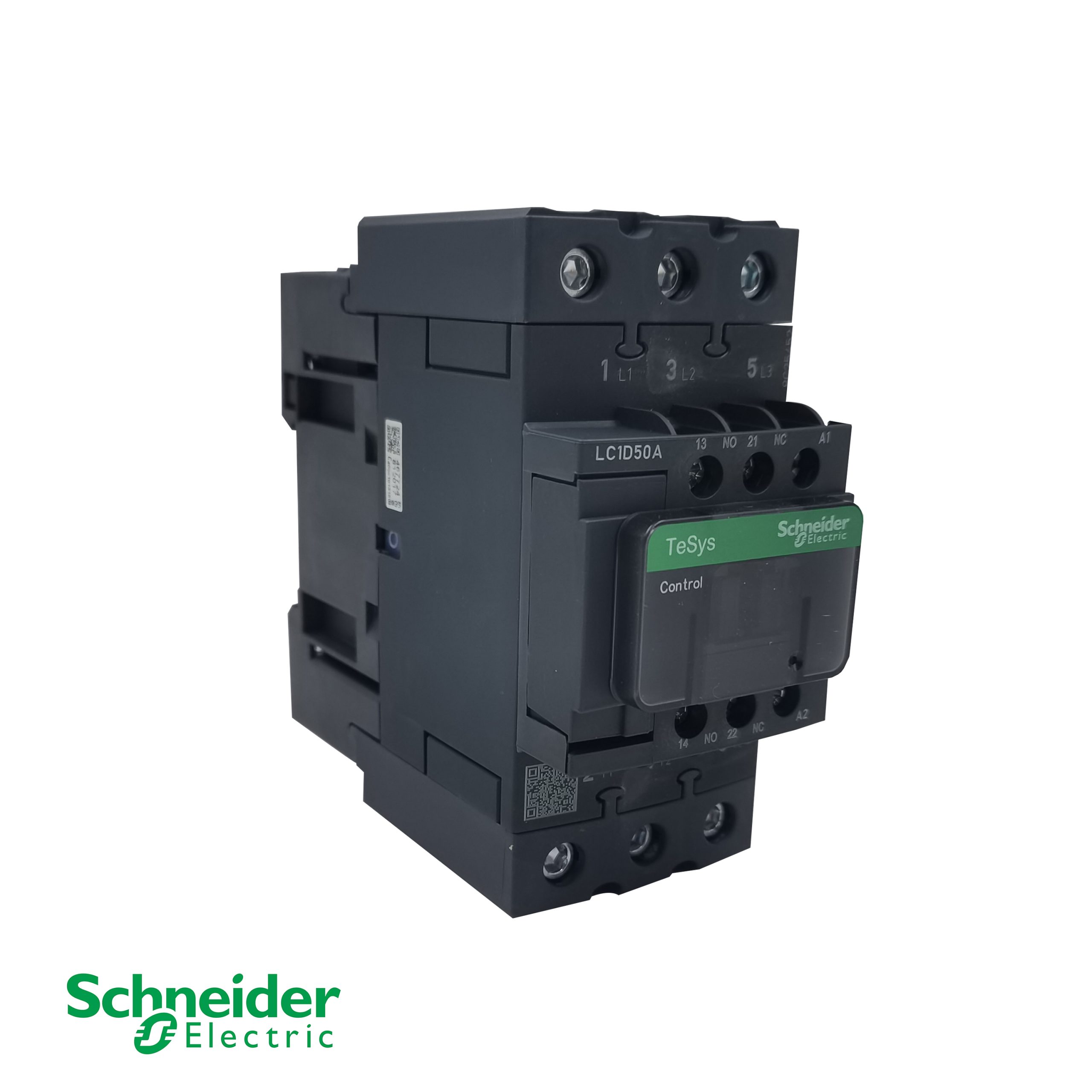

Контактор Schneider Electric LC1D50AM7C TeSys D – 50 А, 3-полюсный, 22 кВт при 400 В (AC-3)

Производитель: Шнайдер Электрик
Модель: LC1D50AM7C
Тип: TeSys Deca Contactor
Номинальный ток: 50 A (AC-3 @ ≤ 440 V)
Мощность двигателя: 22 kW @ 400 V AC
Напряжение катушки: 220 В переменного тока, 50/60 Гц
Вспомогательные контакты: 1 НО + 1 НЗ

Описание продукта

The Schneider Electric LC1D50AM7C is a 3-pole TeSys Deca contactor designed for motor control and resistive load switching in industrial and HVAC applications. It is rated 50 A in AC-3/AC-3e category at voltages up to 440 V AC, corresponding to a motor power of 22 kW at 380–400 V AC. The contactor features a 220 V AC 50/60 Hz control coil and provides 1 NO + 1 NC built-in auxiliary contacts, with the NC contact mirror-certified per IEC 60947-4-1. Power connections use EverLink BTR screw connectors, while control connections use screw clamp terminals. With a compact 55 mm width, DIN-rail or screw mounting, and an operating rate of up to 3,600 cycles/hour at 60 °C, it delivers high reliability and durability in demanding environments.

Стандартные функции

  • 50 A / 22 kW AC-3 Rating: Rated operational current of 50 A in AC-3/AC-3e category at ≤ 440 V AC, suitable for direct-on-line starting of three-phase motors up to 22 kW at 380–400 V AC.
  • 220 V AC 50/60 Hz Coil: Standard AC control coil voltage for integration with common industrial control circuits.
  • 1 NO + 1 NC Auxiliary Contacts: Built-in auxiliary contacts provide integrated signal contacts for status feedback and control interlocking, with NC mirror certification per IEC 60947-4-1.
  • EverLink BTR Power Terminals: Patented EverLink BTR screw connectors maintain constant tightening pressure for reliable, maintenance-free power connections.
  • Compact 55 mm Width: Space-saving design enables DIN-rail mounting or screw fixing, optimizing panel layout in space-constrained enclosures.
  • High Operating Rate: Rated for up to 3,600 cycles/hour at 60 °C, suitable for frequent switching applications in demanding industrial environments.
  • Multi-Standard & Green Premium: Certified to IEC, UL, CSA, CCC, EAC, and Marine standards; Green Premium compliant (RoHS/REACh) with a total lifecycle carbon footprint of 67 kg CO₂ eq.

Технические характеристики

ПараметрЦенить
ПроизводительШнайдер Электрик
МодельLC1D50AM7C
РядTeSys Deca / TeSys D
Тип продуктаКонтактор
Rated Operational Current (Ie) – AC-350 A (≤ 440 V AC, at < 60 °C)
Rated Operational Current (Ie) – AC-180 A (≤ 440 V AC, at < 60 °C)
Motor Power (AC-3 @ 380–400 V)22 кВт
Напряжение управления катушкой (Uc)220 В переменного тока, 50/60 Гц
Вспомогательные контакты1 NO + 1 NC (сертифицировано по стандарту NC)
Номинальное рабочее напряжение (Ue)≤ 690 V AC (25–400 Hz) / ≤ 300 V DC
Номинальное напряжение изоляции (Ui)690 В
Тип подключенияPower: EverLink BTR screw connectors; Control: Screw clamp terminals
Габариты (В × Ш × Г)122 mm × 55 mm × 120 mm
Вес нетто0.855 kg
Механическая прочность6 million operating cycles
СтандартыIEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, CCC, EAC, Marine
