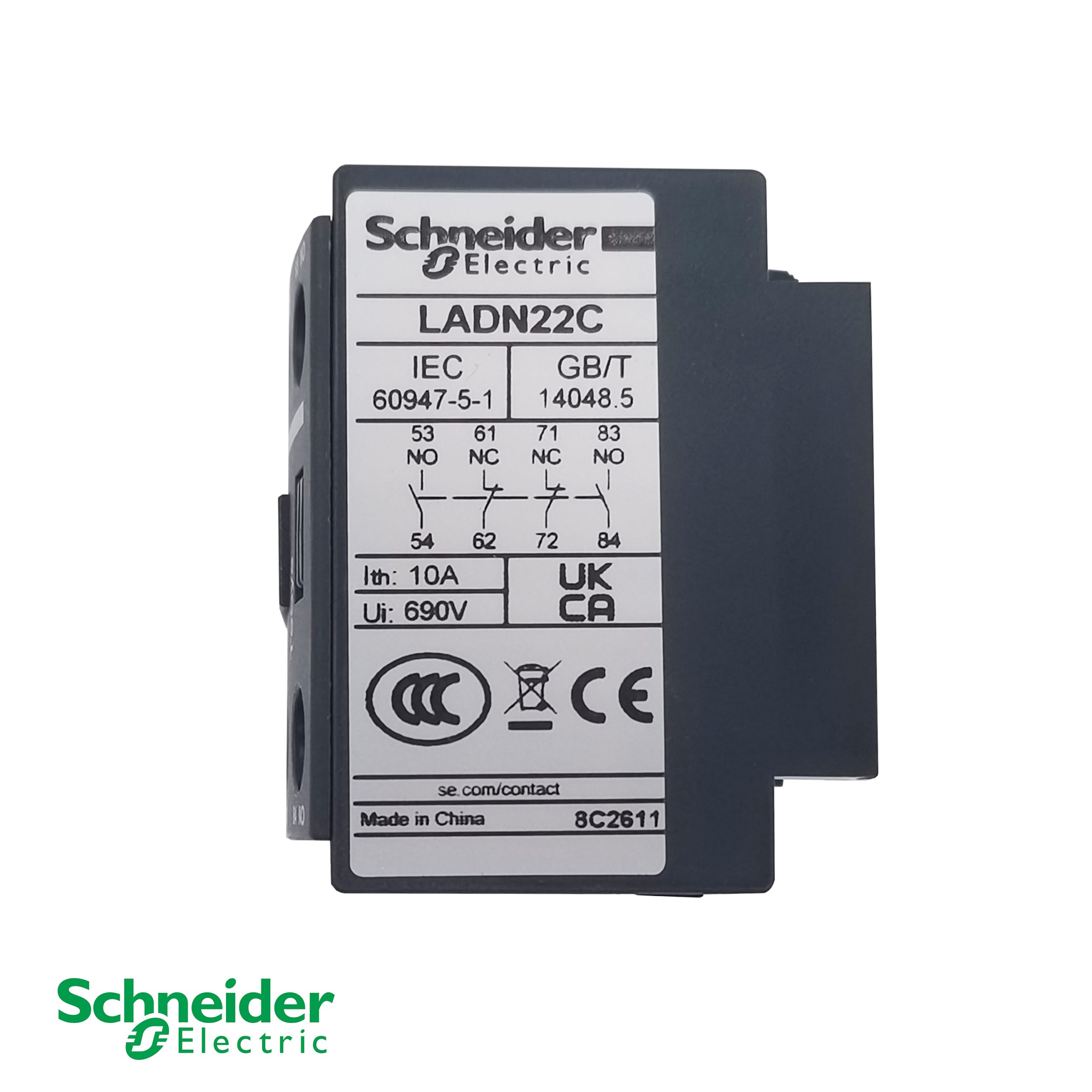

Schneider Electric LADN22C TeSys D Вспомогательный контактный блок – 2 НЗ + 2 НЗ, переднее крепление, 10А, 690В AC

Производитель: Шнайдер Электрик
Модель: LADN22C
Тип: Вспомогательный контактный блок
Конфигурация контакта: 2 NO + 2 NC
Монтаж: Front Mounting
Номинальное рабочее напряжение: 690 В переменного тока
Тип терминала: Винтовые клеммы

Описание продукта

The Schneider Electric LADN22C is a front-mounting instantaneous auxiliary contact block from the TeSys Deca range, designed to expand the control circuit capacity of contactors and relays. It provides two normally open (NO) and two normally closed (NC) contacts, with a rated operational voltage of 690 V AC (25–400 Hz) and a conventional free air thermal current of 10 A at 60 °C. The contacts are rated for 6 A at 120 V AC-15 and 1.04 A at 690 V AC-15, with a minimum switching current of 5 mA at 17 V for reliable low-level signal switching. The block is compatible with TeSys D LC1D, TeSys F LC1F, and TeSys Deca CAD control relays, and features screw clamp terminals accepting conductors from 1 to 4 mm². Its compact housing mounts directly onto the front face of compatible devices without tools.

Стандартные функции

  • 2 NO + 2 NC Contact Configuration: Provides two normally open and two normally closed instantaneous contacts for flexible control circuit expansion.
  • High Rated Operational Voltage: 690 V AC (25–400 Hz) conforming to IEC 60947-5-1, suitable for a wide range of industrial control applications.
  • Reliable Low-Level Switching: Minimum switching current of 5 mA at 17 V ensures dependable signal transmission in low-power circuits.
  • High Mechanical Durability: Rated for 30 million operating cycles, providing long-term reliability in high-frequency switching applications.
  • Front Clip-On Mounting: Installs directly onto the front face of compatible TeSys contactors and relays without additional tools or accessories.
  • Клеммы с винтовыми зажимами: Accepts 1–4 mm² flexible and rigid conductors, with a tightening torque of 1.7 N·m for secure connections.
  • Глобальные сертификаты: Certified to EN/IEC 60947-5-1, UL, CSA, CCC, and EAC; meets IEC 60335-1 for improved fire resistance.

Технические характеристики

ПараметрЦенить
ПроизводительШнайдер Электрик
МодельLADN22C
РядTeSys Deca / TeSys D
Тип продуктаВспомогательный контактный блок
Состав контактной группы полюса2 NO + 2 NC
Место установкиFront
Номинальное рабочее напряжение (Ue)690 V AC, 25…400 Hz
Номинальный рабочий ток (Ie)6 A at 120 V AC-15; 1.04 A at 690 V AC-15
Обычный тепловой ток (Ith)10 A at 60 °C
Минимальный коммутационный ток5 mA at 17 V
Механическая прочность30,000,000 operating cycles
Тип терминалаScrew clamp terminals (1–4 mm²)
Степень защитыIP20
СтандартыEN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1
