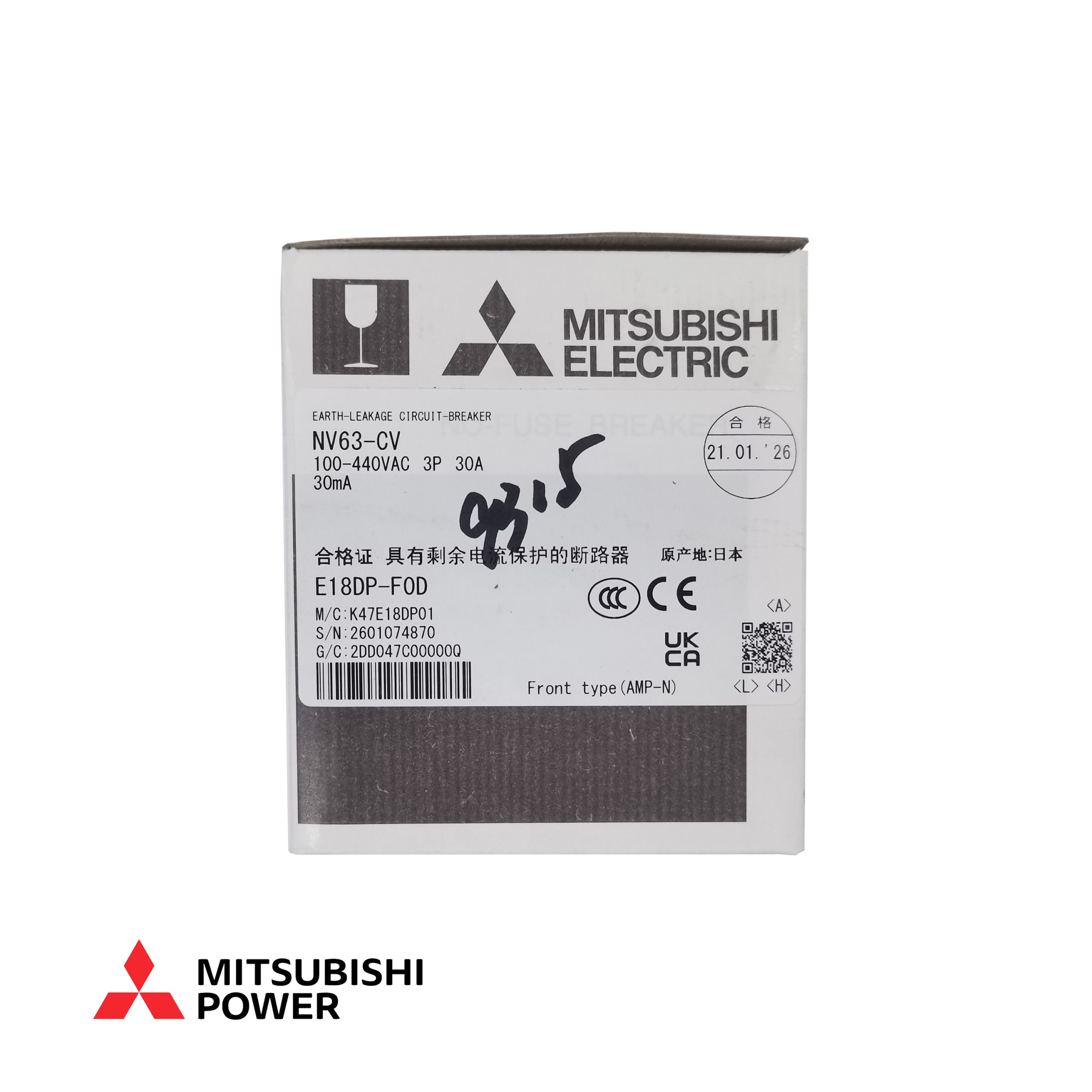

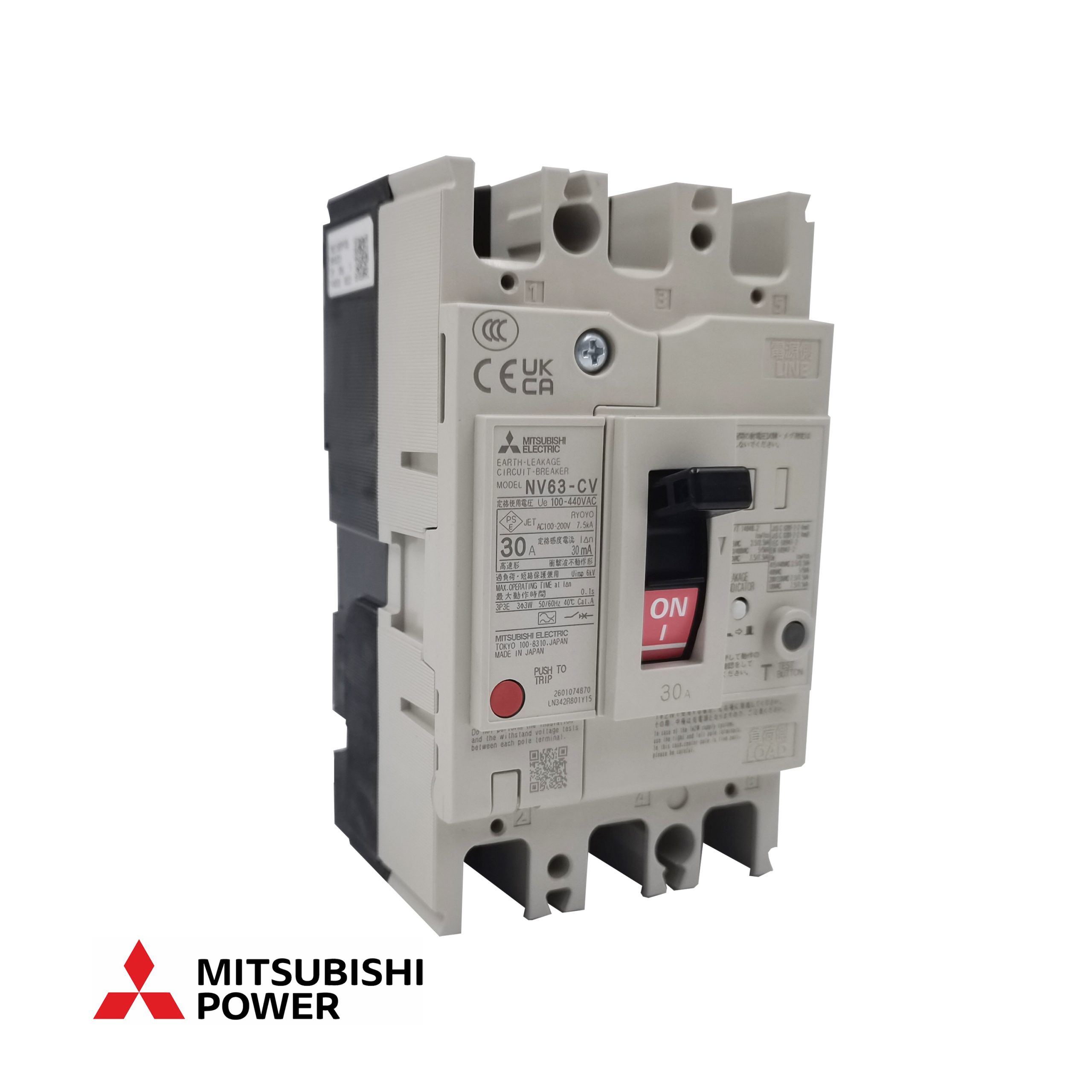

Mitsubishi Electric NV63-CV 3P 30A Автоматический выключатель утечки на землю – 30 А, 3‑полюсный, чувствительность 30 мА, 5 кА при 400 В

Производитель: Мицубиси Электрик
Модель: NV63-CV 3P 30A
Тип: Устройство защитного отключения (УЗО)
Номинальный ток: 30 А
Количество полюсов: 3
Отключающая способность: 5 kA @ 400 V AC
Чувствительность к остаточному току: 100 / 200 / 500 mA (adjustable)

Описание продукта

The Mitsubishi Electric NV63-CV 3P 30A is a moulded case circuit breaker with embedded earth leakage protection from the WS-V series (NV-C economy class). It combines thermal-magnetic overcurrent protection with high-speed earth leakage detection in a single compact device. The thermal protection tripping threshold is fixed at 30 A, while the residual current sensitivity is configurable across 100 mA, 200 mA, and 500 mA. The breaker delivers an ultimate short-circuit breaking capacity of 7.5 kA at 230 V AC and 5 kA at 400 V AC, with service breaking capacity equal to 100% of Icu at 400 V AC. Its utilisation category A and pollution degree 2 rating make it suitable for industrial and commercial distribution boards requiring combined overload, short-circuit, and earth leakage protection.

Стандартные функции

  • Combined Earth Leakage & Overcurrent Protection: Integrates thermal-magnetic overcurrent protection with high-speed earth leakage detection in a single device, reducing panel space and wiring complexity.
  • Adjustable Residual Current Sensitivity: Earth leakage sensitivity is selectable at 100 mA, 200 mA, or 500 mA to suit different protection requirements.
  • High-Speed Earth Leakage Detection: Maximum operating time of 0.1 s at rated residual current ensures rapid disconnection under fault conditions.
  • Reliable Breaking Capacity: Icu of 7.5 kA at 230 V AC and 5 kA at 400 V AC, with Ics equal to 100% of Icu at 400 V AC for dependable fault interruption.
  • Thermal-Magnetic Fixed Trip Unit: Fixed thermal protection at 30 A and magnetic short-circuit protection ensure consistent and predictable operation.
  • Compact & Space-Saving Design: Dimensions of 75 mm × 130 mm × 90 mm (W × H × D) with front lug or bar connections for easy panel installation.
  • High Durability & Global Compliance: 6,000 electrical operations and 10,000 mechanical operations; conforms to IEC 60947-2 and EN 60947-2 with CE marking.

Технические характеристики

ПараметрЦенить
ПроизводительМицубиси Электрик
МодельNV63-CV 3P 30A
РядWS-V series / NV-C (Economy Class)
Тип продуктаУстройство защитного отключения (УЗО)
Номинальный ток (In)30 А
Количество полюсов3 (3P)
Размер корпуса (AF)50 А
Чувствительность к остаточному току100 / 200 / 500 mA (adjustable)
Номинальное рабочее напряжение (Ue)100–440 V AC
Breaking Capacity (Icu) @ 400 V AC5 кА
Тип расцепителяThermal-Magnetic (fixed)
Габариты (Ш × В × Г)75 мм × 130 мм × 90 мм
СтандартыIEC 60947-2, EN 60947-2
