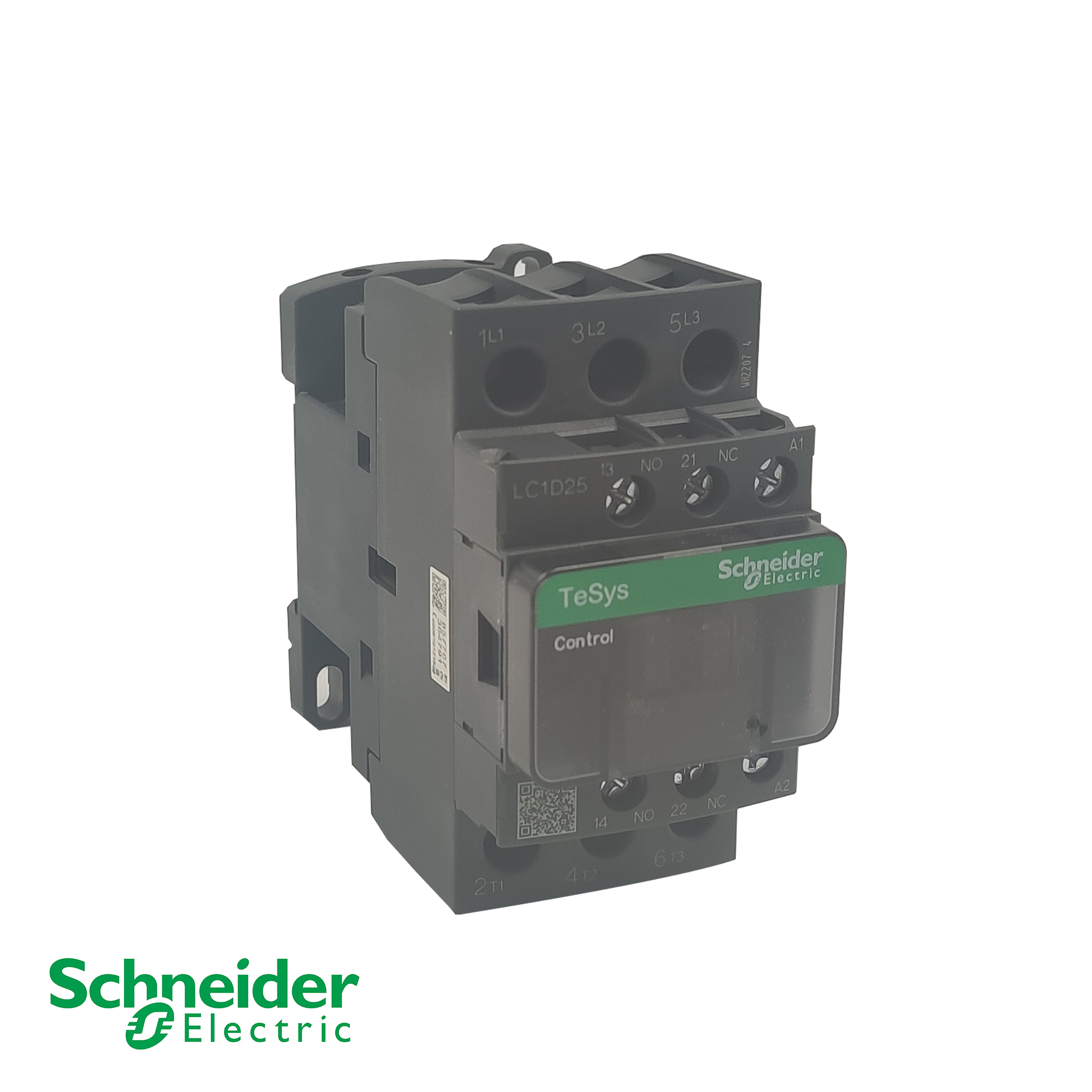

Schneider Electric LC1D25M7C TeSys D Contactor – 25A, 3‑Pole, 11kW @ 400V (AC‑3)

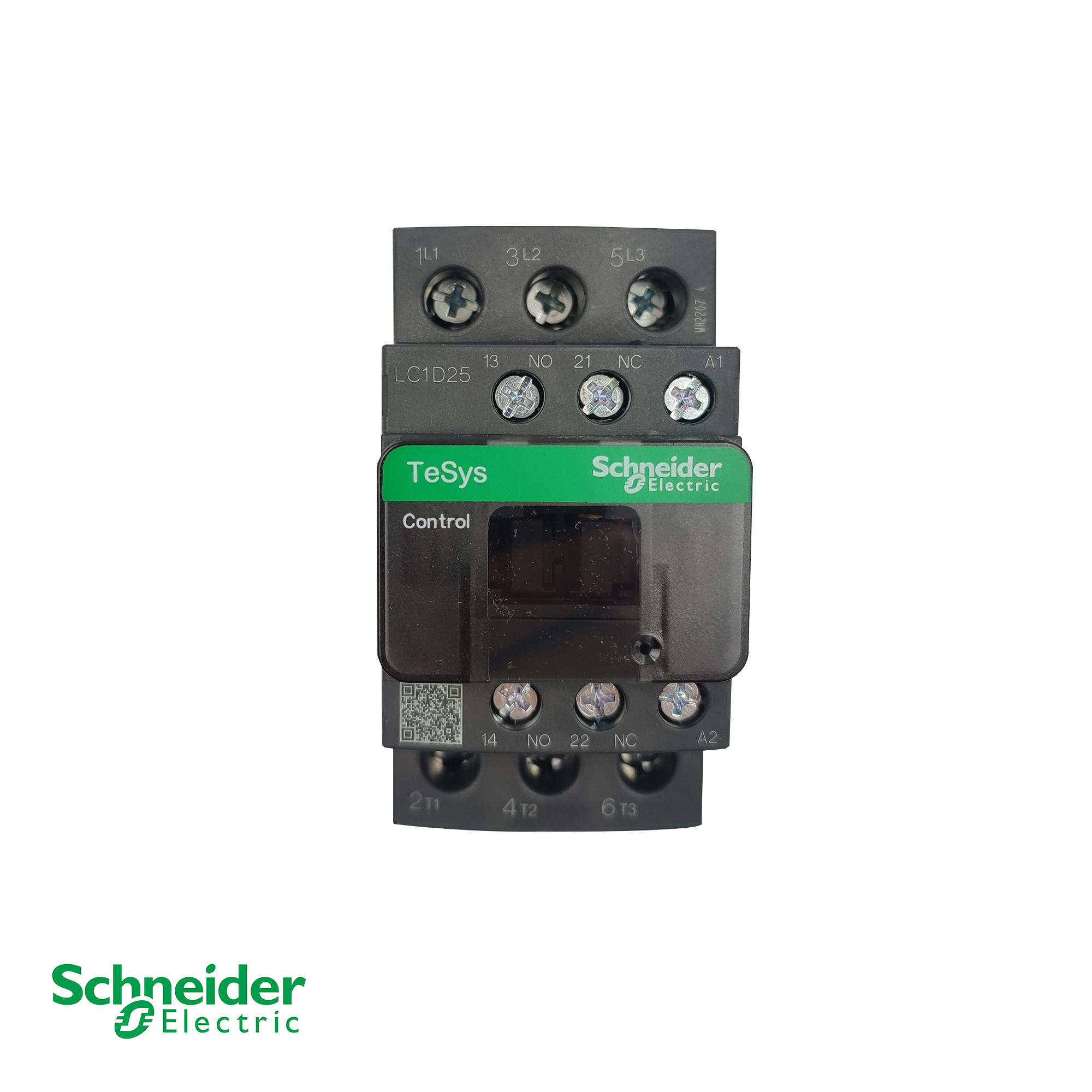

Schneider Electric LC1D25M7C TeSys D Contactor – 25A, 3‑Pole, 11kW @ 400V (AC‑3) - Image 2

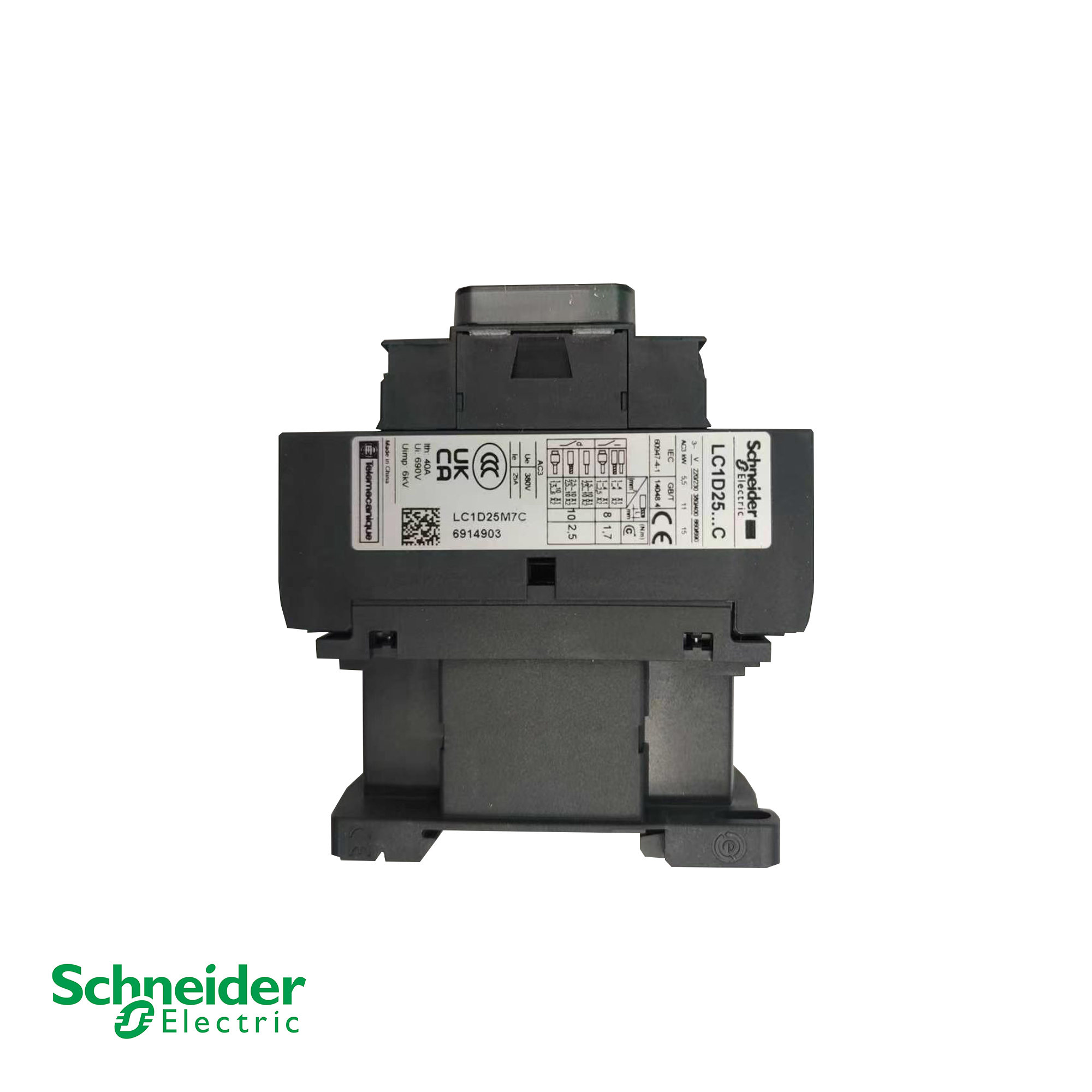

Schneider Electric LC1D25M7C TeSys D Contactor – 25A, 3‑Pole, 11kW @ 400V (AC‑3) - Image 3

Schneider Electric LC1D25M7C TeSys D Contactor – 25A, 3‑Pole, 11kW @ 400V (AC‑3)

ParameterNilai
Jenis ProdukKontaktor Kuasa
Siri / JenamaTeSys D / TeSys Deca – Schneider Electric
Nombor ModelLC1D25M7C
Bilangan Kutub3‑pole (3P)
Pole Contact Composition3 NO (normally open)
Rated Operational Current (Ie) – AC‑3/AC‑3e @ ≤440V25A
Rated Operational Current – AC‑1 @ ≤440V40A
Motor Power – AC‑3 @ 220‑240V5.5kW
Motor Power – AC‑3 @ 380‑400V11kW
Motor Power – AC‑3 @ 415‑440V11kW
Motor Power – AC‑3 @ 500V15kW
Motor Power – AC‑3 @ 660‑690V15kW
Voltan Operasi Terkadar (Ue)≤ 690V AC (25‑400Hz) / ≤ 300V DC
Voltan Kawalan Gegelung220V AC (50/60Hz)
Kenalan Bantu1 NO + 1 NC
Dimensi (T × L × D)85mm × 45mm × 92mm
PemasanganDIN rail (35mm) or screw fixing
Jangka Hayat Perkhidmatan Mekanikal15 million operations
Electrical Service Life – AC‑3Sehingga 2 juta operasi
Ambient Operating Temperature‑40°C to +60°C
Piawaian & PersijilanCCC, CE, UKCA
Dapatkan Sebut Harga

Penerangan Produk

Unit CPU Siri Mitsubishi MELSEC-L ialah pengawal logik boleh atur cara serba boleh yang direka bentuk untuk automasi perindustrian, menawarkan pelbagai model dengan I/O terbina dalam dari 28 hingga 4096 titik bergantung pada konfigurasi. Beroperasi pada bekalan DC 24V, CPU ini mempunyai kapasiti memori program dari 20K hingga 260K langkah, pemprosesan berkelajuan tinggi (arahan LD 9.5ns untuk model L06CPU/L26CPU), dan pilihan komunikasi Ethernet atau RS-232. Sesuai untuk aplikasi seperti kawalan proses dan automasi mesin, ia beroperasi dengan andal dari 0°C hingga 55°C dan menyokong reka bentuk I/O dan modular yang boleh dikembangkan.

Ciri-ciri Standard

  • Julat I/O: 28-4096 mata (boleh dikembangkan)

  • Keserasian Voltan: 24V DC

  • Perlindungan: IP20

  • Ingatan: Langkah 20K-260K

  • Ketahanan: Julat operasi 0°C hingga 55°C

  • Komunikasi: Ethernet, RS-232 (bergantung pada model)

Spesifikasi Teknikal

ModelKapasiti Program (Langkah-langkah)Titik I/OJenis KeluaranKomunikasi
L06CPU-P60 ribu4096SumberEthernet
L02CPU-P20 ribu1024SumberEthernet
L26CPU-P260K4096SumberEthernet
L02CPU20 ribu1024SingkiEthernet
L02SCPU20 ribu1024SingkiRS-232
L02SCPU-P20 ribu1024SumberRS-232
L06CPU60 ribu4096SingkiEthernet
L26CPU260K4096SingkiEthernet
L26CPU-BT260K4096SingkiEthernet + CC-Link
L26CPU-PBT260K4096SumberEthernet + CC-Link

Pengilang: Schneider Electric
Model: LC1D25M7C
Jenis: Kontaktor Kuasa
Siri: TeSys D / TeSys Deca
Rated Current (AC‑3 @ ≤440V): 25A
Kuasa Motor (AC‑3 @ 400V): 11kW
Voltan Gegelung: 220V AC (50/60Hz)
Kenalan Bantu: 1 NO + 1 NC
Sambungan: Terminal pengapit skru

The Schneider Electric LC1D25M7C is a 3‑pole contactor from the TeSys D series, designed for motor control and resistive load switching in industrial applications. Rated at 25A (AC‑3) with a motor power of 11kW at 400V, it is ideal for motors, pumps, compressors, conveyors, and HVAC systems[reference:0]. The 220V AC coil with dual‑frequency operation (50/60Hz) enables seamless integration with standard AC control systems[reference:1][reference:2]. Built for demanding environments, the TeSys D series offers a compact 45mm width design, high contact reliability, and multi‑standard certifications including CCC, CE, and UKCA[reference:3][reference:4].

  • Reliable Motor Switching: Rated at 25A (AC‑3/AC‑3e) with 11kW motor power at 400V, suitable for a wide range of motor and load switching applications[reference:5].

  • Dual‑Frequency AC Coil: 220V AC coil (50/60Hz) enables seamless integration with standard AC control circuits[reference:6].

  • Kenalan Bantu Bersepadu: Built‑in 1 NO + 1 NC auxiliary contacts reduce external blocks and simplify control wiring[reference:7].

  • Compact & Flexible Mounting: 45mm width with DIN‑rail (35mm) or screw fixing options for versatile panel installation[reference:8][reference:9].

  • High Durability: Electrical life up to 2 million cycles (AC‑3) and mechanical life up to 15 million cycles[reference:10][reference:11].

  • Wide Operating Temperature: Reliable performance from ‑40°C to +60°C, suitable for harsh industrial environments[reference:12].

  • Global Approvals: Certified to CCC, CE, and UKCA, meeting international quality and safety standards[reference:13].
