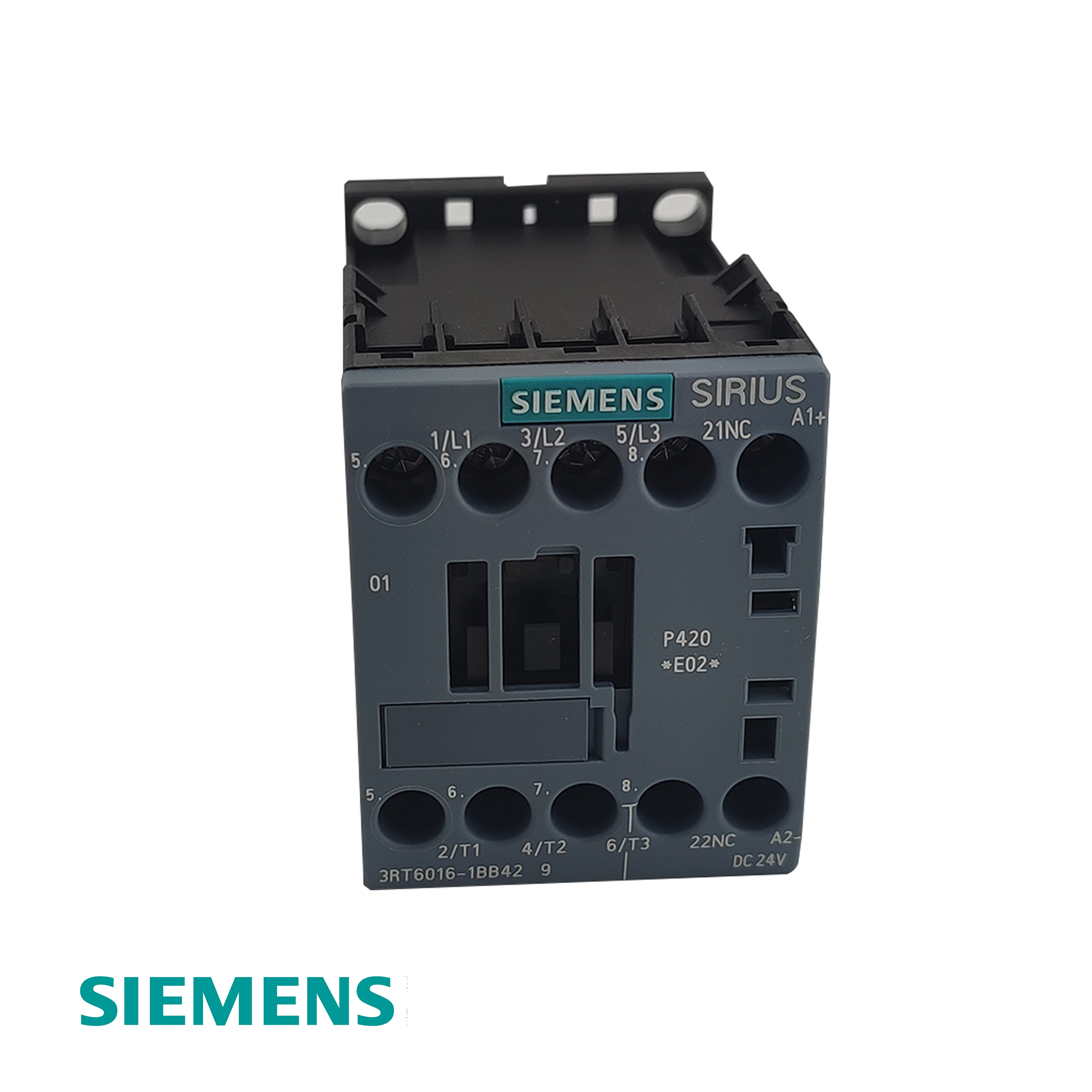

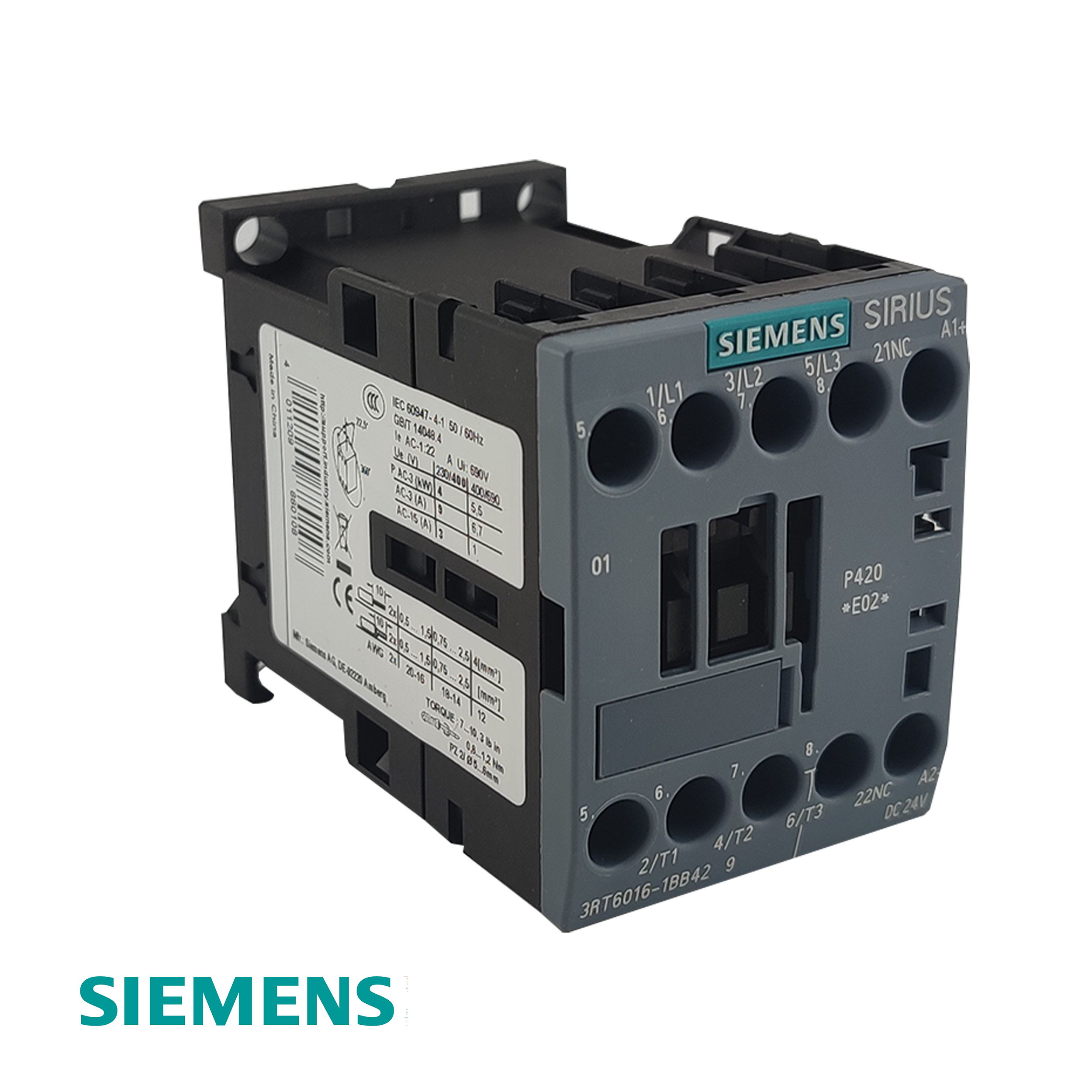

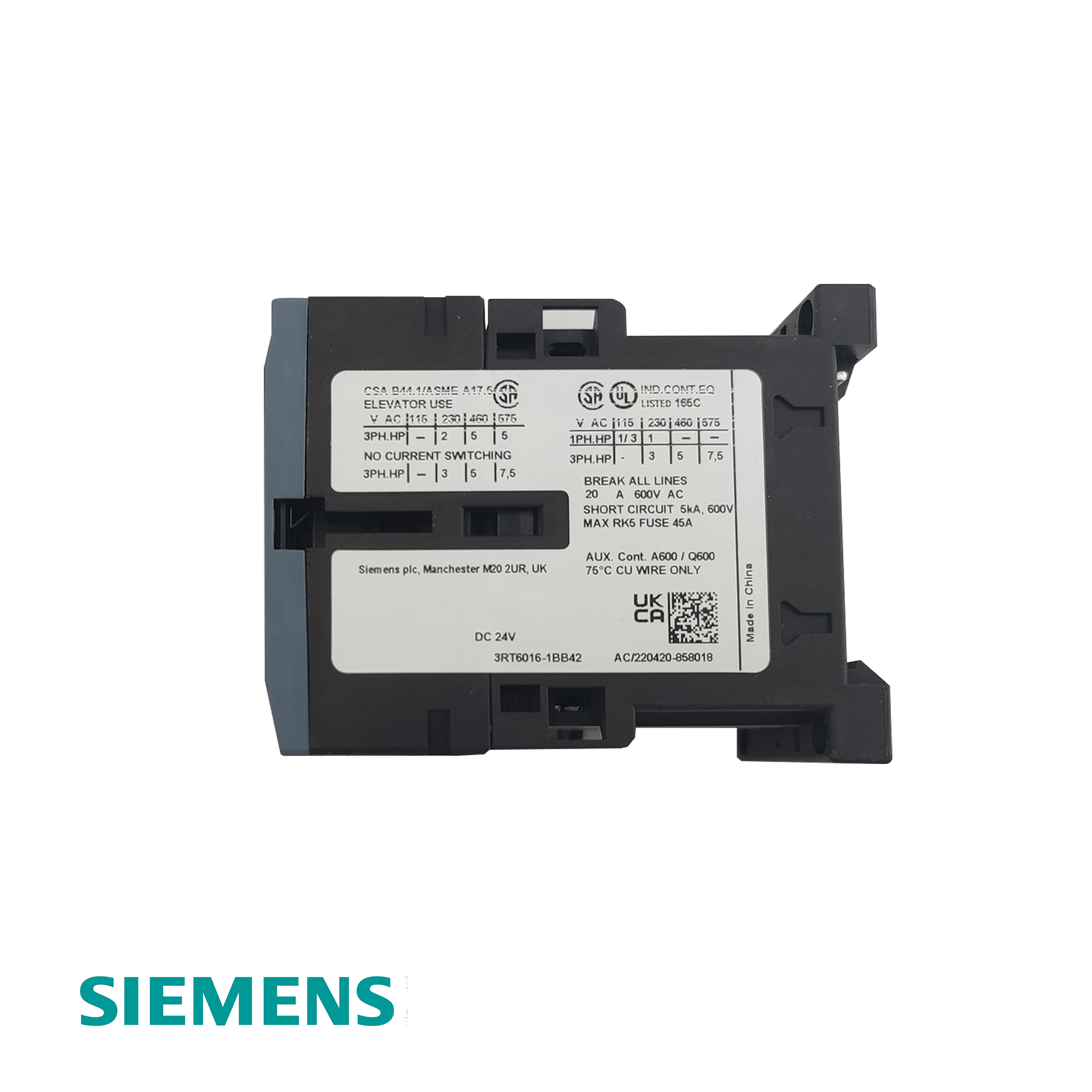

Contactor de potencia Siemens 3RT6016‑1BB42 SIRIUS – 9A, 3 polos, 4kW a 400V (AC‑3)

Fabricante: Siemens
Modelo: 3RT6016-1BB42
Tipo: SIRIUS 3RT6 Power Contactor
Corriente nominal: 9 A (AC-3 @ 400 V)
Potencia del motor: 4 kW @ 400 V AC
Voltaje de la bobina: 24 V CC
Contactos auxiliares: 1 NC
Tamaño: S00

Descripción del Producto

The Siemens 3RT6016-1BB42 is a size S00 power contactor from the SIRIUS 3RT6 series, designed for switching motors and power circuits in industrial control applications. It is rated 9 A in AC-3/AC-3e category at 400 V AC, corresponding to a motor power of 4 kW. The contactor features a 24 V DC control coil, enabling direct integration with PLC outputs and electronic control systems without additional interface relays. It provides one normally closed (NC) auxiliary contact and uses screw terminals for the main and auxiliary circuits. With a compact 45 mm width, 1000 V rated insulation voltage, and a mechanical service life of 10 million operating cycles, it is suitable for small motors, pumps, conveyors, and lighting circuits in demanding industrial environments.

Características estándar

  • 9 A / 4 kW AC-3 Rating: Rated operational current of 9 A in AC-3/AC-3e category at 400 V AC, suitable for direct-on-line starting of small three-phase motors up to 4 kW.
  • 24 V DC Control Coil: Low-power DC coil enables direct interface with PLC outputs and electronic control circuits without additional relays.
  • 1 NC Auxiliary Contact: Built-in normally closed auxiliary contact provides an integrated signal contact for status feedback and control interlocking.
  • Tamaño compacto S00: Space-saving 45 mm width design with screw terminals, ideal for control panels with limited mounting space.
  • High Insulation and Impulse Withstand: Rated insulation voltage of 1000 V and rated impulse withstand voltage of 8 kV ensure dependable performance in industrial power circuits.
  • Extended Mechanical Durability: Mechanical service life of 10 million operating cycles ensures long-term reliability in frequent switching applications.
  • Conexión de terminal de tornillo: Reliable screw-type connections ensure secure wiring and low contact resistance for both main and auxiliary circuits.

Especificaciones técnicas

ParámetroValor
FabricanteSiemens
Modelo3RT6016-1BB42
SerieSIRIUS 3RT6
Tipo de productoContactor de potencia
TamañoS00
Rated Operational Current (AC-3 @ 400 V)9 A
Motor Power (AC-3 @ 400 V)4 kW
Voltaje de control de la bobina24 V CC
Contactos auxiliares1 NC
Número de polos3
Tensión de aislamiento nominal (Ui)1000 V
Tensión nominal soportada al impulso (Uimp)8 kV
Tipo de conexiónTerminales de tornillo
Dimensiones (An × Al × Pr)45 mm × 57.5 mm × 73 mm
Peso neto299.4 g
Vida útil mecánica10.000.000 de ciclos de funcionamiento
