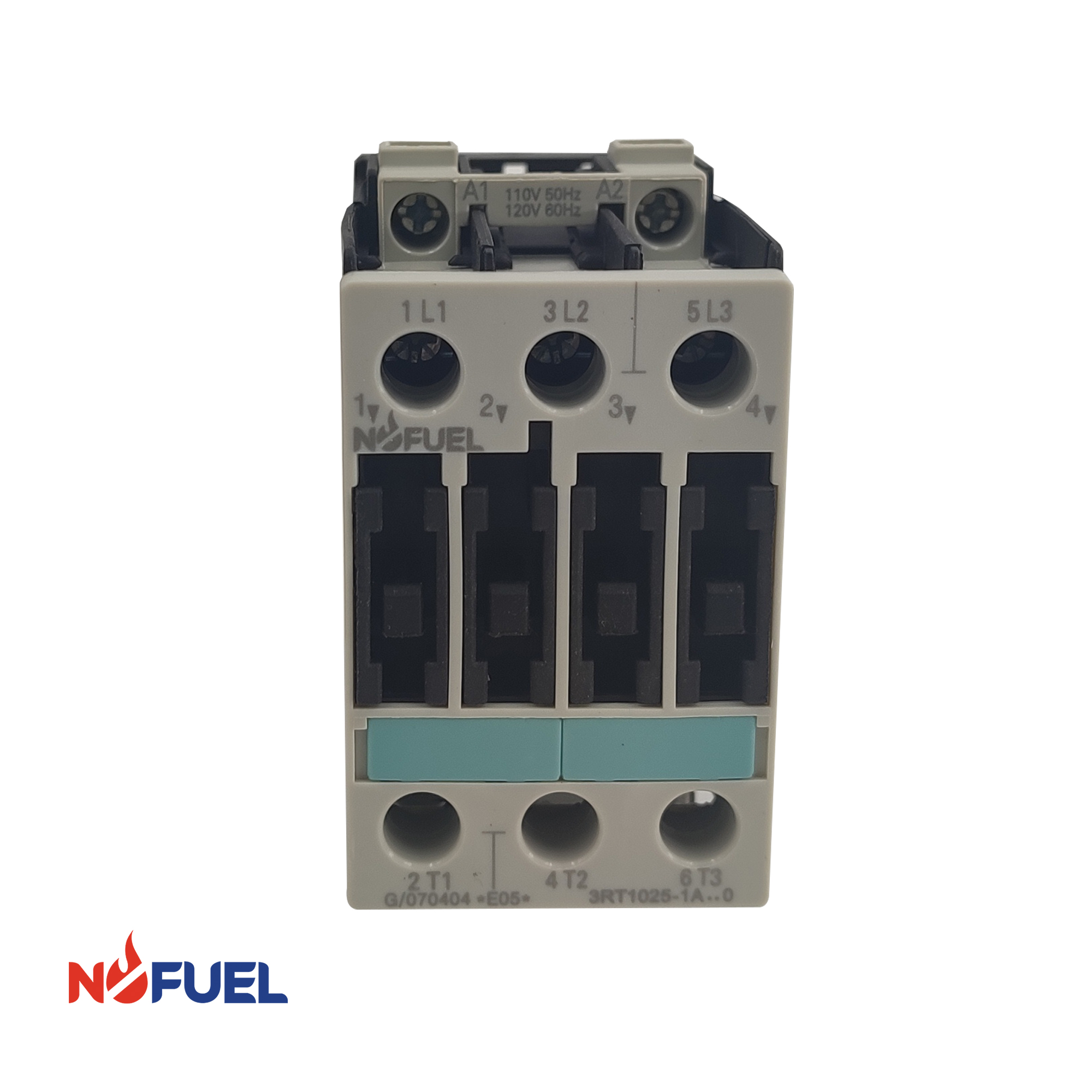

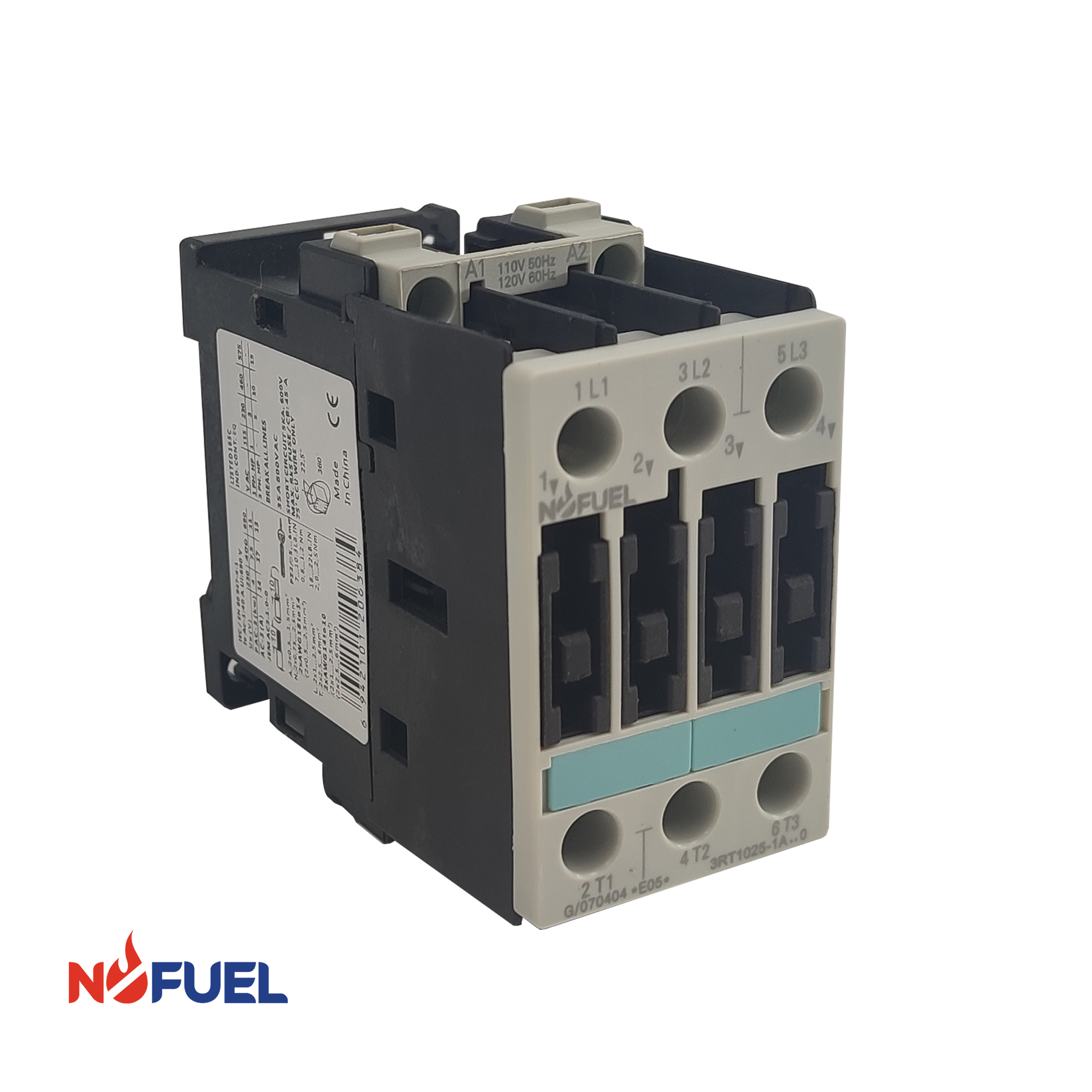

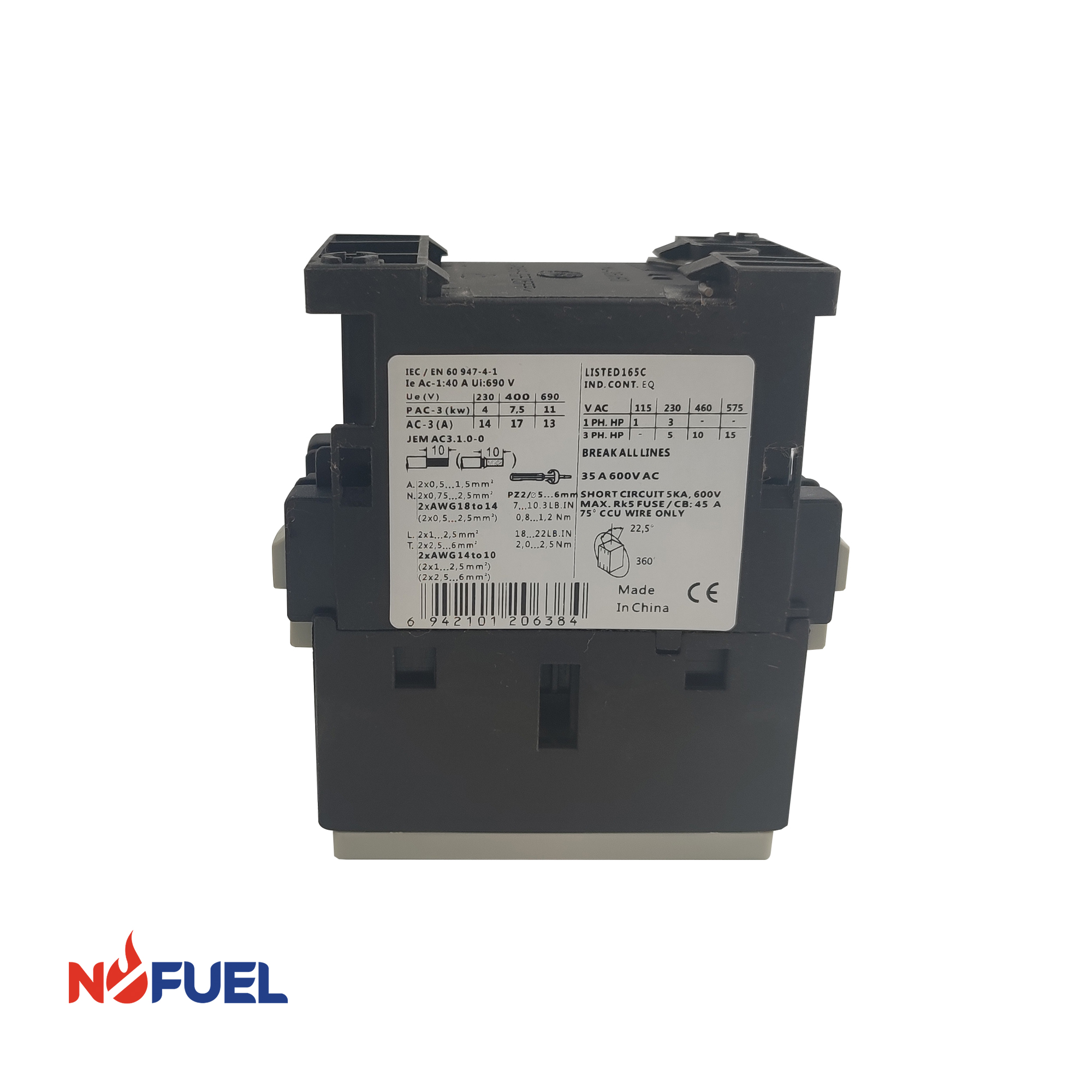

Contactor de CA NOFUEL 3RT1025 de 3 polos, 17 A, AC-3, 7,5 kW, 400 V, bastidor S0. Reemplazo para la serie Siemens 3RT1025.

Descripción del Producto

NOFUEL 3RT1025 is S0 frame 3-pole AC power contactor fully dimensionally interchangeable with Siemens original 3RT1025 series, designed for frequent on-off control of three-phase AC motors and industrial resistive loads under AC-3 duty cycle. It delivers rated operational current of 17 A with matched motor power 7.5 kW at 400 V, equipped with built-in 1NO auxiliary contact for equipment running signal feedback. This contactor adopts screw terminal wiring, supports standard 35mm DIN rail and direct screw mounting, features IP20 front touch safety insulation, and complies with CE certification. Multiple AC coil voltage options (24V/110V/120V/220V/240V/480V) are available, widely applied in machine tools, water pumps, ventilation fans and medium-sized automation control cabinets as cost-effective replacement for discontinued original Siemens contactors.

Características estándar

• Intercambiabilidad mecánica total: Identical S0 housing dimension, terminal layout and mounting hole position with Siemens 3RT1025 for direct plug-and-play replacement.
• Stable 3-pole main contact system: Three normally open alloy main contacts with anti-arc design for frequent motor start-stop switching.
• Contacto auxiliar 1NO integrado: Contacto auxiliar NA simple preinstalado de fábrica para enclavamiento de circuito y salida de señal de estado de funcionamiento.
• Multi-voltage AC coil options: Optional coils cover 24V to 480V AC to match global industrial control power supply standards.
• Dual mounting solution: Supports snap-on assembly on 35mm DIN EN rail and independent screw fixing for flexible cabinet layout.
• IP20 safety insulation: Insulated front terminal cover prevents accidental contact with live conductive parts during maintenance.
• Long mechanical service life: Optimized electromagnetic structure realizes up to 10 million mechanical switching cycles for continuous industrial operation.

Especificaciones técnicas

Parámetro	Valor
Marca	SIN COMBUSTIBLE (BUZZ Eléctrico)
Modelo completo	3RT1025 Series
Replacement Original Model	Siemens 3RT1025 Series
Categoría de producto	Contactor de potencia de CA trifásico
Tamaño del marco	S0 Compact Frame
Corriente nominal AC-3 a 400 V	17 A
Rated Motor Power @400V AC-3	7,5 kW
Configuración del contacto principal	3 NO
Contacto auxiliar incorporado	1 NO
Voltaje máximo del circuito principal	690 V CA
Método de montaje	Montaje en riel DIN de 35 mm / Montaje con tornillos
Terminal Connection Type	Terminal de tornillo
Clase de protección frontal	IP20
