Pressure Sensor Response Time: Rise Time, T63 & T90 Explained

Respuesta rápida:

Pressure sensor response time is how long a sensor takes to show a pressure change at its output. Manufacturers publish the same figure three ways — rise time (10–90%), T63 and T90 — and T90 is roughly 2.3 times T63, so two identical sensors can look 2.3 times apart on paper. Dead time, damping and your PLC add more. This guide defines each term, converts between them, and shows what to specify for hydraulic, water and digital pressure sensors. Simply Buy supplies them across multiple brands.

What will this guide give you?

Three quotations for the same hydraulic power unit come back with numbers you cannot rank as written. One datasheet promises ≤ 1 ms, a second publishes T90 = 10 ms, a third headlines 90 ms — a ninety-fold spread nobody can defend in a design review. Each answers a different question, and that gap is where pressure sensor response time becomes an argument instead of a specification.

Here is what you get: plain-English definitions of response time, rise time, T63 and T90, the arithmetic that puts any supplier’s figure on a comparable basis, and two tables: manufacturer-published specifications, and a selection table matching response-time class to application. It is written for B2B distributors, system integrators, EPC buyers and maintenance teams, and every figure below is the manufacturer’s own number with the definition that vendor publishes.

Where does a sensor’s response time actually come from?

A pressure sensor is a chain, not a component. KELLER Pressure, testing its own step response, is blunt about the dominant link: “In most cases, it is not the electronics, but the mechanical-fluidic coupling.”

From the process outward: the connection and impulse line, which add volume and restrict flow; the diaphragm, oil fill and sensing element, where pressure arrives mechanically before electronics see it; the conditioning, damping and output stage, whatever the signal path; and finally your own system — input filter, PLC scan time, HMI refresh.

The most useful field finding there: “air bubbles in the system are the biggest killer of dynamics,” and in oil-filled systems “even a small amount of residual air has a significant effect on the step response.” A 1 ms sensor on a cavity that has not been bled is not a 1 ms sensor.

Still choosing between measuring principles? Our overview of the main types of pressure sensors explains where each one fits, and the pressure sensors category shows the models we stock.

What do rise time, T63 and T90 mean in practice?

A step response applies a sudden pressure change and records how the output climbs. It never jumps, so where you stop measuring decides the number you get.

WIKA defines response time as “the interval required by the output signal of a pressure sensor to display a change in the applied pressure,” and calls the rise time “of greatest practical relevance.” Its worked example: the interval in which a step “from 10 to 90% of the full span (e.g. from 60 to 540 bar for a 0 … 600 bar pressure sensor) leads to a defined change in output signal of 10 to 90% of the final value.”

Yokogawa defines the same words differently: response time is “the amount of time (in seconds) it takes for the output signal to reach 63.2% of an instantaneous full-scale pressure change,” because transmitters “respond to pressure changes as a first-order system.”

Both are correct; they are not interchangeable, and that is why pressure sensor response time causes so many purchasing arguments.

How do T63 and T90 relate to each other?

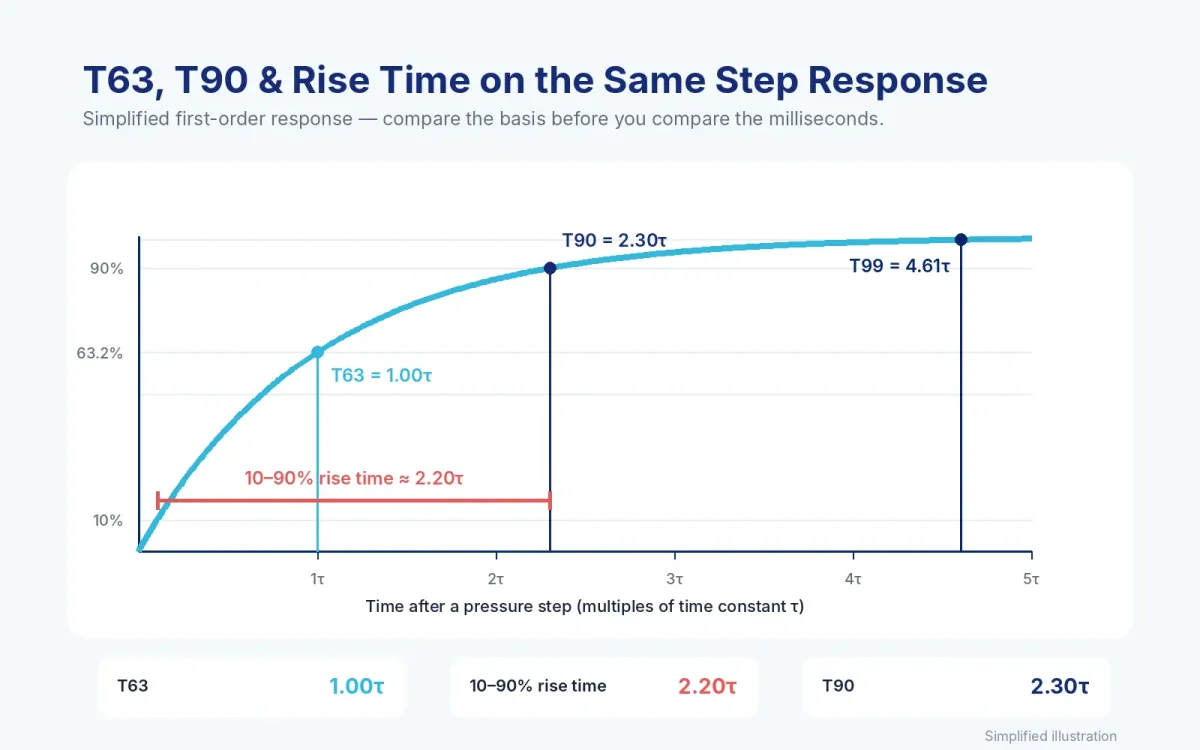

The 63.2% figure comes from the physics. A first-order system approaches its final value along output(t) = 1 − e^(−t/τ), where τ (tau) is the time constant. Solving that equation gives the numbers worth carrying:

Two consequences matter. T90 is about 2.3 times T63 on the same sensor, and a 10–90% rise time sits within about 5% of T90 — close enough that vendors treat the labels as interchangeable, which is why WIKA writes “T90 or 10 … 90%”.

There is also a bridge to bandwidth: since τ = 1 / (2π × f_c), a 10–90% rise time works out to roughly 0.35 / f_c, so a sensor with T63 = 1 ms is about 159 Hz of bandwidth, a T90 of about 2.3 ms and a T99 of about 4.6 ms.

How do you convert T63 to T90 before comparing quotes?

One datasheet prints “response time: 1 ms (T63)”; another “2.3 ms (T90)”. Identical hardware; on paper, the first looks twice as fast. Convert before you rank:

• T63 → T90: multiply by 2.3
• 10–90% rise time → T90: multiply by about 1.05
• T90 → T99: multiply by 2.0

State the basis in the purchase order. If a supplier will not say which basis their figure uses, that is your answer.

What is the difference between dead time and time constant?

Yokogawa splits total response time as RTt = Td + Tc, where Td is dead time, “the amount of time for the transmitter to initially respond to the change in pressure,” and Tc is the time constant — mechanical plus electronic. Its own example: transmitters with Hastelloy C-276 diaphragms “have a response time of 90 ms (including a dead time of 45 ms).” Half of that figure is pure delay before the output moves at all.

Dead time is a transport delay. No controller tuning or filter removes it; it consumes phase margin and caps how fast a loop can run.

Should you compare bandwidth or sample rate?

Analogue outputs are governed by the limiting frequency — the −3 dB point up to which pressure changes pass with no more than 3 dB attenuation, about 70% of amplitude. Digital outputs are governed by the sample rate: “how often a signal is recorded and processed internally per second.” KELLER states the rule plainly: “The limiting frequency is decisive for analogue outputs and the sampling rate for digital outputs,” and notes that on a digital sensor “the dead time is part of the response time.” Its own fast analogue electronics reach “typically less than 10 µs,” while its digital X-Line needs “around 2 to 4 ms, depending on the selected output signal.” Our note on digital versus analog sensors covers the practical differences.

Which “fast” numbers are not response times?

Four neighbours on the datasheet get mistaken for pressure sensor response time.

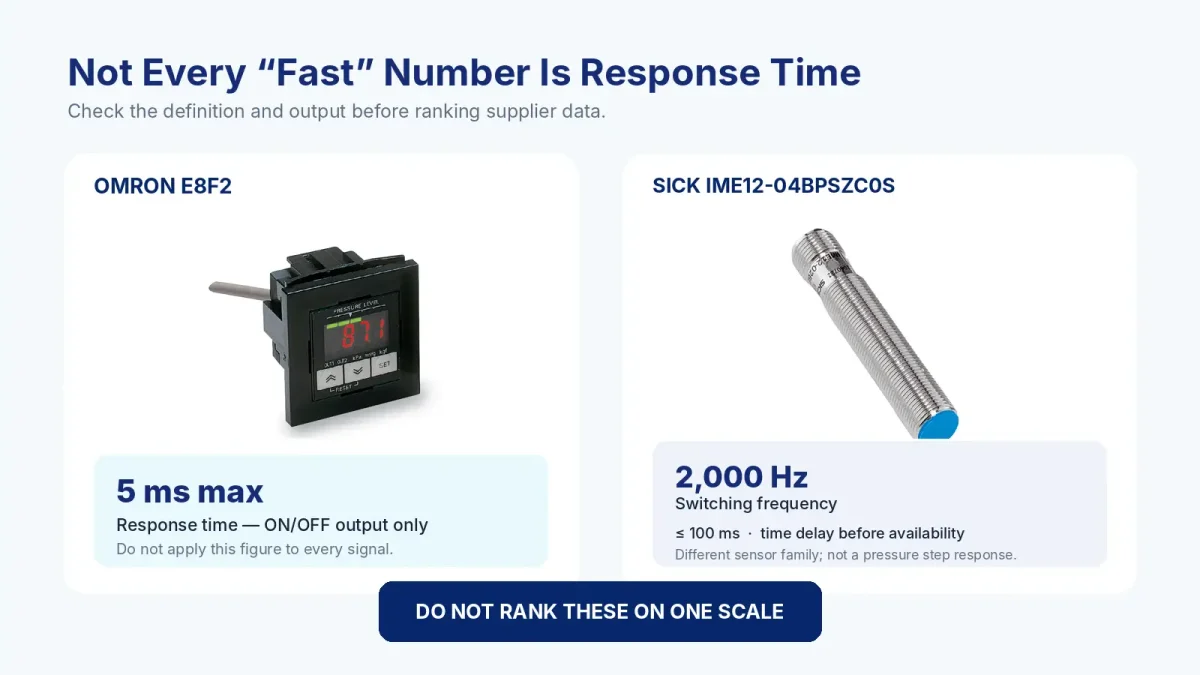

• Switching frequency. The SICK IME12-04BPSZC0S, an inductive proximity sensor stocked by Simply Buy, publishes 2,000 Hz. That is a discrete-output repetition rate at a 4 mm sensing range, not the time for a pressure output to reach 90% of a step; switching sensors and analogue transmitters do not share a scale.
• Time delay before availability. The same sensor lists ≤ 100 ms — how long after power-up before its output is valid. Critical on a machine that powers down between cycles; irrelevant to tracking a pressure change.
• Damping and filter settings. A filter that steadies a noisy reading also slows the sensor down. Ask which setting it was measured at.
• Display refresh and PLC scan. The display updates far more slowly than the analogue signal behind it, and your input filter may be slower still. A pressure switch reports a threshold, not a continuous value.

What response times do manufacturers actually publish?

Each row is a manufacturer-published figure with its vendor’s own definition. Read the third column before the second.

The legitimate span of pressure sensor response time runs across four orders of magnitude, and the fastest number is not automatically the right purchase. If you would rather send the application than argue the datasheet, email or message your pressure range, output type and the response-time class you need — a full BOM works as well as a single line. We return matched models with each manufacturer’s published figure, stock status and lead time.
