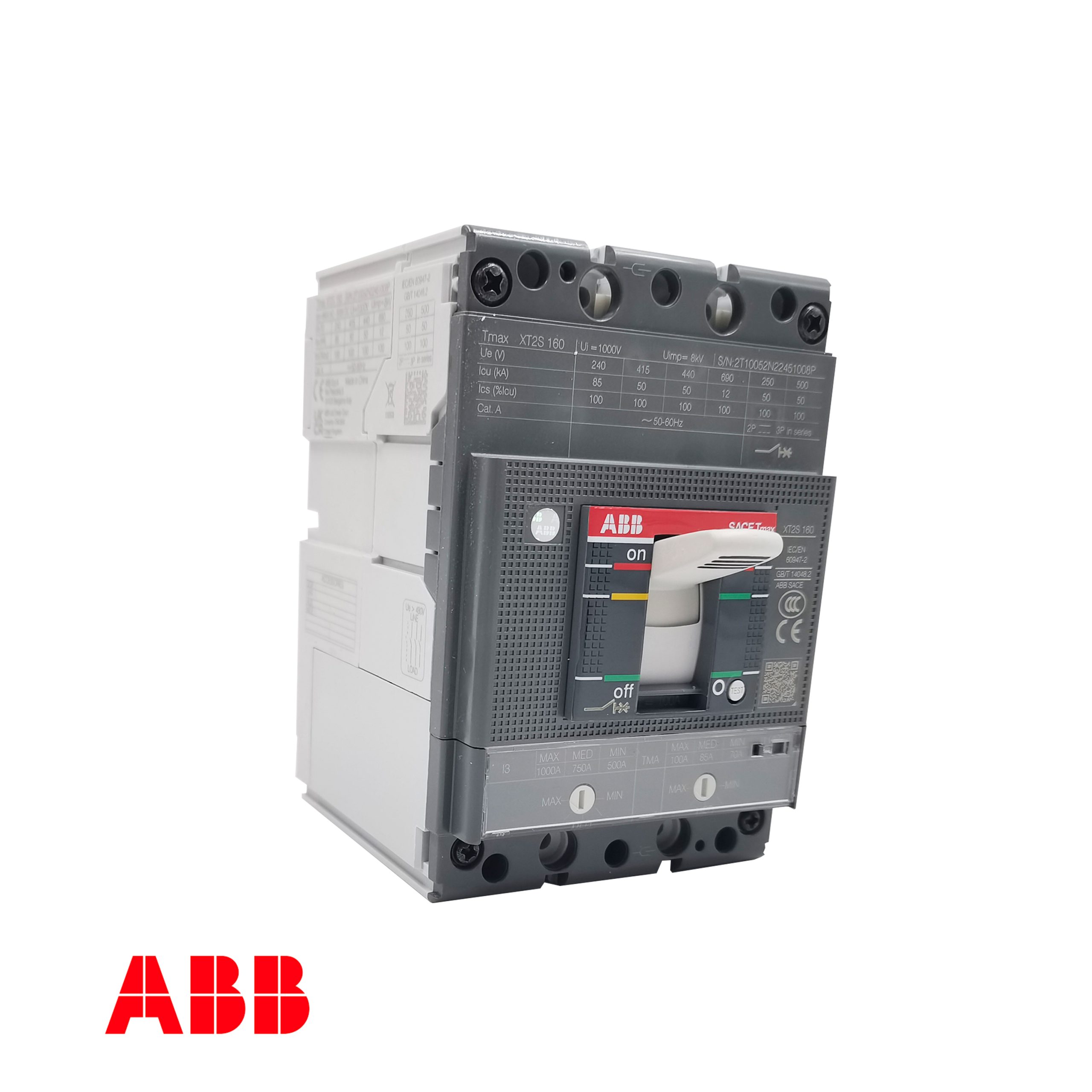

ABB XT2S 160 TMA 100‑1000 FF 3P SACE Tmax XT 몰드 케이스 회로 차단기 – 100A, 3극, 415V에서 50kA, 열자기 트립

제조업체: 씨줄
모델: XT2S 160 TMA 100-1000 FF 3P
유형: 몰드형 케이스 회로 차단기
정격 전류: 100 에이
전봇대 개수: 3
파괴 용량: 50 kA @ 415 V AC
Thermal Setting Range: 70…100 A
Magnetic Setting Range: 500…1000 A

제품 설명

The ABB XT2S 160 TMA 100-1000 FF 3P is a fixed three-pole molded case circuit breaker from the SACE Tmax XT series, designed for reliable protection in low-voltage electrical distribution systems. It features a TMA thermal-magnetic trip unit with an adjustable thermal overload setting from 70 A to 100 A and an adjustable magnetic short-circuit setting from 500 A to 1000 A. The breaker delivers an ultimate breaking capacity of 50 kA at 415 V AC and 12 kA at 690 V AC, ensuring robust fault current interruption across diverse voltage levels. Its compact frame with front bolt terminals simplifies installation in switchboards and distribution panels. Typical applications include transformer, generator, and installation protection in industrial and commercial facilities.

기본 사양

  • Adjustable Thermal-Magnetic TMA Release: Provides adjustable thermal overload protection from 70 A to 100 A and adjustable magnetic short-circuit protection from 500 A to 1000 A for precise coordination.
  • 높은 파괴 강도: Ultimate short-circuit breaking capacity of 50 kA at 415 V AC and 12 kA at 690 V AC ensures reliable fault interruption.
  • Three-Pole Fixed Configuration: Compact three-pole design with fixed front bolt terminals simplifies installation in switchboards and distribution panels.
  • 넓은 전압 범위: Rated for operation up to 690 V AC and 500 V DC, accommodating a broad range of industrial applications.
  • Compact Dimensions: Space-saving frame measuring 90 mm × 130 mm × 82.5 mm (W × H × D), suitable for panel mounting in confined enclosures.
  • IP20 Protection Degree: Finger-safe protection against accidental contact with live parts, suitable for general industrial use.
  • IEC 60947-2 Compliance: Conforms to the international standard for low-voltage circuit breakers, ensuring worldwide acceptance.

기술 사양

매개변수값
제조업체씨줄
모델XT2S 160 TMA 100-1000 FF 3P
주문 번호1SDA067558R1
시리즈SACE Tmax XT
제품 유형몰드형 케이스 회로 차단기(MCCB)
정격 전류(인치)100 에이
프레임 크기 (Iu)160 에이
전봇대 개수3
Thermal Overload Setting (Ir)70…100 A
Magnetic Short-Circuit Setting (Im)500…1000 A
정격 작동 전압690V 교류 / 500V 직류
차단 용량(Icu) @ 415 V AC50kA
연결 유형Front bolt terminals
표준IEC 60947-2
