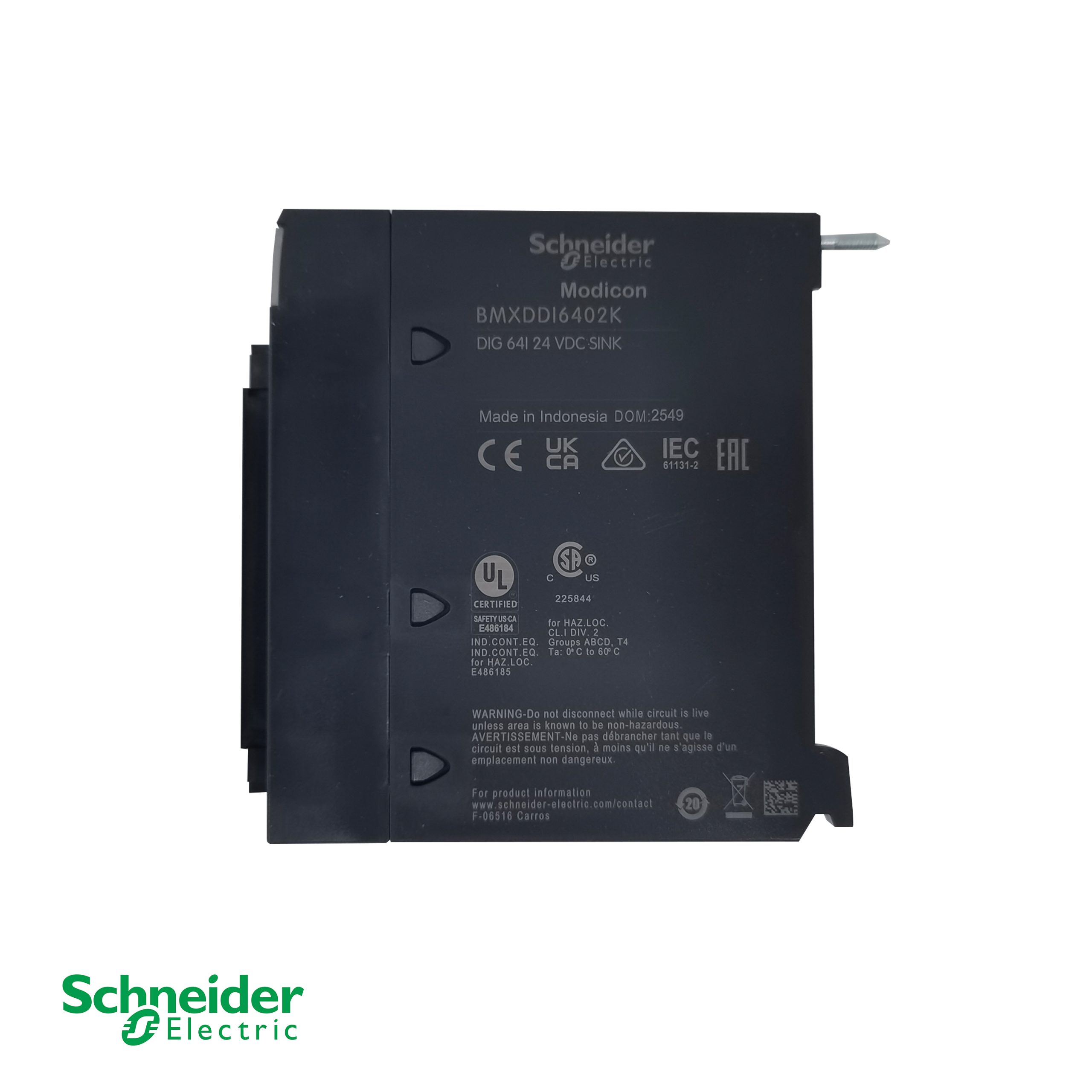

シュナイダーエレクトリック BMXDDI6402K Modicon X80 ディスクリート入力モジュール – 64チャンネル、24V DC 正論理/シンク、IP20

メーカー: シュナイダーエレクトリック
モデル: BMXDDI6402K
タイプ: ディスクリート入力モジュール
入力数: 64
入力電圧: 24 V DC (Positive Logic)
応答時間: 4 ms typical
保護等級: IP20

製品説明

The Schneider Electric BMXDDI6402K is a high-density discrete input module from the Modicon X80 range, designed for use with Modicon M340 and M580 programmable automation controllers. It provides 64 electrically isolated 24 V DC positive logic (sink) inputs in a single 32 mm wide module, maximizing I/O density in control cabinets. The module features an input impedance of 40 kΩ and a typical input current of 0.6 mA at 24 V DC, with a typical response time of 4 ms (7 ms maximum). It includes a built-in sensor power supply of 19–30 V DC and per-group short-circuit protection via external 0.5 A fast-blow fuses. Diagnostic LEDs for channel status, module run, and error conditions simplify commissioning and troubleshooting. Typical applications include signal acquisition from sensors, switches, and proximity devices in industrial automation systems.

標準機能

  • 64 Isolated Input Channels: High-density 64-channel design in a single 32 mm module saves cabinet space and reduces system cost.
  • 24 V DC Positive Logic (Sink): Standard positive logic input with 0.6 mA input current at 24 V DC ensures compatibility with a wide range of industrial sensors.
  • 高速応答時間: Typical response time of 4 ms (7 ms maximum) supports time-critical signal acquisition in automation processes.
  • Integrated Sensor Power Supply: Built-in 19–30 V DC sensor power supply simplifies wiring by powering connected field devices directly from the module.
  • Comprehensive Diagnostics: Per-channel status LEDs plus module RUN and ERR indicators enable rapid fault identification and maintenance.
  • Robust Isolation and Protection: 1500 V AC isolation between primary and secondary circuits; 500 V DC between channel groups; external 0.5 A fast-blow fuse per group.
  • Compact DIN Rail Mounting: 32 mm wide module with IP20 protection, operating temperature 0–60 °C, and 0.145 kg weight for easy panel integration.

技術仕様

パラメータ価値
メーカーシュナイダーエレクトリック
モデルBMXDDI6402K
シリーズモディコンX80
製品タイプディスクリート入力モジュール
入力数64 (electrically isolated)
Input Voltage / Logic24 V DC, positive logic (sink)
入力電流0.6 mA at 24 V DC
入力インピーダンス40 kΩ
標準応答時間4 ms (7 ms maximum)
センサー電源19–30 V DC
電力損失3 W
保護の程度IP20
動作温度0–60 °C
標準IEC 61131-2, UL 508, CSA C22.2
