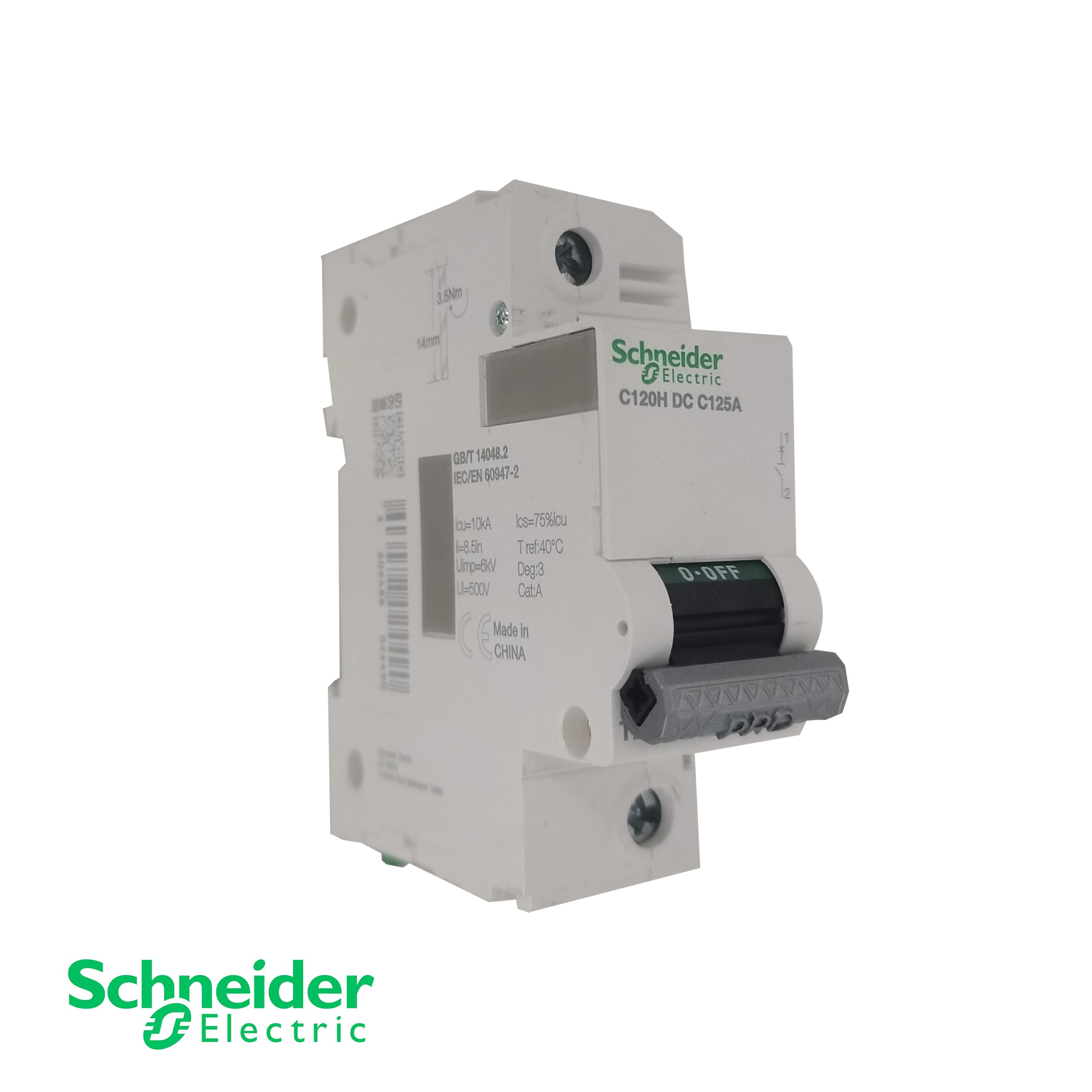

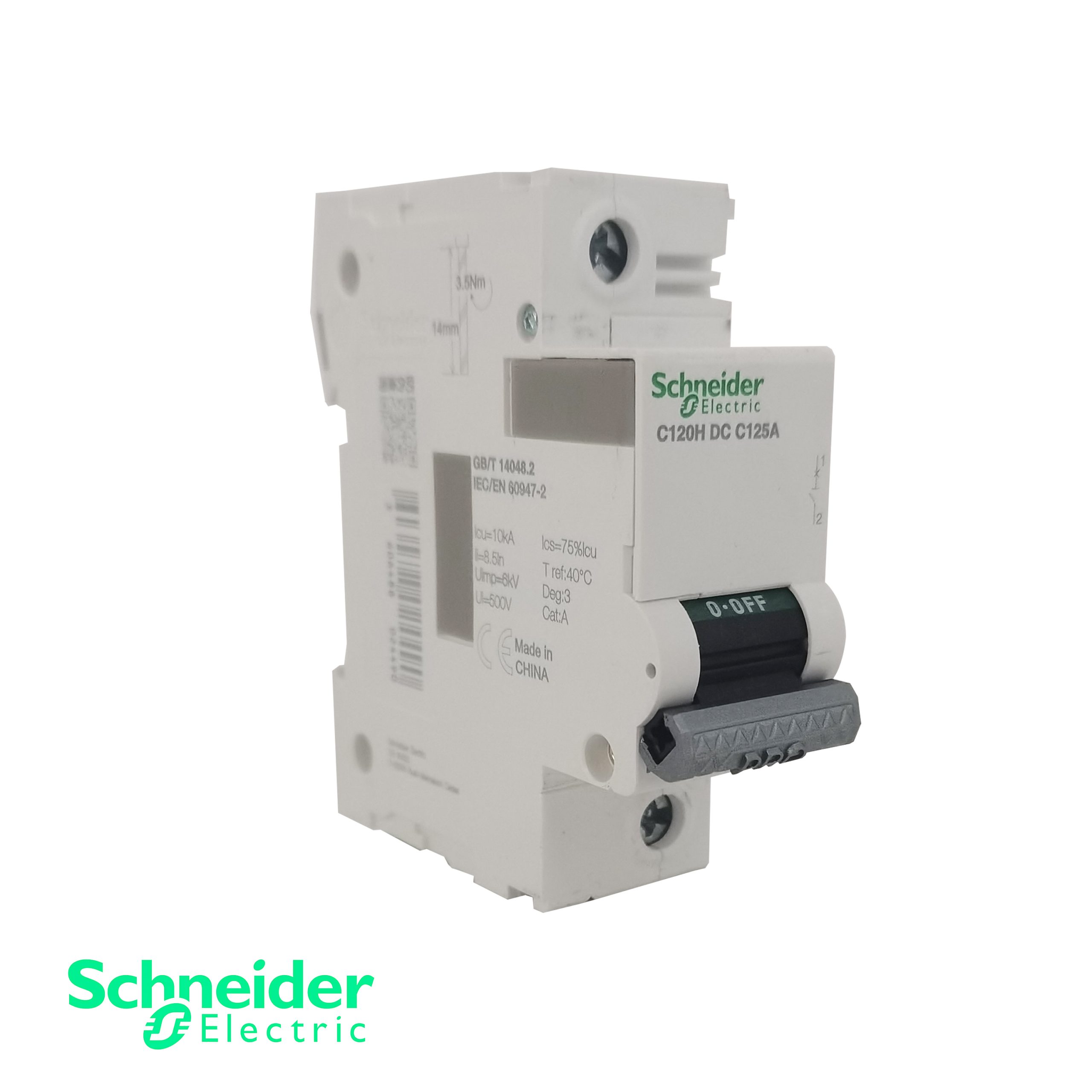

シュナイダーエレクトリック A97HC192 A9 PRO C120H DC回路ブレーカー – 1P、125A、10kA、Cカーブ、80VDC

メーカー: シュナイダーエレクトリック
モデル: A97HC192
タイプ: DC Miniature Circuit Breaker
定格電流: 125A
極数: 1P
定格電圧: 80 V DC
破壊能力: 10 kA
トリップ特性: Cカーブ

製品説明

The Schneider Electric A97HC192 is a single-pole DC miniature circuit breaker from the A9 PRO C120H DC series, designed for reliable overcurrent and short-circuit protection in DC power distribution systems. It features a rated current of 125 A with a C-curve tripping characteristic and a breaking capacity of 10 kA at 80 V DC. The breaker is engineered for demanding applications including battery protection, photovoltaic installations, and industrial DC control circuits. With an 18 mm modular width and standard 35 mm DIN rail mounting, it provides space-efficient installation while meeting IEC/EN 60947-2 standards. The unit operates reliably across a temperature range of -40 °C to +70 °C and is suitable for use in pollution degree 3 environments.

標準機能

  • 125 A Rated Current: High current capacity suitable for large DC loads in battery and photovoltaic systems.
  • C-Curve Tripping Characteristic: Provides protection against moderate inrush currents, ideal for inductive and resistive DC loads.
  • 10 kA Breaking Capacity: Robust fault current interruption at 80 V DC ensures reliable short-circuit protection.
  • 1-Pole Compact Design: 18 mm width enables space-efficient installation in distribution boards and control cabinets.
  • DINレール取り付け: Standard 35 mm DIN rail mounting ensures quick and secure installation.
  • 広い温度範囲: Operates reliably from -40 °C to +70 °C, suitable for harsh industrial environments.
  • IEC/EN 60947-2 Compliance: Certified to international low-voltage switchgear standards for worldwide acceptance.

技術仕様

パラメータ価値
メーカーシュナイダーエレクトリック
モデルA97HC192
シリーズA9 PRO C120H DC
製品タイプ直流用小型回路遮断器(MCB)
定格電流(インチ)125A
極数1P
トリップ特性Cカーブ
定格電圧(直流)80 V DC
収容能力の限界(ICU)10 kA
定格絶縁電圧(Ui)500V
定格インパルス耐電圧(Uimp)6 kV
幅18mm
取り付けDIN Rail (35 mm)
動作温度-40 °C to +70 °C
標準IEC/EN 60947-2, GB/T 14048.2
