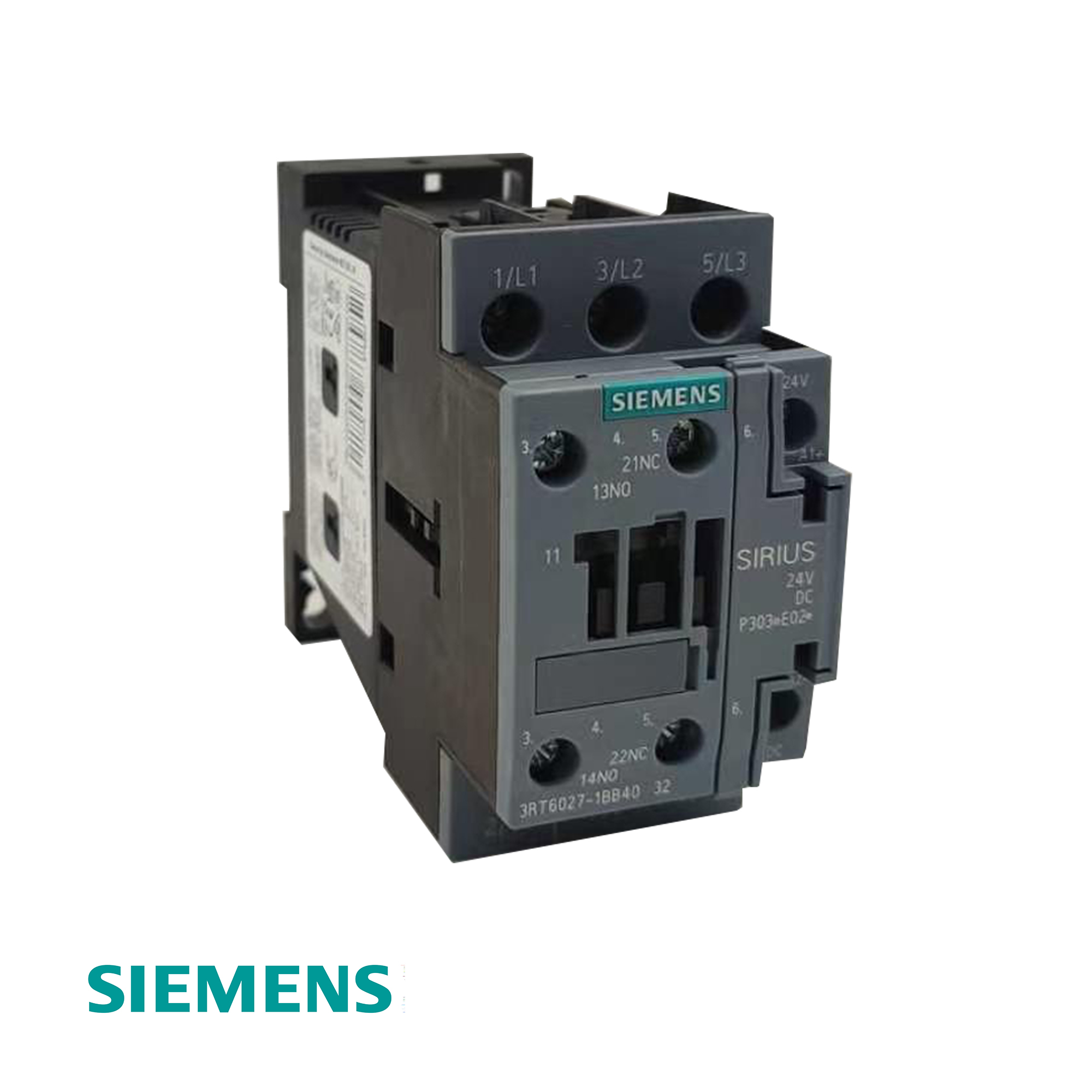

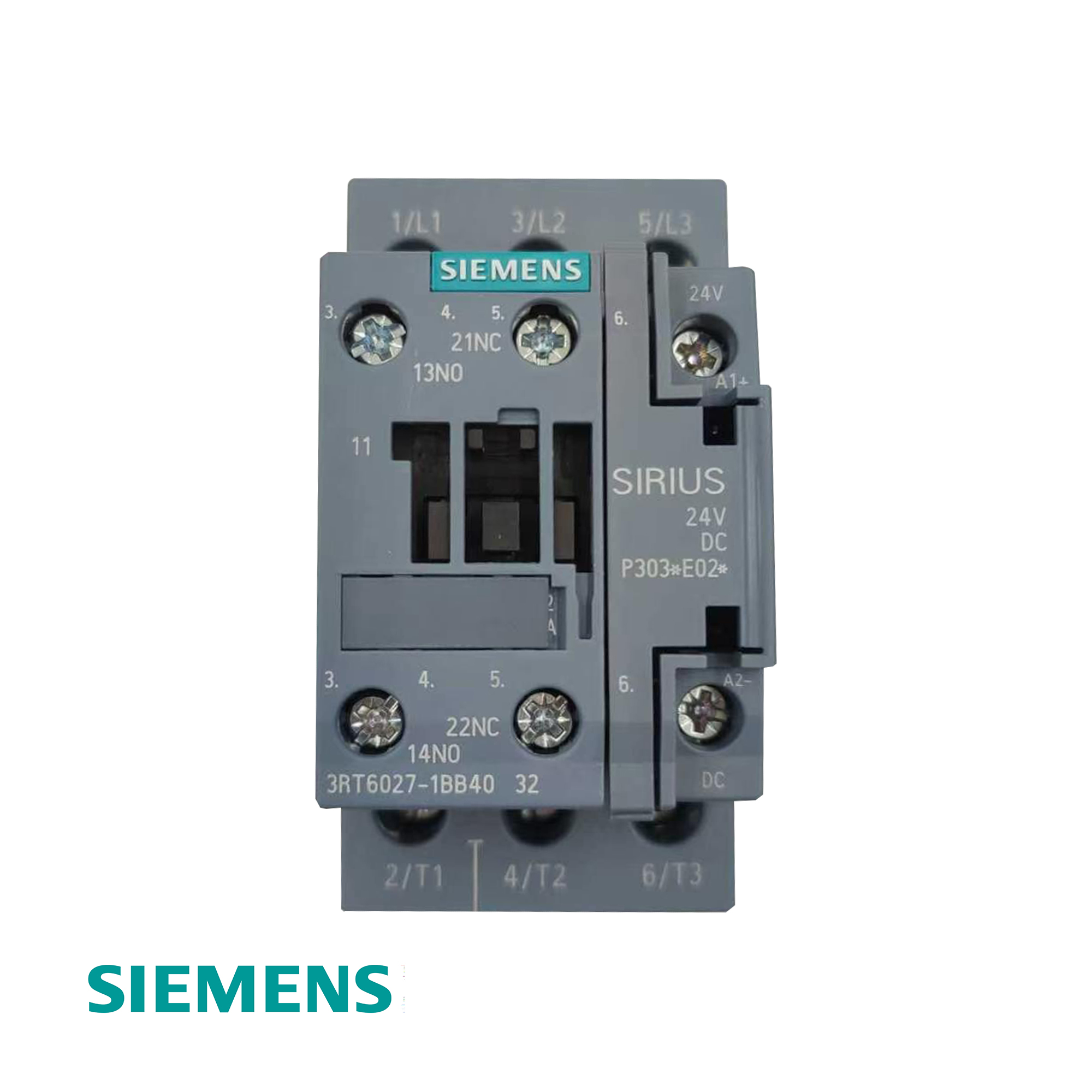

کنتاکتور قدرت سه پل زیمنس SIRIUS 3RT6027-1BB40، 32 آمپر AC-3، 15 کیلووات، 400 ولت 24 ولت DC، بوبین 1NO+1NC، ترمینال پیچی S0

سازنده: زیمنس
مدل: 3RT6027-1BB40
نوع: SIRIUS 3RT6 Power Contactor
جریان نامی: 32 A (AC-3 @ 400 V)
قدرت موتور: 15 kW @ 400 V AC
ولتاژ کویل: ۲۴ ولت جریان مستقیم
مخاطبین کمکی: ۱ عدد + ۱ عدد بدون ناخالصی
اندازه: اس۰

توضیحات محصول

The Siemens 3RT6027-1BB40 is a size S0 power contactor from the SIRIUS 3RT6 series, designed for reliable motor control and power switching in industrial automation applications. It is rated 32 A in AC-3/AC-3e category at 400 V AC, delivering a motor power of 15 kW at 400 V and 18.5 kW at 690 V. The contactor features a 24 V DC control coil with a power consumption of 5.9 W, enabling direct integration with PLC outputs and electronic control systems. It provides 3 normally open (NO) main contacts plus built-in 1 NO + 1 NC auxiliary contacts. The main circuit uses screw terminals and supports snap-on mounting onto 35 mm DIN rail. With a mechanical service life of 10 million operating cycles, 690 V rated insulation voltage, and 6 kV rated impulse withstand voltage, it is suitable for motor starting, pump control, fan control, compressor control, and star-delta starting applications.

ویژگی‌های استاندارد

  • 32 A / 15 kW AC-3 Rating: Rated operational current of 32 A in AC-3/AC-3e category at 400 V AC, suitable for direct-on-line starting of three-phase motors up to 15 kW at 400 V and 18.5 kW at 690 V.
  • 24 V DC Control Coil: Low-power DC coil with 5.9 W power consumption enables direct interface with PLC outputs and electronic control circuits without additional interface relays.
  • 3NO Main + 1NO+1NC Auxiliary Contacts: Three normally open main contacts plus built-in auxiliary contacts provide integrated signal contacts for status feedback and control interlocking.
  • Compact S0 Size: Space-saving 45 mm width design with screw terminals, ideal for control panels with limited mounting space.
  • High Insulation and Impulse Withstand: Rated insulation voltage of 690 V and rated impulse withstand voltage of 6 kV ensure dependable performance in industrial power circuits.
  • Extended Mechanical Durability: Mechanical service life of 10 million operating cycles ensures long-term reliability in frequent switching applications.
  • Snap-On DIN Rail Mounting: Compatible with screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022 for quick installation.

مشخصات فنی

پارامترارزش
تولیدکنندهزیمنس
مدل3RT6027-1BB40
سریسیریوس ۳RT6
نوع محصولکنتاکتور برق
اندازهاس۰
Rated Operational Current (AC-3 @ 400 V)۳۲ الف
Motor Power (AC-3 @ 400 V)۱۵ کیلووات
Motor Power (AC-3 @ 690 V)۱۸.۵ کیلووات
ولتاژ کنترل کویل۲۴ ولت جریان مستقیم
مصرف برق کویل5.9 W
مخاطبین کمکی۱ عدد + ۱ عدد بدون ناخالصی
تعداد قطب‌ها3
ولتاژ عایق نامی (UI)۶۹۰ ولت
ولتاژ تحمل ضربه نامی (Uimp)۶ کیلوولت
نوع اتصالپایانه‌های پیچی
نصبScrew and snap-on 35 mm DIN rail (DIN EN 50022)
ابعاد (عرض × ارتفاع × عمق)45 mm × 85 mm × 97 mm
وزن خالص0.558 kg
عمر مفید مکانیکی۱۰،۰۰۰،۰۰۰ چرخه عملیاتی
استانداردهاIEC/EN 60947-1, IEC 60947-4-1, IEC 60947-5-1
