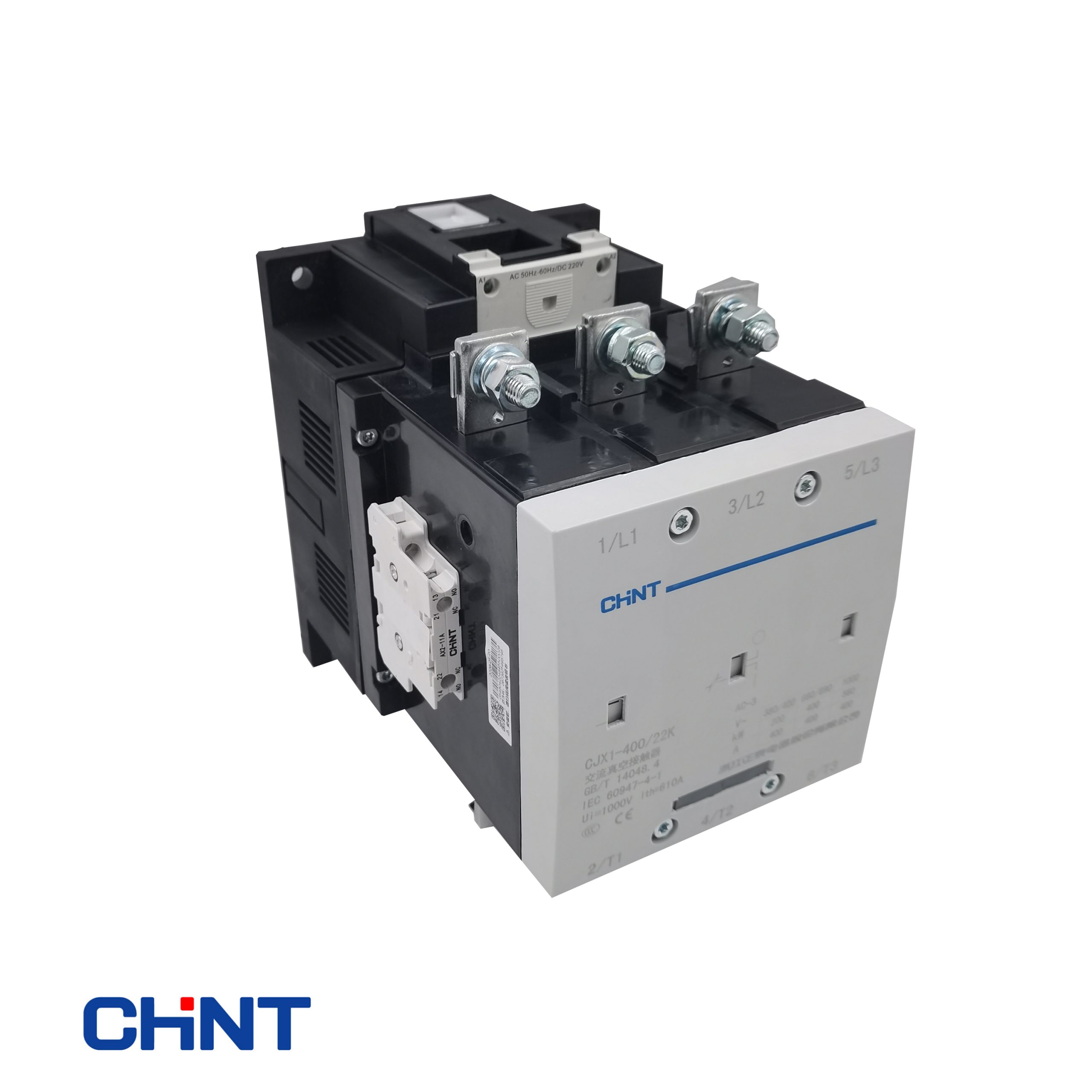

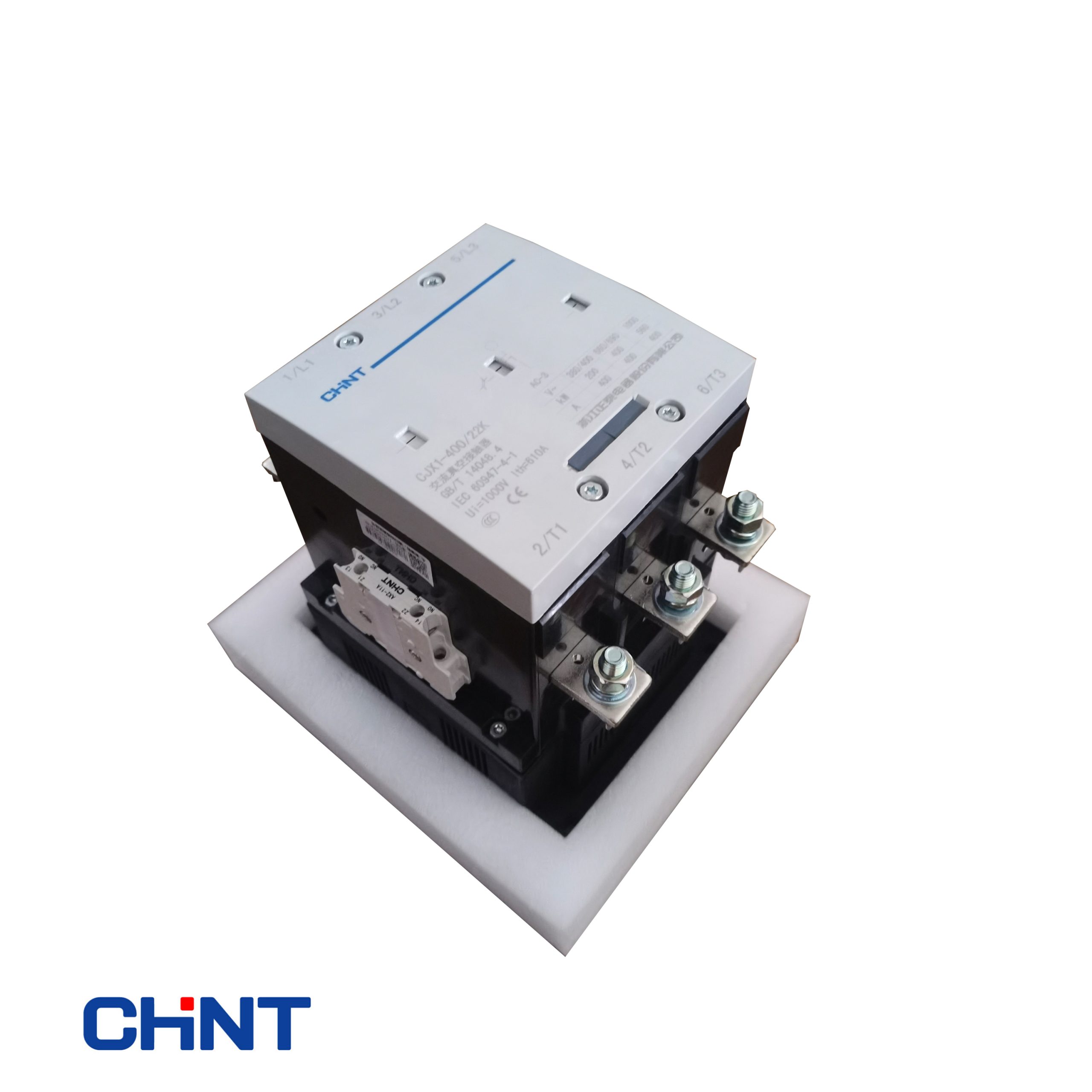

کنتاکتور خلاء AC CHINT CJX1‑400/22K – 400 آمپر، 3 پل، 200 کیلووات در 400 ولت (AC‑3)، کویل 220 ولت AC/DC

سازنده: CHINT Electric
مدل: CJX1-400/22K
نوع: کنتاکتور خلاء AC
جریان نامی: 400 A (AC-3)
ولتاژ نامی: ۱۰۰۰ ولت
ولتاژ کویل: 220 V AC/DC
تعداد قطب‌ها: 3
مخاطبین کمکی: ۲ عدد NO + ۲ عدد NC

توضیحات محصول

The CHINT CJX1-400/22K is a three-pole AC vacuum contactor from the CJX1-K series, designed for long-distance making and breaking of electrical circuits in demanding industrial environments. Rated at 400 A (AC-3) with a rated operating voltage up to 1000 V, it is suitable for controlling three-phase squirrel-cage motors up to approximately 200 kW at 380/400 V. The vacuum arc-extinguishing technology eliminates arc spraying and ensures reliable switching performance. Its electromagnetic system uses dual-coil energy-saving technology, reducing energy consumption by approximately 85% compared to conventional contactors, while also suppressing surge and eliminating electromagnetic noise. The drawer-type coil block allows direct replacement without dismantling the main circuit wiring. Typical applications include mining, smelting, petroleum extraction, chemical, military, and other harsh or explosive environments.

ویژگی‌های استاندارد

  • Vacuum Arc Extinguishing Technology: Eliminates arc spraying and ensures reliable making and breaking of high-current circuits in demanding environments.
  • Dual-Coil Energy-Saving System: Reduces energy consumption by approximately 85% compared to traditional contactors while suppressing surge and eliminating electromagnetic noise.
  • AC/DC Coil Compatibility: Wide applicable power supply allows interchangeable AC and DC coils, with 50 Hz and 60 Hz interchangeable for AC operation.
  • Drawer-Type Coil Block: The coil block for CJX1-225~500/22K models can be directly drawn out for replacement without removing main circuit wiring.
  • High Short-Circuit Breaking Capacity: Rated short-circuit breaking capacity of 3200 A (AC-3) ensures robust protection against fault currents.
  • Extended Electrical and Mechanical Life: Electrical life of 600,000 operations (AC-3) and mechanical life of 3,000,000 operations ensure long-term reliability.
  • Wide Ambient Temperature Range: Operates reliably from -25 °C to +60 °C, suitable for harsh industrial and explosive environments.

مشخصات فنی

پارامترارزش
تولیدکنندهCHINT Electric
مدلCJX1-400/22K
سریCJX1-K
نوع محصولکنتاکتور خلاء AC
Rated Operating Current (AC-3)۴۰۰ الف
Rated Operating Voltage (Ue)۱۰۰۰ ولت
ولتاژ عایق نامی (UI)۱۰۰۰ ولت
تعداد قطب‌ها3
مخاطبین کمکی۲ عدد NO + ۲ عدد NC
ولتاژ کویل220 V AC/DC
فرکانس نامی۵۰/۶۰ هرتز
Short-Circuit Breaking Capacity (Icn, AC-3)3200 A
Enclosure Protection Classآی پی ۲۰
Electrical Life (AC-3)600,000 operations
زندگی مکانیکی3,000,000 operations
دمای محیط-25 درجه سانتیگراد تا +60 درجه سانتیگراد
استانداردهاکمیسیون مستقل انتخابات ۶۰۹۴۷-۴-۱
