Modbus vs Profinet vs EtherNet/IP: Which PLC Communication Protocol Should You Use?

Choosing the wrong PLC communication protocol costs more than time. It leads to failed device handshakes, expensive hardware replacements, and delayed commissioning; especially on industrial projects in Russia, Poland, and Eastern Europe.

The PLC Communication Protocol refers to the “language” of your Programmable Logic Controller (PLC). This language helps the PLC to connect with other hardware units. It describes the process of how a message is formulated, sent, checked and transmitted between the PLC and other devices.

Common examples of PLC communication protocols are Modbus, Profinet, and EtherNet/IP. These protocols are used for different levels of speed, real-time control, and vendor compatibility.

This guide compares Modbus RTU TCP, Profinet IO, and EtherNet/IP across five practical dimensions. It will help you decide between Modbus vs Profinet PLC communication components for your system.

What are the Three PLC Communication Protocols?

PLC Communication Protocols are the type of communication protocols that are utilized for allowing PLCs to exchange information with other industrial equipment. These include other PLCs, sensors, actuators, HMIs, drive controllers, SCADA, remote I/O devices, etc.

Here are the three common protocols and what each one does:

Modbus RTU / Modbus TCP

Modbus RTU TCP was first introduced in 1979 and is now the most commonly implemented fieldbus protocol in automation technology. The Modbus RTU protocol can be transmitted via RS-485 serial connections while Modbus TCP uses standard Ethernet (IEEE 802.3). It is free from licensing fees and can communicate with all types of devices.

Profinet IO

Standardized under IEC 61158, Profinet IO is the dominant industrial Ethernet protocol in European manufacturing. It runs in three modes: standard TCP/IP, Real-Time (RT), and Isochronous Real-Time (IRT). Profinet IRT achieves cycle times below 1 ms.

IRT is essential for motion control, servo synchronization, and high-precision assembly lines.

EtherNet/IP

EtherNet/IP was introduced in 2001 by Rockwell Automation, whereby CIP communication runs over standard Ethernet. It is the default protocol for PLC communication in North America when Allen-Bradley PLC or Rockwell PLC are used in plants.

What are the Differences Among the Modbus vs Profinet vs EtherNet/IP Protocols?

Selecting the right Modbus vs Profinet or EtherNet/IP configuration depends on five factors:

1. Speed

Profinet IO leads on speed. It operates on full-duplex Ethernet at layer 2 of the OSI model, and is possible to get a response in less than 1ms. On the other hand, EtherNet/IP uses UDP implicit messaging for fast updates, while Modbus RTU TCP operates using client-server transactions with latency.

2. Real-Time Performance

Profinet IRT is the only fully deterministic option in this group. EtherNet/IP reaches near-deterministic performance through CIP’s producer-consumer model. On the other hand, Modbus TCP is non-deterministic and is not suited for servo synchronization or tight-loop control.

3. Cost

Modbus RTU TCP carries the lowest entry cost. It runs on standard RS-485 cables or unmanaged Ethernet switches with no licensing fees. Meanwhile, EtherNet/IP also uses standard Ethernet hardware but may need managed switches with QoS in complex topologies. On the other hand, Profinet IO IRT requires ASIC-equipped switches and end-devices. This is a real cost factor on budget-constrained projects.

4. Compatibility

Modbus RTU TCP supports the broadest device range. This is evident in over 40 years of installed base covers sensors, drives, meters, and HMIs across virtually every vendor. Profinet IO centres on Siemens S7 hardware and is the native protocol for S7-300, S7-400, S7-1200, and S7-1500 PLCs.

5. Configuration Difficulty

Modbus requires minimal setup and is understood by field technicians worldwide. However, Profinet IO uses GSDML device description files and requires Siemens TIA Portal. On the other hand, EtherNet/IP uses EDS files managed through RSLogix or Studio 5000. This makes it more accessible than Profinet for non-Siemens engineers.

Summary of Specifications:

The table below summarizes the side-by-side comparison of each PLC communication component and their specifications:

Which PLC Communication Protocol Fits Your Project?

This section outlines how to determine the right PLC communication protocol for your project based on their uses:

When to Use Modbus RTU/TCP

Use Modbus RTU TCP for:

• Scada systems, energy management, and HMI data logging.
• A device base that spans multiple vendors or includes legacy hardware over a decade old.
• Budget constrained projects and when scan times above 50 ms are acceptable.

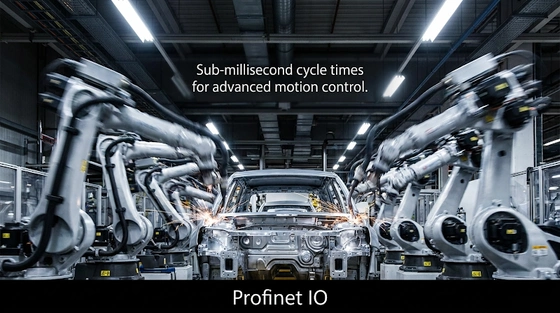

When to Use Profinet IO

Use Profinet IO in the following instances:

• Profinet IO is the standard for Siemens S7 PLCs. This is common in German, Russian, and Polish OEM equipment.
• Use it when motion control, servo drives, or sub-10 ms cycle times are required.
• Required for PROFIsafe functional safety integration per IEC 61784-3.

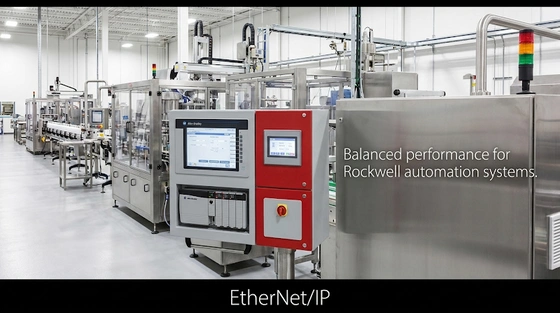

When to Use EtherNet/IP

Use Ethernet UP when:

• It fits plants built on Rockwell Automation or Allen-Bradley PLCs.
• It supports CIP Safety (IEC 61784-3) and integrates well with North American factory automation.
• You need a balance of performance, cost, and system flexibility.

Decision Flowchart: Which Protocol Should You Use?

Here is a decision flowchart that will further help you reach a decision:

Conclusion

PLC communication protocols are the “language” that makes industrial automation systems talk to each other reliably. These components are mainly used for monitoring processes, controlling motors, connecting PLCs for operation, integrating different brands of equipment, and communicating across various networks.

Choosing between Modbus vs Profinet or Ethernet/IP depends on the control architecture, cycle-time requirements, and budget.

Use Modbus RTU TCP for cost-effective legacy integration. Use Profinet IO for Siemens-based, high-speed European systems. Use EtherNet/IP for Rockwell-centered North American plants.
