VFD Braking Resistor Sizing Guide: How to Calculate and Select the Right Resistor

A breaking resistor is known to safeguard industrial machines from overvoltage faults. It absorbs the burst of regenerative energy that a motor produces during deceleration. High-inertia product lines keep running rather than tripping out mid-cycle thanks to the resistor’s ability to vent the energy as heat.

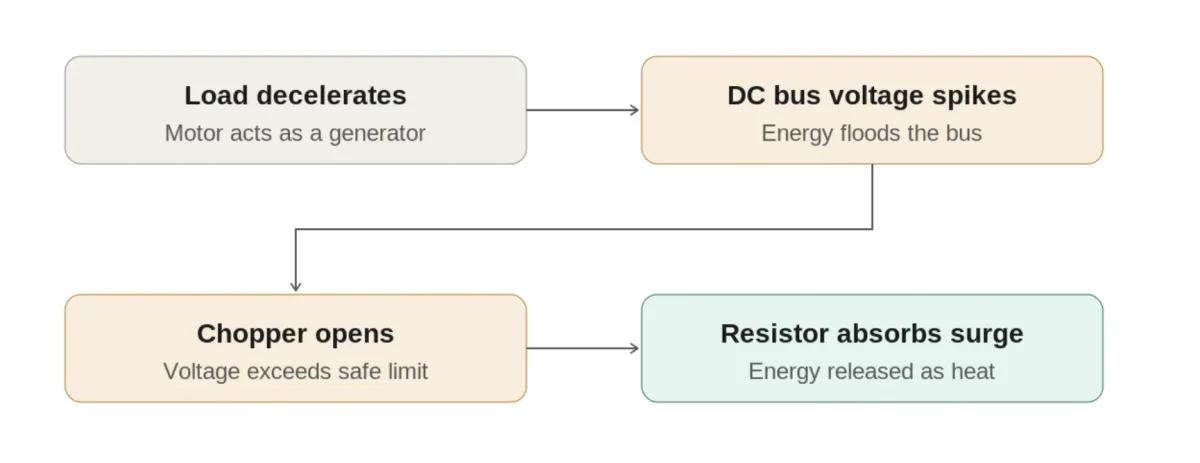

Why High-Inertia Loads Trigger Overvoltage Faults

As a VDF forces a high-inertia load like a heavy conveyor to decelerate faster than its usual cost-to-stop time, the momentum of the motor itself flips it into a generator. What happens next is that the regenerated electricity flows straight back into the DC bus present in the drive.

When a VFD forces a high-inertia load, such as a crane hoist, a large fan, or a heavy conveyor, to decelerate faster than its natural coast-to-stop time, the motor’s own momentum flips it into a generator. That regenerated electricity floods straight back into the drive’s DC bus.

If left unchecked, the spike of the voltage exceeds the safe limits of the drive and triggers an overvoltage fault. A properly sized VDF braking resistor in conjunction with the internal chopper transistor of the drive gives that surge somewhere safe to go.

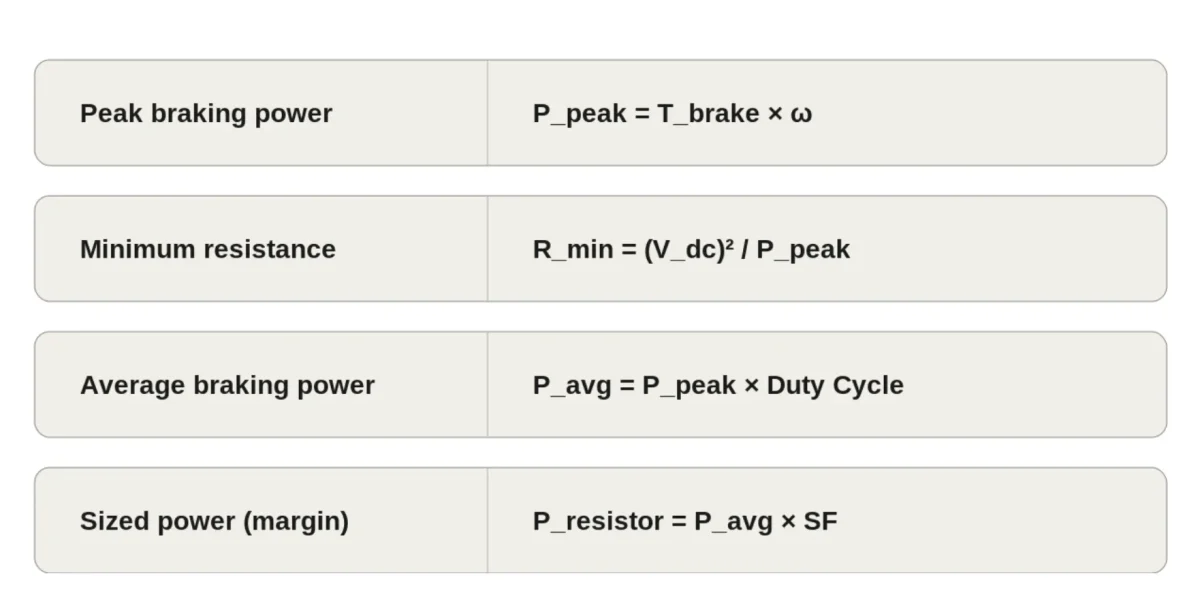

Formula Reference Chart for Engineers

Below are some equations that you can use to calculate and chooe the right resistor.

Where:

T_brake = the braking torque required in Nm

omega = motor’s angular velocity in rad/s

V_dc = the activation threshold of the chopper, arond 780V DC on lines ranging from 400 to 480V.

Step-by-Step VFD Braking Resistor Sizing and Calculation

Step 1: Calculate peak braking power

The first step is to figure out the maximum mechanical power that can be generated at the point of deceleration. If it’s cranes and hoists, you’ll want to consider both the mass’s kinetic energy and the gravitational load pulling against it.

Step 2: Find the minimum resistance

Now apply  R_min = (V_dc)^2 / P_peak using the chopper’s activation voltage. Below this value, the current passing through the loop exceeds the maximum handling capacity of the chopper resistor, causing it to wreck.

Step 3: Work out duty cycle and average power

Resistors heat up during braking and cool during steady-state running, so duty cycle (braking time over total cycle time) sets how much continuous wattage the unit needs to dissipate.

Step 4: Build in a safety margin

Use a factor of 1.2 to 1.3 for standard loads such as pumps and fans. A 1.5 or above factor is better for heavy, cyclic loads such as hoists and cranes, since airflow restrictions and ambient heat eat into the margins quickly.

Practical Sizing Example: Industrial Conveyor

Let’s say you ahve a heavy conveyor that’s running on a 400V VFD. It whole system has to absorb arond 30 kW of peak cover for a minimum of 6 seconds out of every 60.  And it needs to do this with 780V DC on the internal chopper switch.

Here are three calculations to help you choose the right hardware

1. Target Resistance: Take your squared activation voltage and divide it by your peak power surge:

R = (780^2)/(30000) = 20.28 Ω

A 20.28 ohms or slightly above rating ensures the component won’t pull too much current. It also reduces the chances that the internal transistor of the VFD will burn out.

2. Average Power: The conveyor only brakes for 6 seconds out of a 60-second loop. In other words, it runs on a 10% duty cycle. You can calculate the continuous heat generated on average, which comes to:

30 kW × 0.10 = 3 kW

3. Thermal Safety Margin: Now take the average power and multiply it by a 1.3 safety factor:

3 kW × 1.3 = 3.9 kW

Doing so helps insulate the system against hot control cabinets

So if we talk about finalizing your choice, an ohmic value of 20.28 ohms must be there on your sourced hardware. Don’t forget that it should be paired with a continuous thermal capacity rounded up to at least 4 kW for safe headroom.

Engineering Pitfalls to Avoid

Because the overcurrent has no place to go, going below R_min is a quick way to wreak a chopper. In case of underestimating duty cycle, things play out slower as the core overheats until it fails.Mounting a high-wattage unit inside a sealed cabinet undercuts the whole design, since these components need open air to shed heat, not a closed box that traps it.
